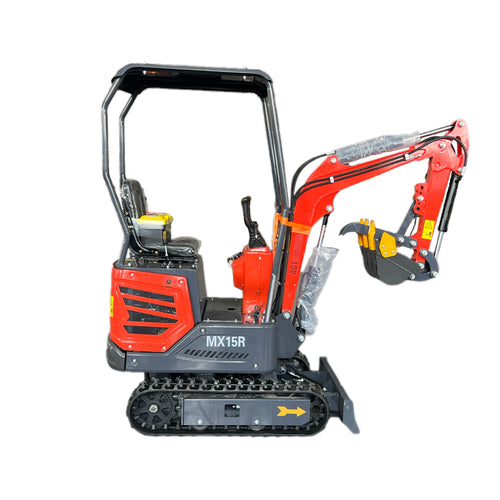

Designed for small to medium-sized projects. With a compact design, 940 kg operating weight, and a digging depth of 5.8 feet, the AGT MX15R delivers reliable power and efficiency in tight workspaces like farms, gardens, orchards, and construction sites. Powered by a 9.8 kW gasoline engine, the MX15R features a 3-cylinder system, rubber tracks, and a reinforced structure built for daily use.
The hydraulic blade and side-swing boom provide versatility, while the factory-installed manual thumb and auxiliary line make it attachment-ready. Ideal for augers, rakes, tilt buckets, grapples, and more.
Technical Data:
- Operating Weight: 940 kg
- Engine: 9.8 kW gasoline engine
- Max Horsepower: 13.1 hp
- Fuel Tank: 6.6 L (92# Gasoline)
- Hydraulic Tank: 23 L
- Bucket Capacity: 0.025 m³
- Travel Speed: 0–3 km/h
- Climbing Ability: 30%
- Turning Speed: 10 rpm
- Bulldozer Width/Height: 1000 mm / 180 mm
Working Range:
- Max Digging Height: 2583 mm
- Max Unloading Height: 1850 mm
- Max Digging Depth: 1769 mm
- Max Vertical Excavation Depth: 1600 mm
- Max Excavation Radius: 3041 mm
- Min Gyration Radius: 1584 mm
- Min Tail Radius: 849 mm
- Max Blade Lift: 288 mm
- Max Blade Dig Depth: 146 mm
Dimensions:
- Overall Length: 3200 mm
- Overall Width: 936 mm
- Overall Height: 2210 mm
