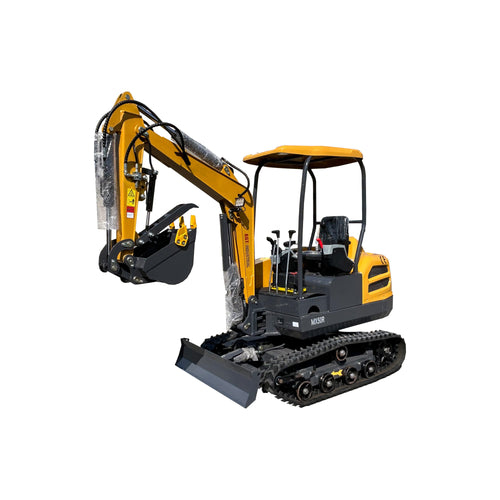

Built for tougher jobs in compact spaces. The AGT-MX50R Mini Excavator weighs in at 1100 kg and delivers serious performance with a 0.23 m³ bucket and 8.8 kN of breakout force. Perfect for landscaping, trenching, farmwork, and small-scale construction. Powered by a Rato 825 gasoline engine producing 28 horsepower, this 2-cylinder air-cooled machine is built for reliability and maneuverability.
With 30% climbing ability, a side-swing boom, and a factory-installed bulldozer blade, the MX50R offers smooth control, easy transport, and outstanding digging capabilities in all terrains.
Technical Data:
- Operating Weight: 1100 kg
- Engine: Rato 825 (2-cylinder, air-cooled gasoline)
- Max Horsepower: 28 hp
- Max Power: 21 kW @ 3600 rpm
- Fuel Tank: 28 L (92# Gasoline)
- Hydraulic Tank: 20 L
- Bucket Capacity: 0.23 m³
- Travel Speed: 0–2.0 km/h
- Climbing Ability: 30%
- Turning Speed: 9.8 rpm
- Max Bucket Digging Force: 8.8 kN
- Max Arm Digging Force: 6.0 kN
- Bulldozer Width/Height: 1316 mm / 247 mm
Working Range:
- Max Digging Height: 2755 mm
- Max Unloading Height: 2180 mm
- Max Digging Depth: 1983 mm
- Max Vertical Excavation Depth: 1983 mm
- Max Excavation Radius: 3211 mm
- Min Gyration Radius: 2011 mm
- Min Tail Radius: 1247 mm
- Max Blade Lift: 251 mm
- Max Blade Dig Depth: 340 mm
Dimensions:
- Overall Length: 2812 mm
- Overall Width: 1140 mm
- Overall Height: 2400 mm
