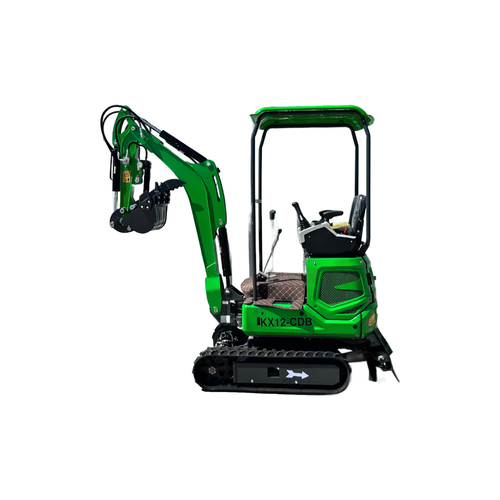

The AGT-KX12-CD(B) is a side-swing capable mini excavator powered by a reliable 13.5 HP Briggs & Stratton gasoline engine. Built for maneuverability and light construction work, it offers increased digging reach, a 0.03 m³ bucket, and a compact design suited for tight-access job sites. With fan cooling, dual blade lifting functions, and a simple hydraulic system, the KX12-CD(B) delivers essential performance in an affordable, easy-to-maintain package.

Technical Data

• Working Weight 900 kg

• Bucket Capacity 0.03 m³

• Travel Speed 0–1.8 km/h

• Climbing Ability 11%

• Maximum Digging Height 2900 mm

• Maximum Unloading Height 2100 mm

• Maximum Digging Radius 3250 mm

• Minimum Turning Radius 1470 mm

• Tail Minimum Turning Radius 800 mm

• Maximum Lifting Height of Bulldozer 190 mm

• Maximum Digging Height of Bulldozer 190 mm

• Side Swing Yes
• Engine Brand B&S

• Maximum Power 13.5 HP

• Cooling Method Fan Cooling

• Fuel Type GasolineRated Set Pressure 16 MPa

• Main Pump Maximum Flow 21.6 L/minOverall Length 3240 mm

• Overall Width 990 mm

• Overall Height 2200 mm

• Wheelbase 930 mm

• Track Gauge 810 mm

• Bulldozer Width 950 mm

• Bulldozer Height 235 mm
