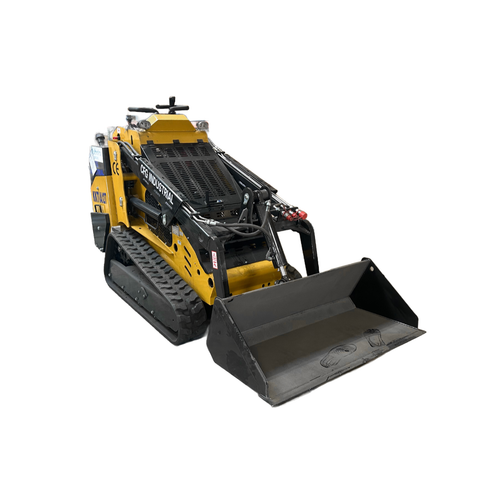

The AGT KKT27 is a compact yet powerful tracked loader powered by a Kubota D1105 diesel engine, designed for tight-access construction, landscaping, and ag-related tasks. With a sturdy 0.2 m³ bucket, robust lifting performance, and travel speeds up to 4.7 km/h (2.9 mph), this loader strikes the ideal balance between maneuverability and productivity.

Technical Data

• Working Weight 1,300 kg (2,866 lb)

• Bucket Capacity 0.2 m³ (0.079 yd³)

• Travel Speed (High) 4.7 km/h (2.9 mph)

• Maximum Lifting Force 400 kg (882 lb)

• Maximum Working Height 2,695 mm (106.1 in)

• Maximum Unloading Height 1,625 mm (64.0 in)

• Wheelbase 1,055 mm (41.5 in)

• Ground Clearance 230 mm (9.1 in)

Dimension

• Overall Length 2,752 mm (108 in)

• Overall Width 1,040 mm (41 in)

• Overall Height 1,610 mm (63 in)

• Bucket Width 1,040 mm (41 in)

• Body Width 954 mm (37.6 in)

Engine

• Engine Model Kubota D1105 Diesel

• Max Horsepower 27 HP

• Cooling Method Water-cooled

• Fuel Tank Capacity 35 L (9.2 gal)
• Hydraulic Oil Tank Capacity 35 L (9.2 gal)
  Fuel Type Diesel
