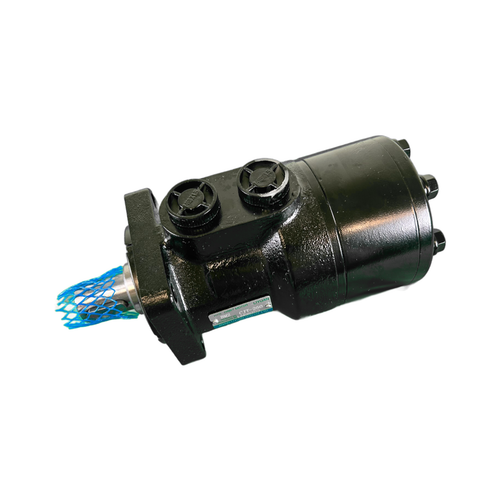

Designed for robust and efficient performance, the CJT-250 Orbital Motor is ideal for applications requiring reliable torque and smooth operation.
Technical Data:
-
Displacement: 250 cc/rev
-
Max Flow Rate: 15.8 GPM (continuous), 20 GPM (intermittent)
-
Max Speed: 240 RPM (continuous), 300 RPM (intermittent)
-
Max Pressure: 1595 PSI (continuous), 2900 PSI (intermittent)
-
Torque Output: 3403 in-lbs (continuous), 4844 in-lbs (intermittent)
-
Shaft Type: 1-inch straight key
-
Port Size: 1/2-inch NPT
-
Mounting: 2-bolt flange
-
Weight: Approximately 20.24 lbs
