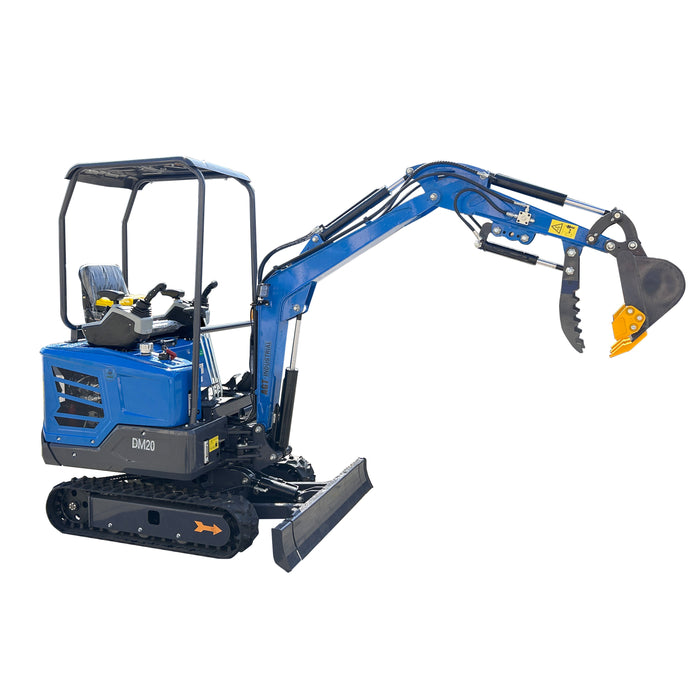

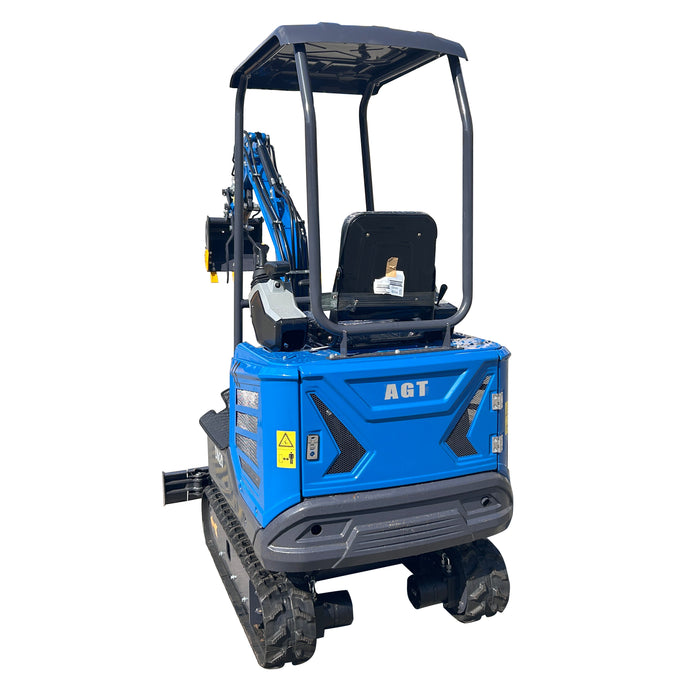

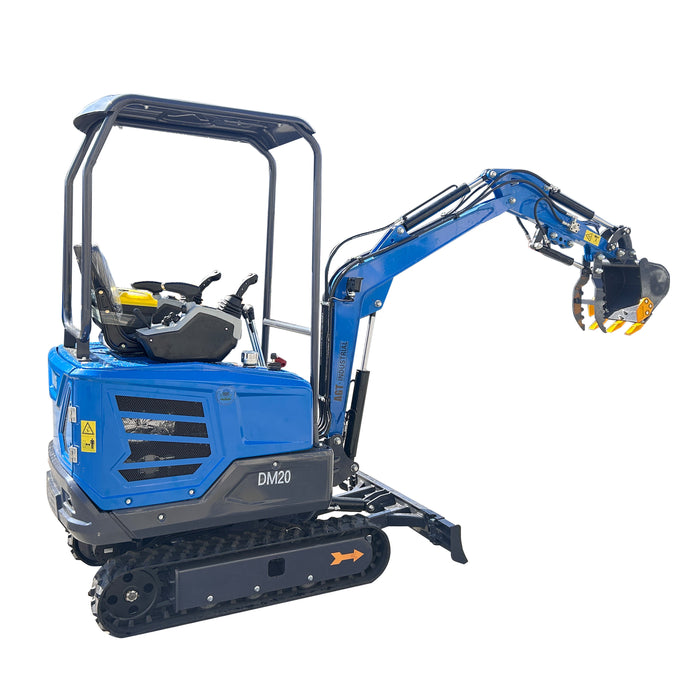

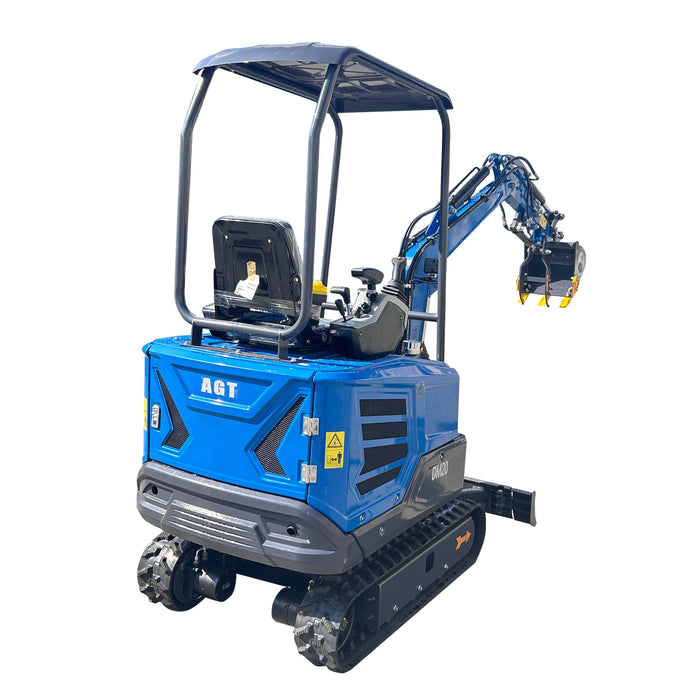

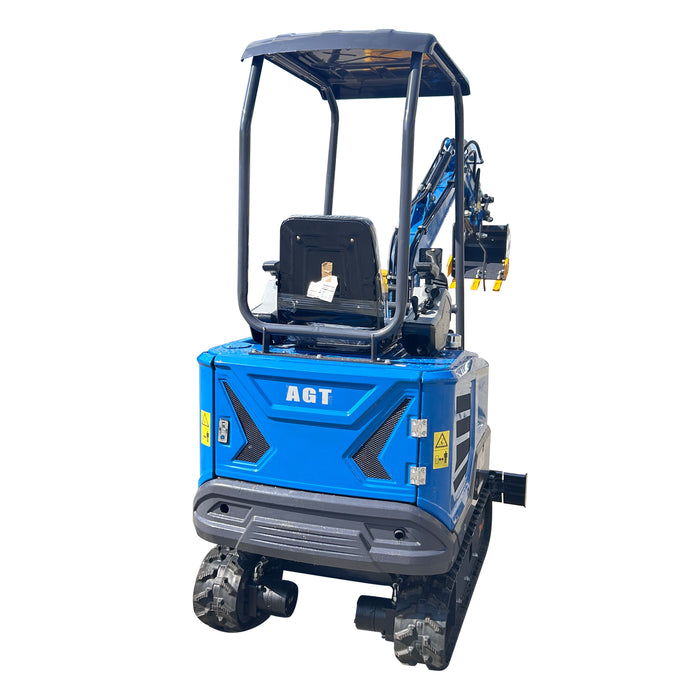

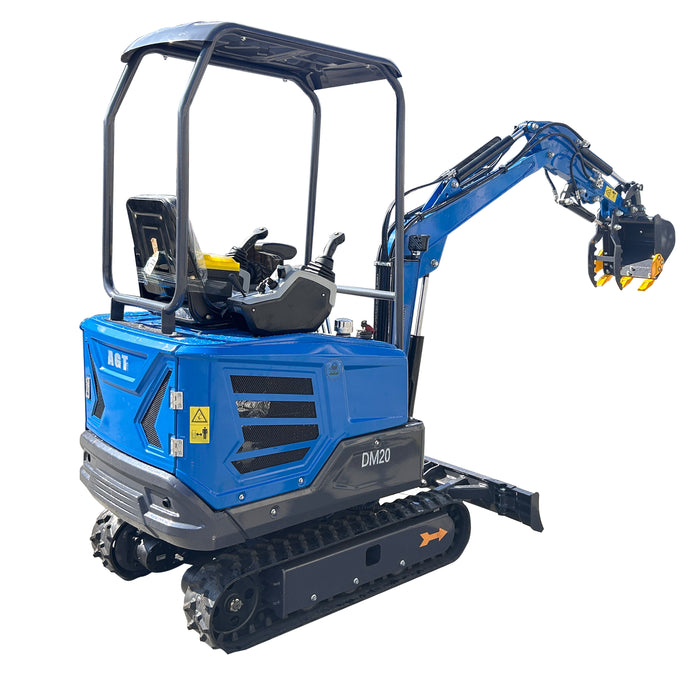

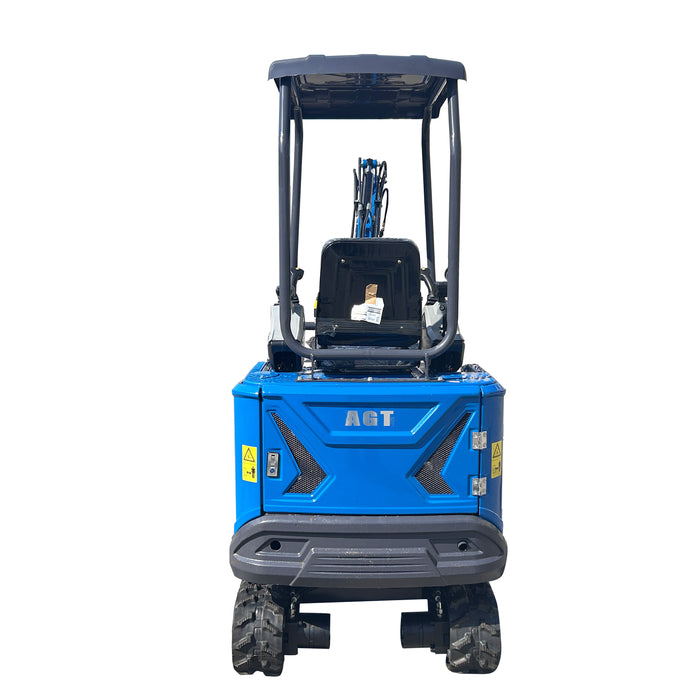

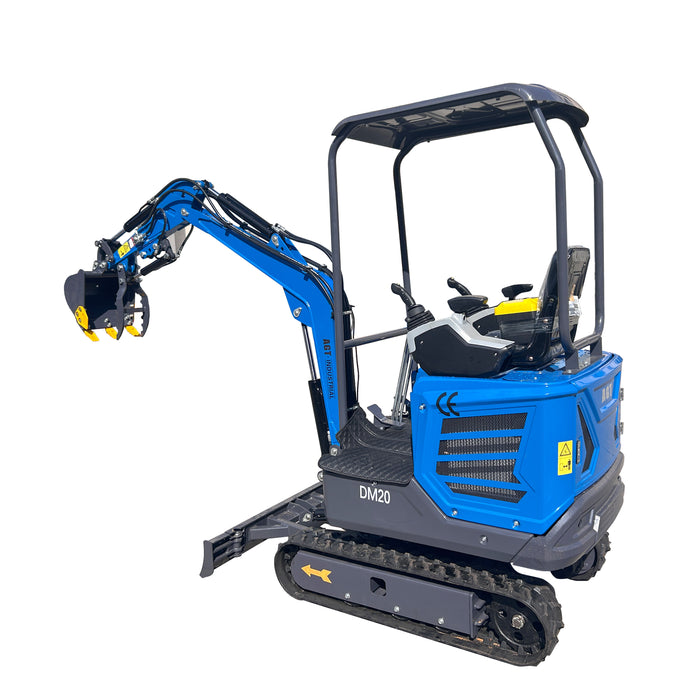

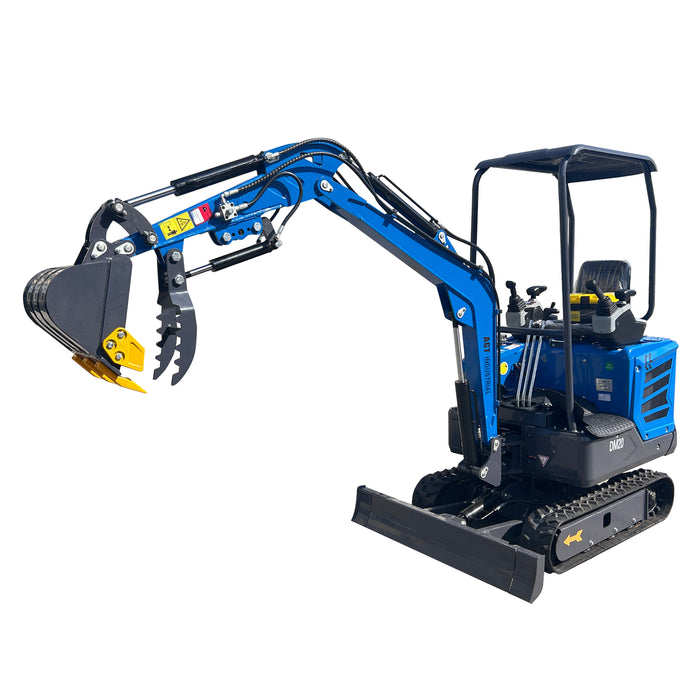

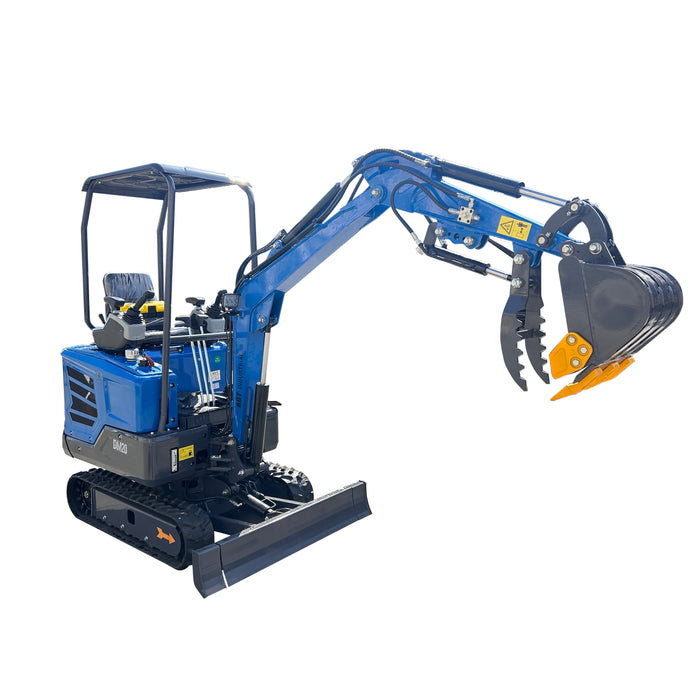

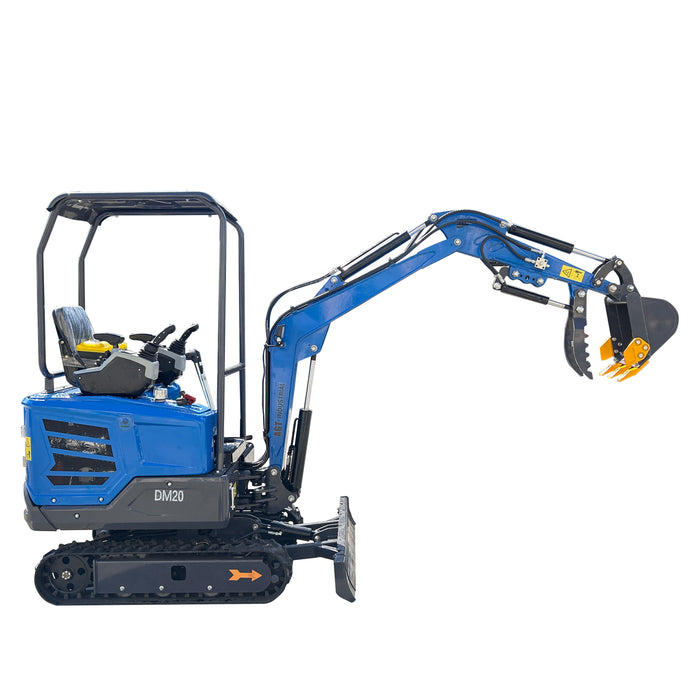

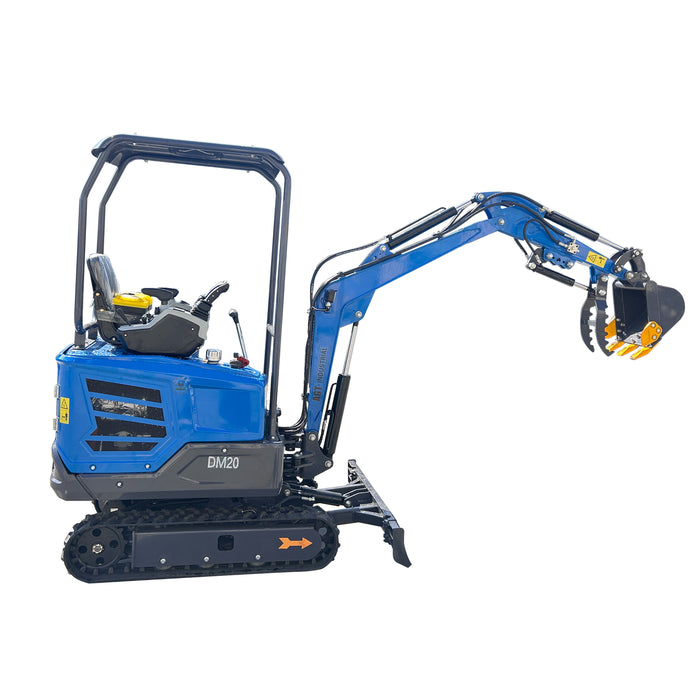

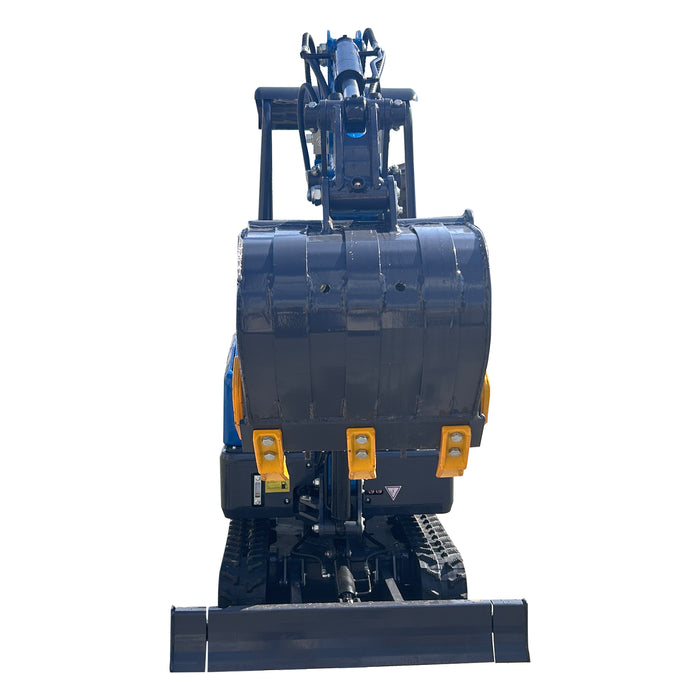

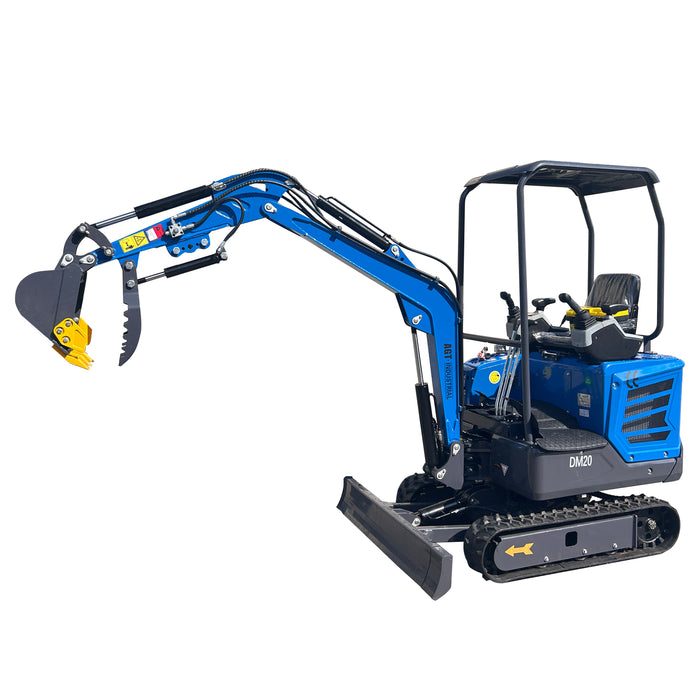

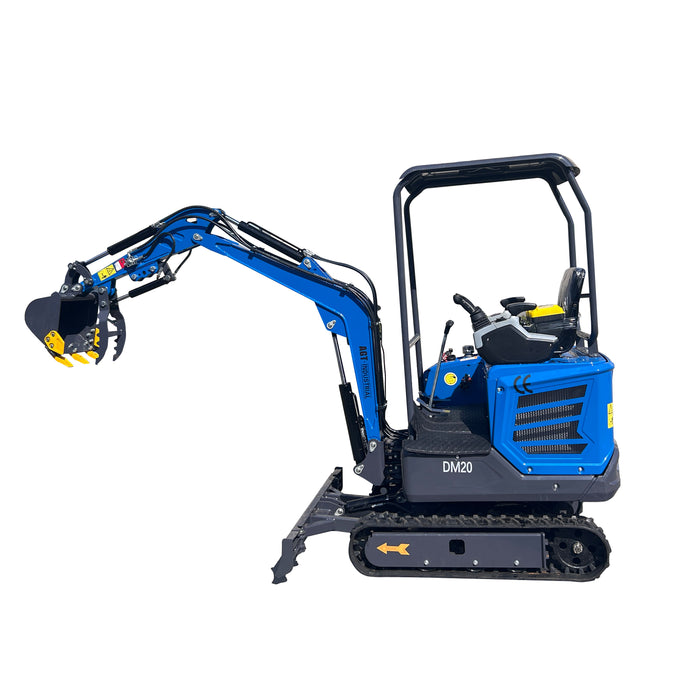

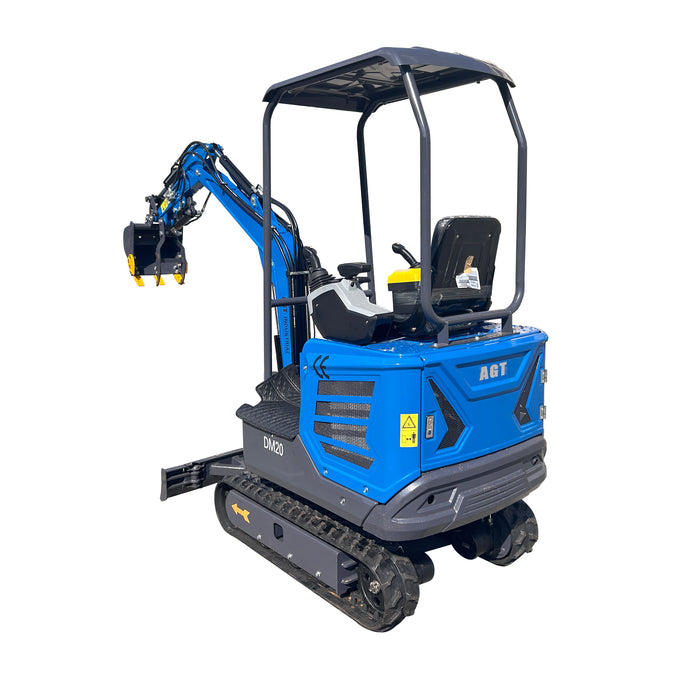

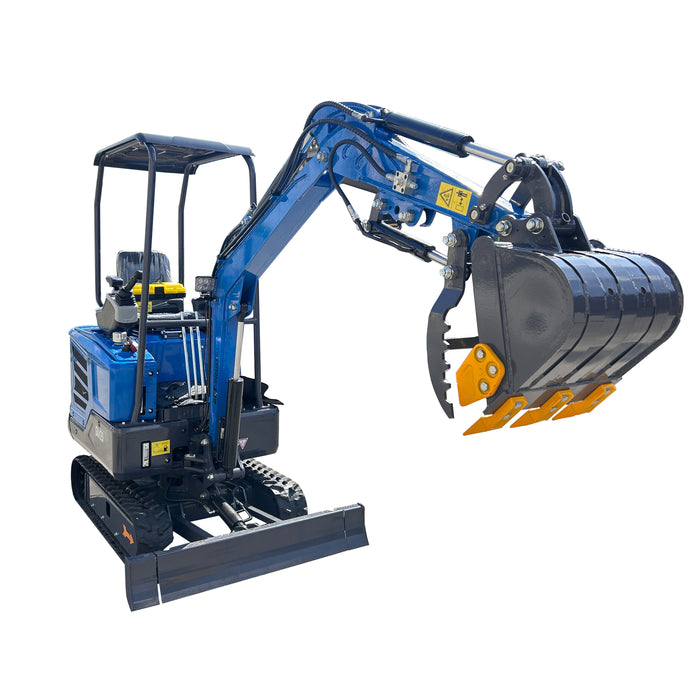

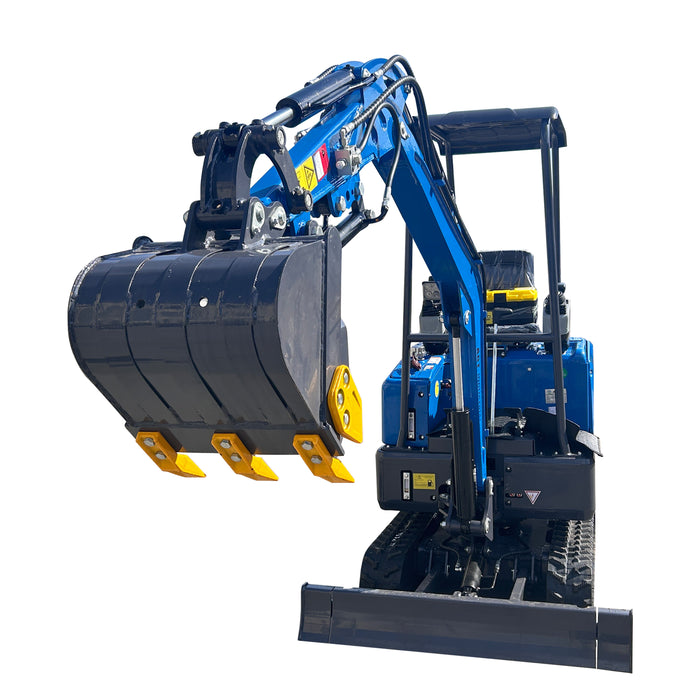

1.3 Ton, Kubota Diesel Engine Mini Excavator | AGT-DM20

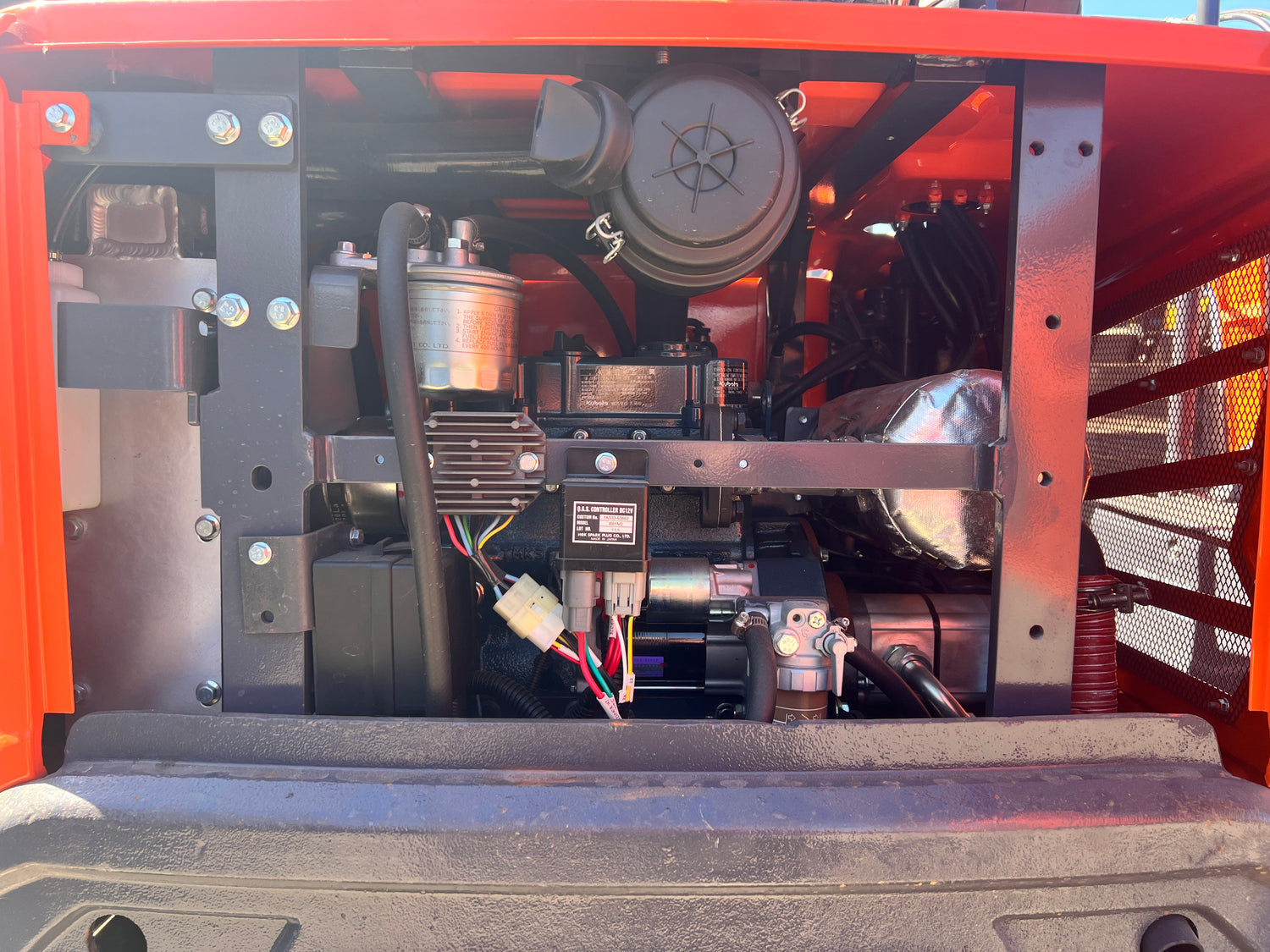

Designed for medium-sized projects. With a compact design, 1.3-ton operating weight, and a digging depth of 7.4 feet, the AGT DM20 delivers reliable power and efficiency in tight workspaces like farms, gardens, orchards, and construction sites. Powered by a Kubota D722 diesel engine, the DM20 features a 3-cylinder water-cooled system, expandable tracks, and a reinforced structure built for daily use.

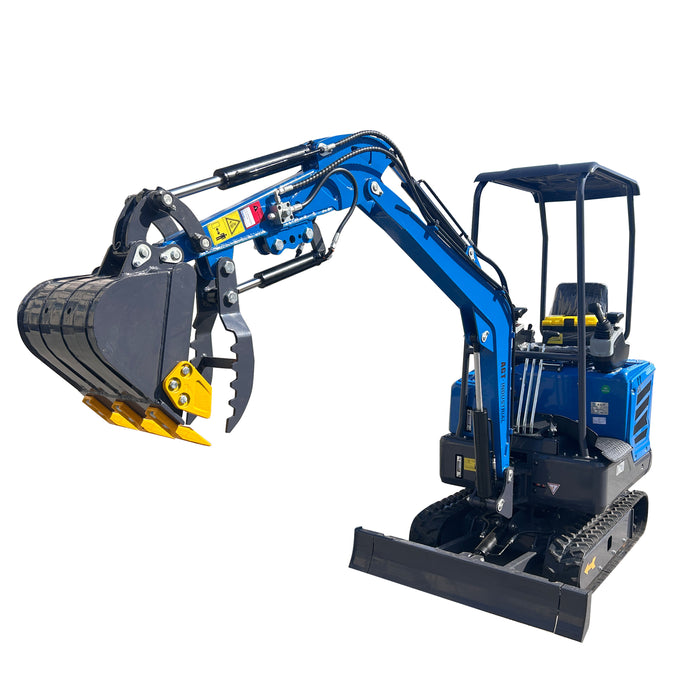

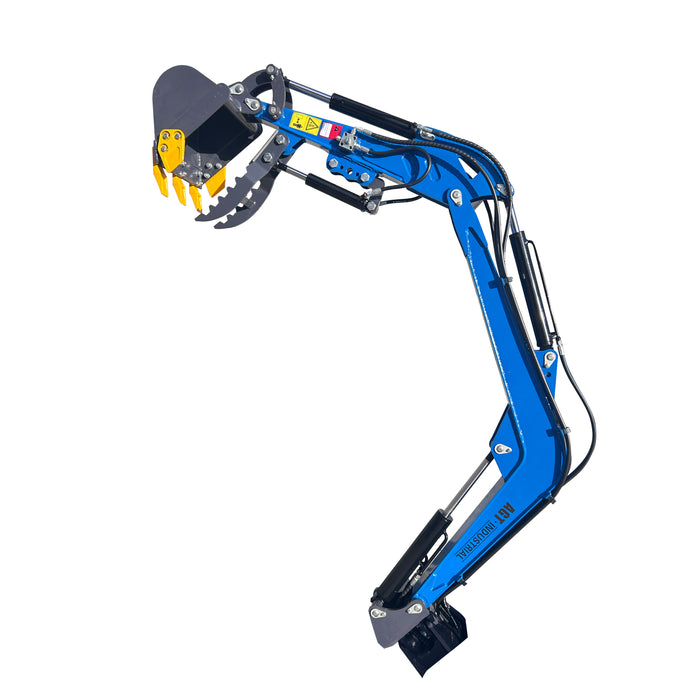

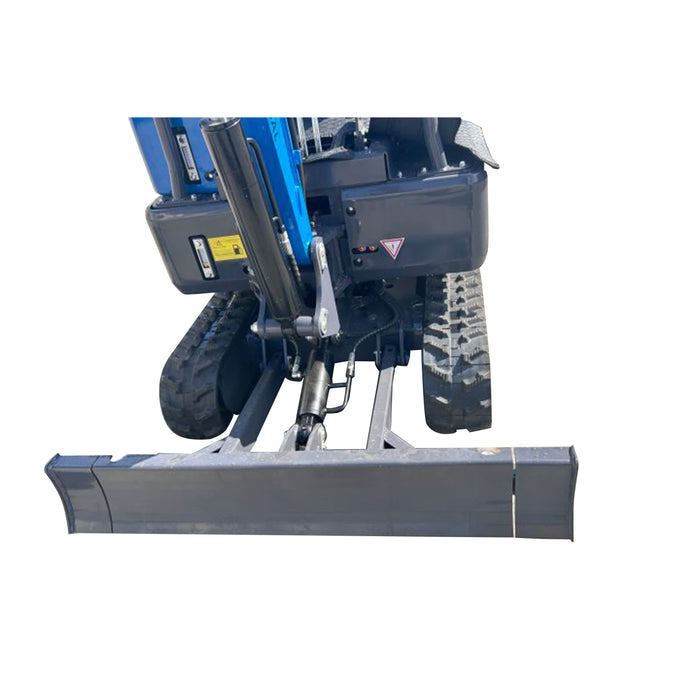

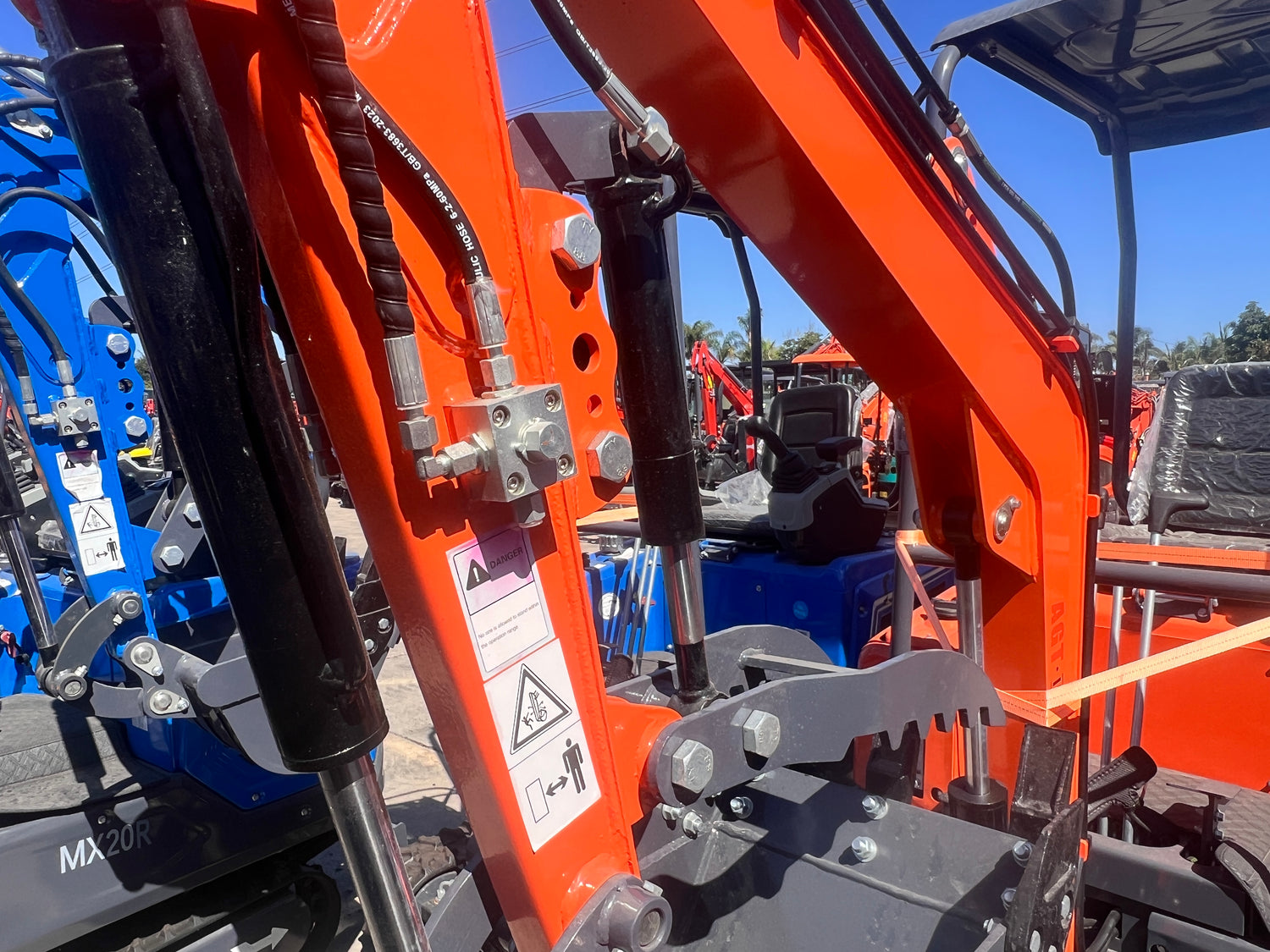

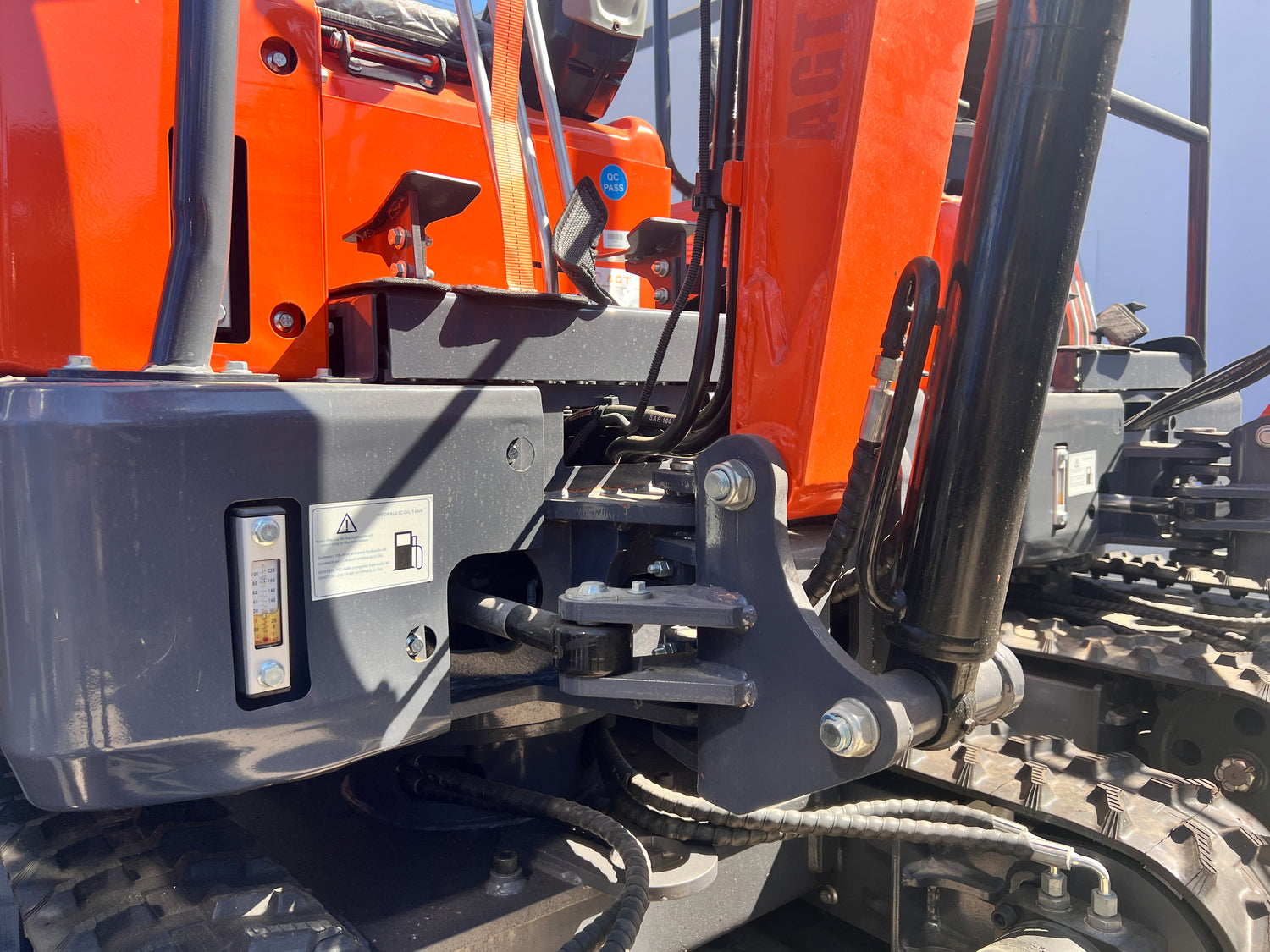

The hydraulic blade and side-swing boom provide versatility, while the factory-installed hydraulic thumb and auxiliary line make it attachment-ready. Ideal for augers, rakes, tilt buckets, grapples, and more.

Technical Data:

• Operating Weight: 1300 kg

• Engine: Kubota D722 (3-cylinder, water-cooled diesel)

• Max Horsepower: 13.7 hp

• Max Power: 10.2 kW @ 2500 rpm

• Fuel Tank: 8.7 L (92# Diesel)

• Hydraulic Tank: 14.2 L

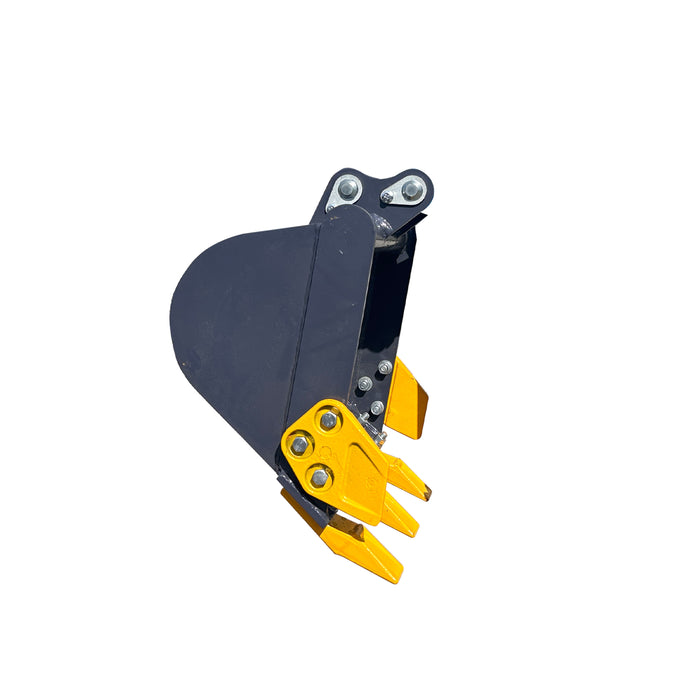

• Bucket Capacity: 0.03 m³

• Travel Speed: 0–2 km/h

• Climbing Ability: 30%

• Turning Speed: 10 rpm

• Bulldozer Width/Height: 1000 mm / 180 mm

Working Range:

• Max Digging Height: 2890 mm
• Max Unloading Height: 1958 mm
• Max Digging Depth: 2257 mm
• Max Vertical Excavation Depth: 2090 mm
• Max Excavation Radius: 3305 mm
• Min Gyration Radius: 1584 mm
• Min Tail Radius: 849 mm
• Max Blade Lift: 288 mm
• Max Blade Dig Depth: 146 mm

Dimensions:

• Overall Length: 3200 mm
• Overall Width: 936 mm
• Overall Height: 2210 mm
