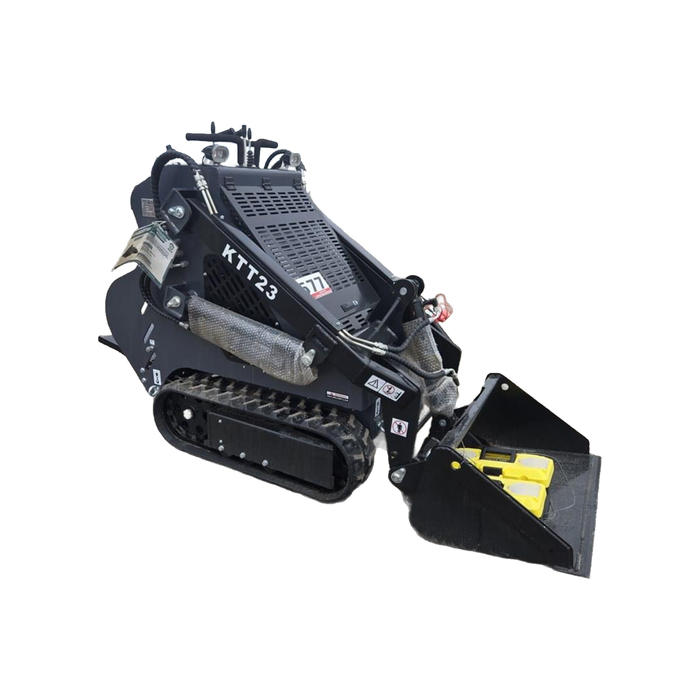

1 Ton, RATO Engine Mini Stand On Skid Steer Track Loader | AGT-KTT23
SKU AGT-KTT23

1 Ton, RATO Engine Mini Stand On Skid Steer Track Loader | AGT-KTT23

$7,060.00 - $7,060.00
$7,060.00
$7,271.80
$7,271.80 - $7,271.80
$7,271.80

We will need a direct phone number for the carrier to contact you with for final delivery

Video

Dimension

  • Operating Weight: 0.9 Ton (1,800 lbs)
  • Overall Length: 2,160 mm (85 in)
  • Overall Width: 1,270 mm (50 in)
  • Overall Height: 889 mm (35 in)
  • Bucket Width: 890 mm (35 in)
  • Bucket Capacity: 0.12 m³ (0.16 yd³)
  • Track Size: 200*72*32 (Width*Pitch Length*Links)

Working Range

  • Max Working Height: 2,450 mm (96.5 in)
  • Max Unloading Height: 1,428 mm (56 in)
  • Max Lifting Force:  220 kg (485 lb)
  • Travel Speed:  5.5 km/h (3.4 mph)

Engine

  • Brand / Model: Rato R740D
  • Fuel Type: Gasoline
  • Max Power: 17 kW (23 HP)
  • Displacement: 740 cc
  • Fuel Tank: 25 L (6.6 gal)
  • Hydraulic Flow Rate: 43.2 L/min (11.4 GPM)
  • Hydraulic Pressure: 16 MPa (2,320 PSI)
  • Hydraulic Tank Capacity: 25 L (6.6 gal)

Features

  • R740D Engine
  • PGP51088G3LP 2-Stage Pump
  • ORMSR23 Hydraulic Cooler
  • Toro Dingo mounting plate

FEATURES

740cc 23HP Engine

740cc 23HP Engine

Powered by Rato R740D Engine

Hydraulic Cooling Fan

Hydraulic Cooling Fan

Keeps the 2-Stage pump hydraulics cool

0.16 Cubic Yard Capacity

0.16 Cubic Yard Capacity

35" wide and handle up to 485 lbs

3.4 mph Travel Speed

3.4 mph Travel Speed

No worries in large jobsites as well
