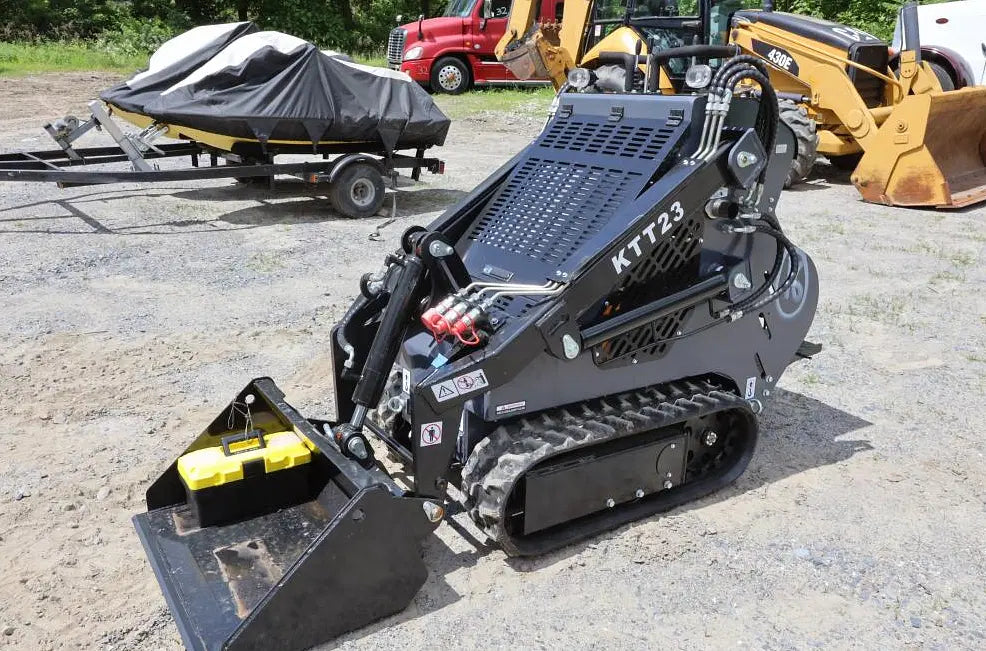

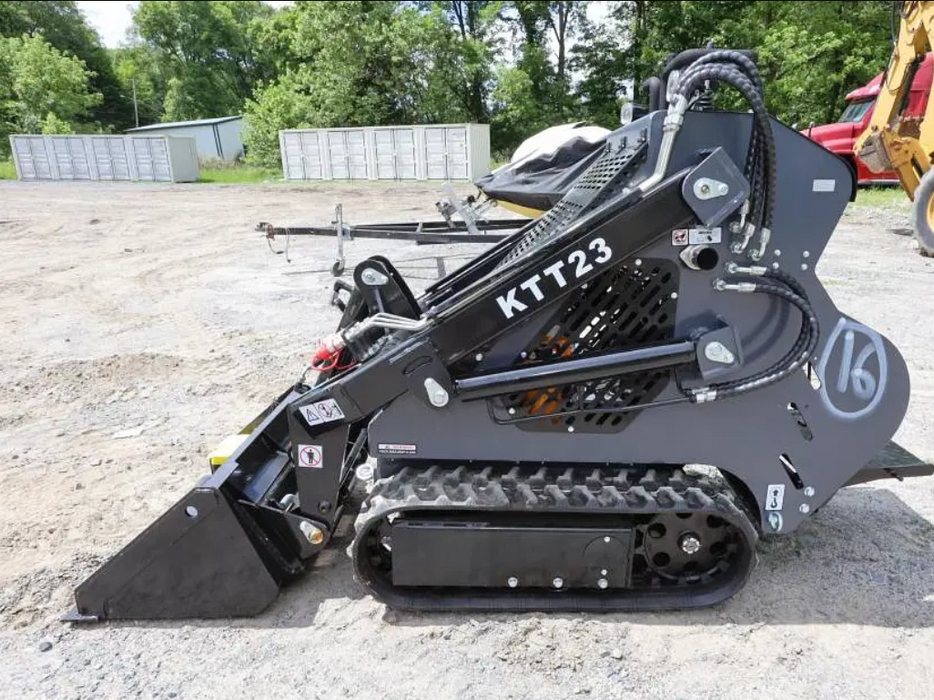

1 Ton, RATO Engine Mini Stand On Skid Steer Track Loader | AGT-KTT23
SKU AGT-KTT23

1 Ton, RATO Engine Mini Stand On Skid Steer Track Loader | AGT-KTT23

$6,598.00 - $6,598.00
$6,598.00
$6,598.00 - $6,598.00
$6,598.00

The compact and powerful skid steer features a maximum load capacity of 220 kg, a bucket capacity of 0.15 m³, and a RATO gasoline engine with 16.8KW output power.

In Action Video


Technical Data:

  • Operation Weight: 1 Ton
  • Engine: RATO Gasoline

Specific Data:

Max Load Capacity 220 kg
Bucket Capacity 0.15 m³
Maximum Lift 375 kg
Traveling Speed 0-5.5 km/h
Rated Pressure 16Mpa
Lifting Time 4.3 s
Descent Time 3.3 s
Tipping Time  1.5 s
Maximum Angle of the climb 30°
Total Weight 905 kg
Engine RATO
Engine type gasoline, V-double cylinder
Output power 16.8KW(23HP)/3600rpm
Fuel consumption ≤6.7 L/h
Starting mode Electric start

Tank capacity

Fuel Tank Capacity 25 L
Hydraulic Tank Capacity 25L
Engine oil tank capacity 1.6 L

Dimension

  • Operating Weight: 0.9 Ton (1,800 lbs)
  • Overall Length: 2,160 mm (85 in)
  • Overall Width: 1,270 mm (50 in)
  • Overall Height: 889 mm (35 in)
  • Track Size: 200*72*32 (Width*Pitch Length*Links)

Working Range

  • Max Lifting Force:  220 kg (485 lb)
  • Travel Speed:  5.5 km/h (3.4 mph)

Engine

  • Brand / Model: Rato R740D
  • Fuel Type: Gasoline
  • Max Power: 17 kW (23 HP)
  • Displacement: 740 cc
  • Fuel Tank: 25 L(6.6 gal)
  • Hydraulic Pressure: 16 MPa (2,320 PSI)
  • Hydraulic Tank Capacity: 25 L (6.6 gal)

Features

FEATURES

Compatible attachments

Hydraulic Auger For Mini Skid Steer Fits All AGT Models.
Hydraulic Auger For Mini Skid Steer Fits All AGT Models.
Sale Sale
$1,300.00
$1,300.00 - $1,300.00
$1,300.00
$750.00
$750.00 - $750.00
$750.00

Hydraulic Auger For Mini Skid Steer Fits All AGT Models | M-AG

In stock

The AGT M-AG hydraulic auger is a versatile attachment designed for all AGT mini skid steer models. Built for efficient drilling, it provides the p...

View full details
$1,300.00
$1,300.00 - $1,300.00
$1,300.00
$750.00
$750.00 - $750.00
$750.00
Sale Sale
AGT Mini Skid Steer Breaker-Hammer | M-HMR.
$1,250.00 - $1,250.00
$1,250.00
$1,250.00 - $1,250.00
$1,250.00

Mini Skid Steer Breaker-Hammer | AGT-M-HMR

In stock

The AGT-M-HMR breaker-hammer is a rugged hydraulic attachment designed for use with mini skid steer loaders. Built to handle tough demolition and b...

View full details
$1,250.00 - $1,250.00
$1,250.00
$1,250.00 - $1,250.00
$1,250.00
Sweaper for AGT Mini Skid Steer | M-AB.
$1,978.00 - $1,978.00
$1,978.00
$1,978.00 - $1,978.00
$1,978.00

Sweeper for AGT Mini Skid Steer | M-AB

In stock

The AGT M-AB sweeper is a compact, hydraulic broom attachment designed for AGT mini skid steer loaders. Engineered for efficient cleanup on constru...

View full details
$1,978.00 - $1,978.00
$1,978.00
$1,978.00 - $1,978.00
$1,978.00
$2,300.00 - $2,300.00
$2,300.00
$2,300.00 - $2,300.00
$2,300.00

Mini Skid Steer Trencher for AGT Mini Skid Steer Loader | M-CT

In stock

The AGT M-CT continuous trencher is a heavy-duty skid steer attachment designed for efficient trenching, slotting, and underground utility installa...

View full details
$2,300.00 - $2,300.00
$2,300.00
$2,300.00 - $2,300.00
$2,300.00
39" Hydrualic Grapple Mini Skid Steer | M-HGB.
39" Hydrualic Grapple Mini Skid Steer | M-HGB.
$1,105.00 - $1,105.00
$1,105.00
$1,105.00
$1,105.00 - $1,105.00
$1,105.00

39" Hydrualic Grapple Mini Skid Steer Wood Grabber | AGT-M-HGB

In stock

The AGT-M-HGB hydraulic grapple is a 39-inch wood grabber attachment designed for AGT mini skid steer loaders. Built for handling logs, brush, debr...

View full details
$1,105.00 - $1,105.00
$1,105.00
$1,105.00
$1,105.00 - $1,105.00
$1,105.00
Mini Skid Steer Attachments: 1 Ton

Parts List

KTT23 Ignition switch| AGT-KTTIGN | AGT Industrial| KTT23 Ignition switch| AGT-KTTIGN.
Sold out
$50.00 - $50.00
$50.00
$50.00 - $50.00
$50.00

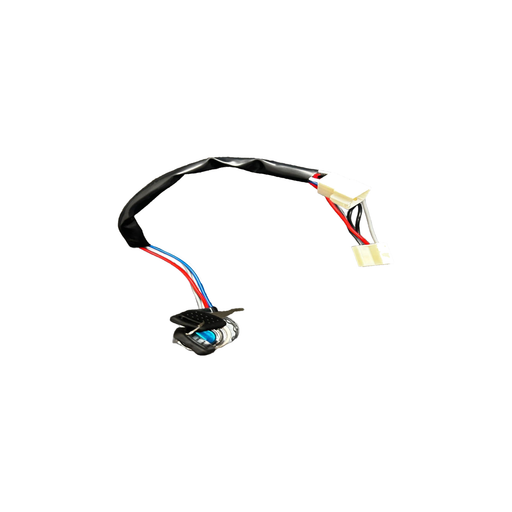

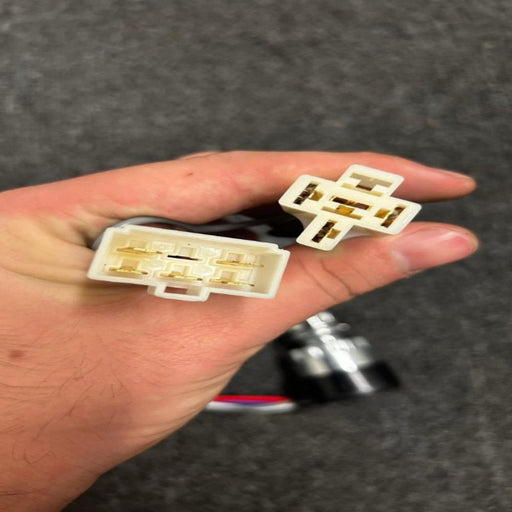

Ignition Switch for AGT-KTT23 | DHKG-KTT23

Out of stock

The DHKG-KTT23 Ignition Switch is a durable and reliable replacement part designed to ensure smooth and consistent startup for your AGT KTT23 mini ...

View full details
$50.00 - $50.00
$50.00
$50.00 - $50.00
$50.00
Sold out
Sold out
$215.00
$215.00 - $215.00
$215.00
$140.00
$140.00 - $140.00
$140.00

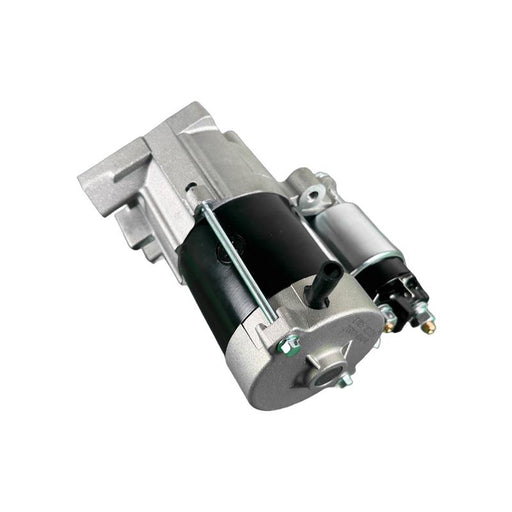

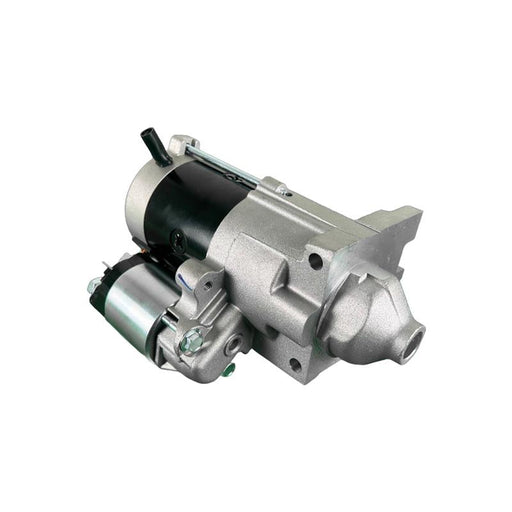

Starter for RATO 23hp R740 Engine | 30300-Z130121-00A0

Out of stock

The starter for the RATO 23HP R740 engine is a robust mechanical starter designed to engage the engine efficiently for a smooth ignition process. B...

View full details
$215.00
$215.00 - $215.00
$215.00
$140.00
$140.00 - $140.00
$140.00
Sold out
Sold out
$49.00 - $49.00
$49.00
$49.00 - $49.00
$49.00

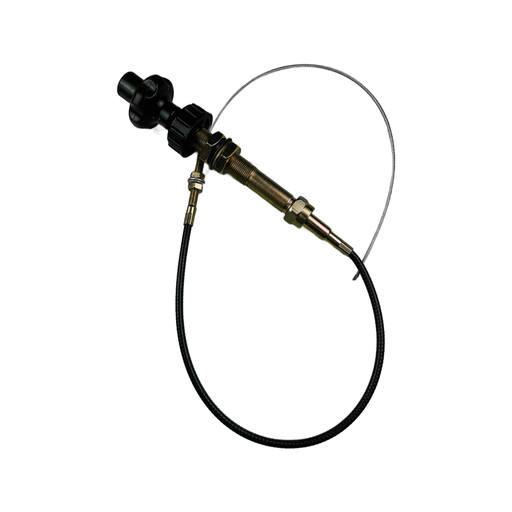

Throttle Cable for KTT23 | SXYM-1M

Out of stock

$49.00 - $49.00
$49.00
$49.00 - $49.00
$49.00
Sold out
$120.00 - $120.00
$120.00
$120.00 - $120.00
$120.00

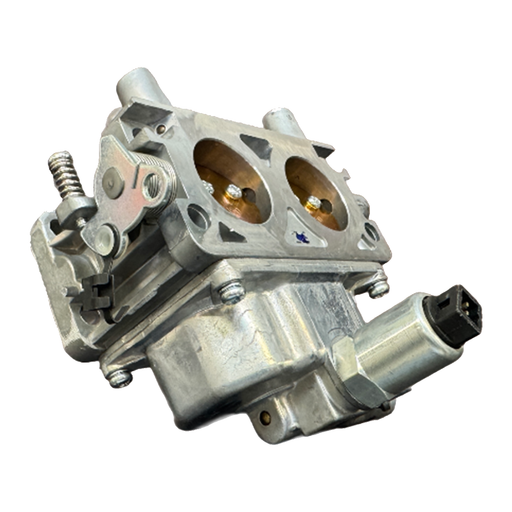

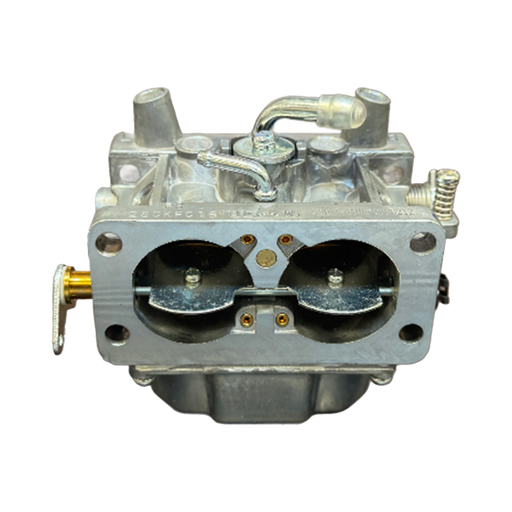

R740D Carburetor | 16100-Z3P0212-00A0

In stock

OEM Carburetor for Rato R740D Engine (25 HP) Keep your Rato R740D engine performing like new with this genuine OEM carburetor. Built to factory spe...

View full details
$120.00 - $120.00
$120.00
$120.00 - $120.00
$120.00
$284.63 - $284.63
$284.63
$284.63 - $284.63
$284.63

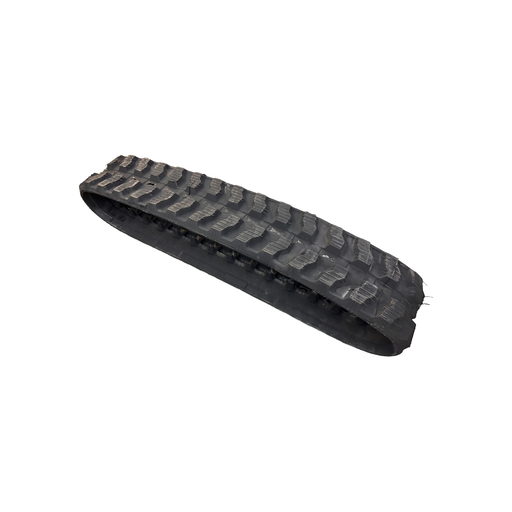

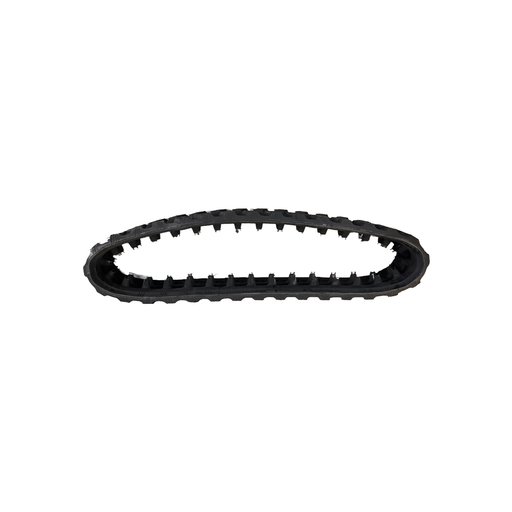

Heavy Duty track for KBT23 | KBT23LD

In stock

Dimension: Weight：27 lb. Length: 43 in Width: 8 in Dimension: 200 x 72 x 32

$284.63 - $284.63
$284.63
$284.63 - $284.63
$284.63
Parts List: KTT23

Customer Reviews

Based on 3 reviews
0%
(0)
33%
(1)
33%
(1)
0%
(0)
33%
(1)
S
Shane
Inability to get parts

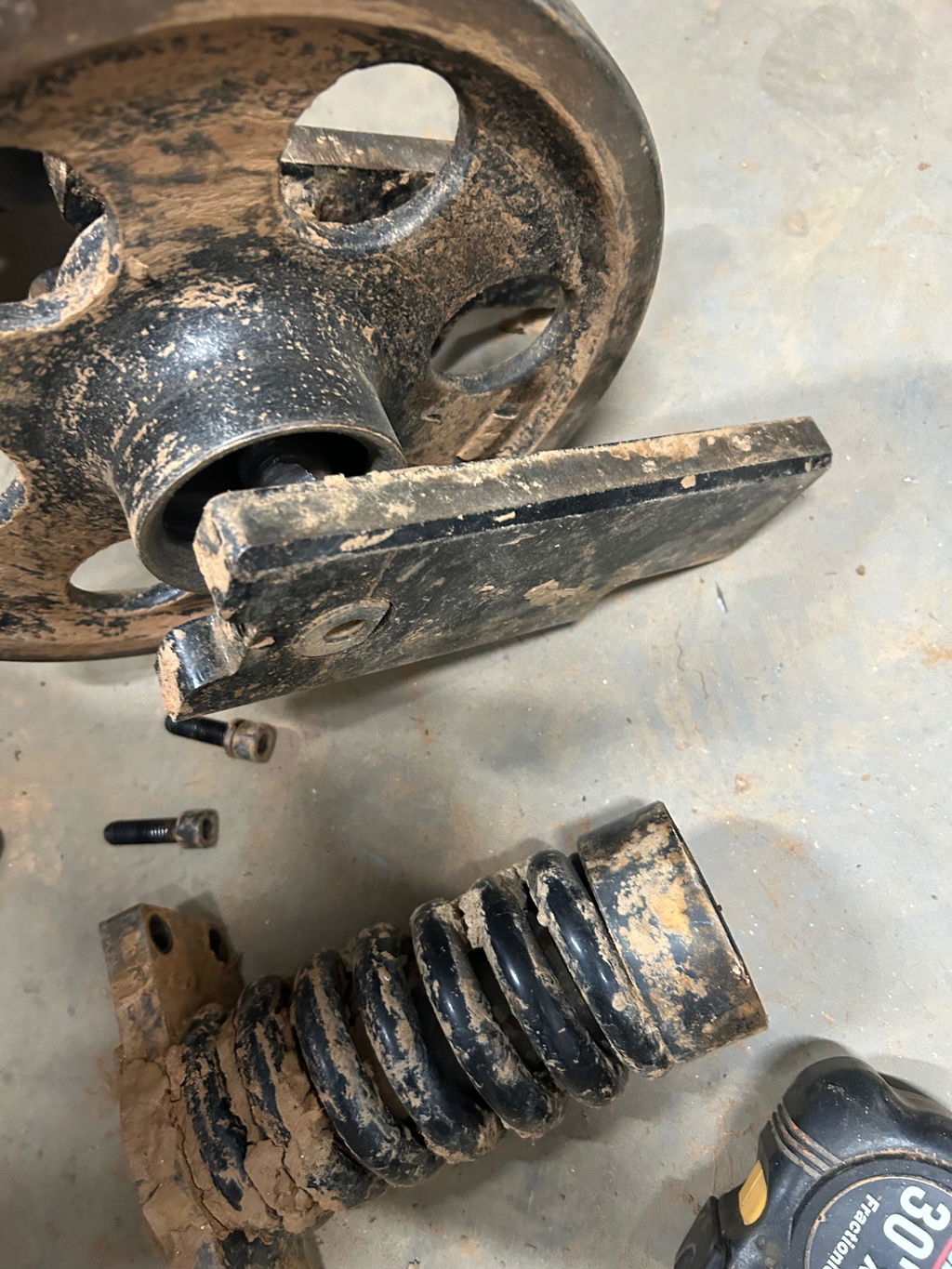

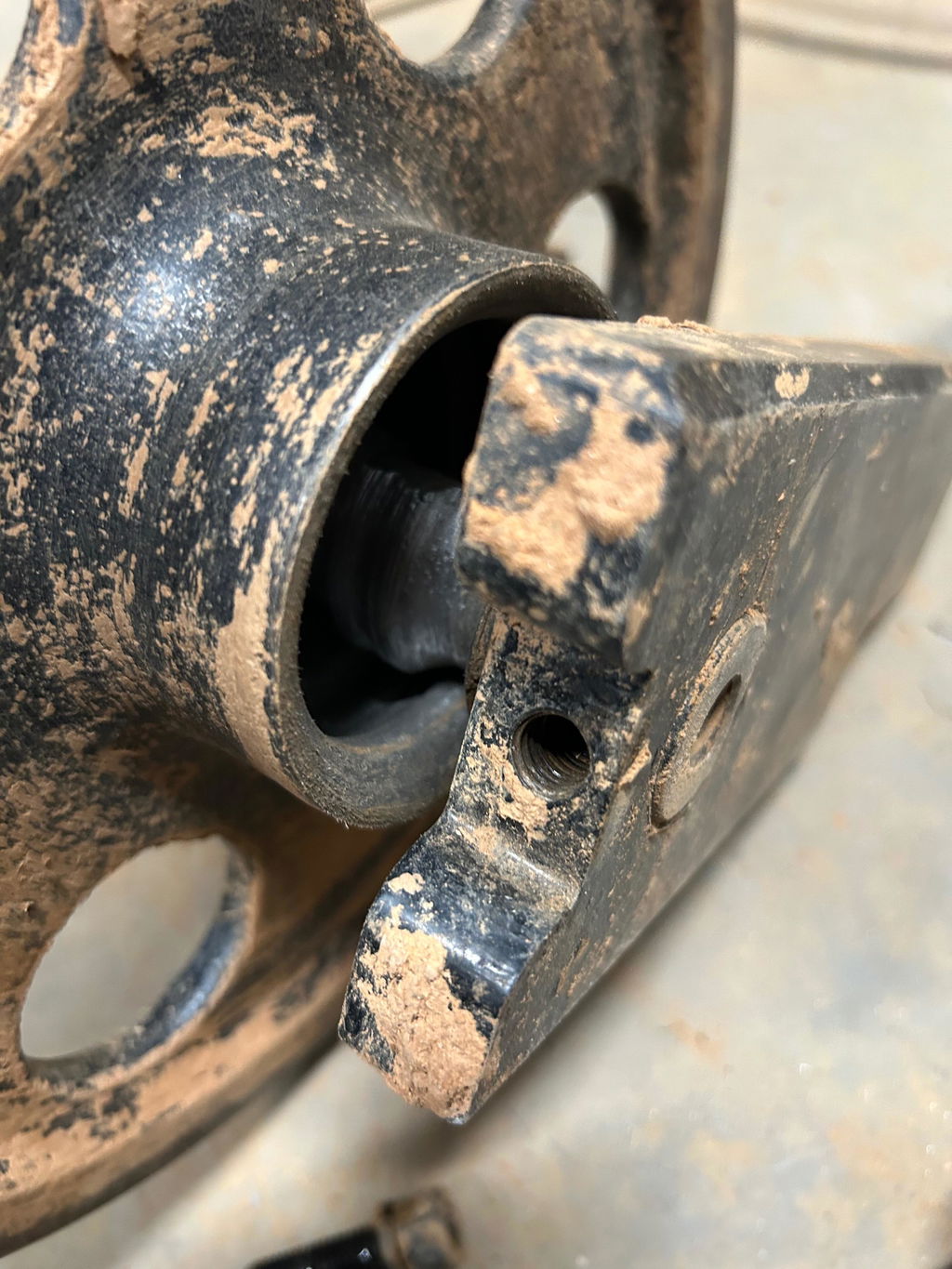

Would be a descent little machine if major components like front track idler wheel could be obtained when they prematurely fail making the machine unable to function. Also, not well assembled as our exhaust tip rotated and was stifling the engine. The machine has been out of service now for two months:-(

User picture User picture
R
Raymond Marmouze
Skid steer loader

There were several minor freight damages. Bent right light, crawler knob missing, several angle steel areas bent to suggest rough handling. I still need to totally uncrate it to fully review, but so far it appears to be a great piece of equipment.

b
bruce davidson
Time saver

I got one of these last month. It seems to work very well, does everything I need it to do. My only complaint is that they don't have a service or operators manual for it.
