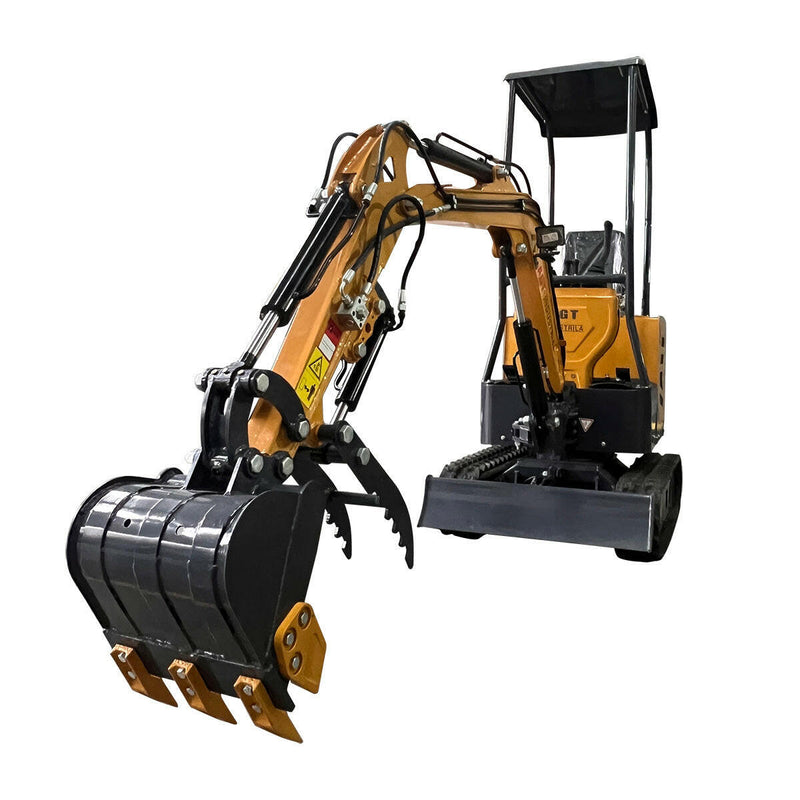

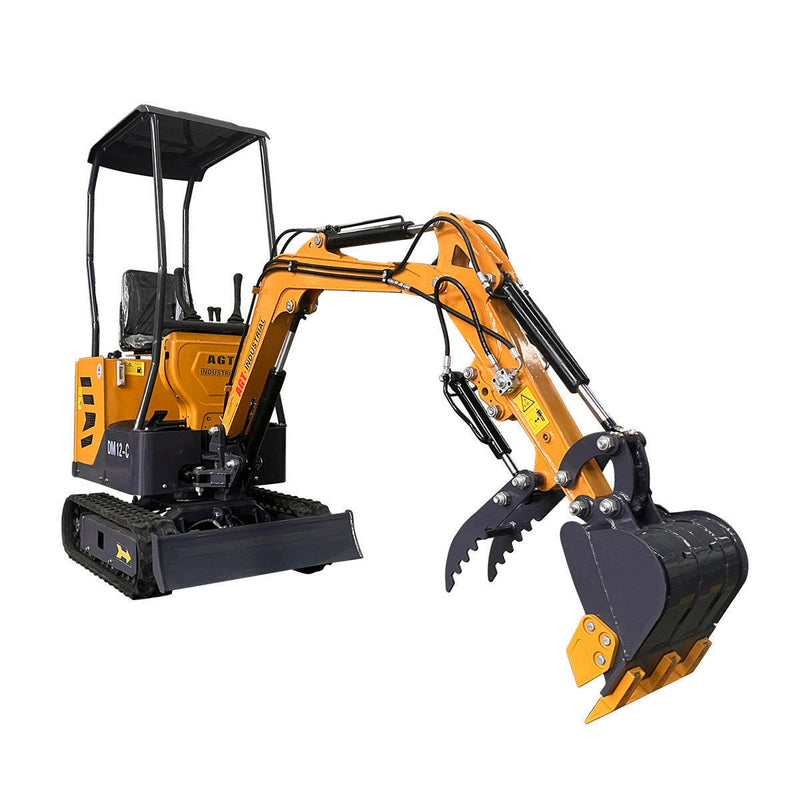

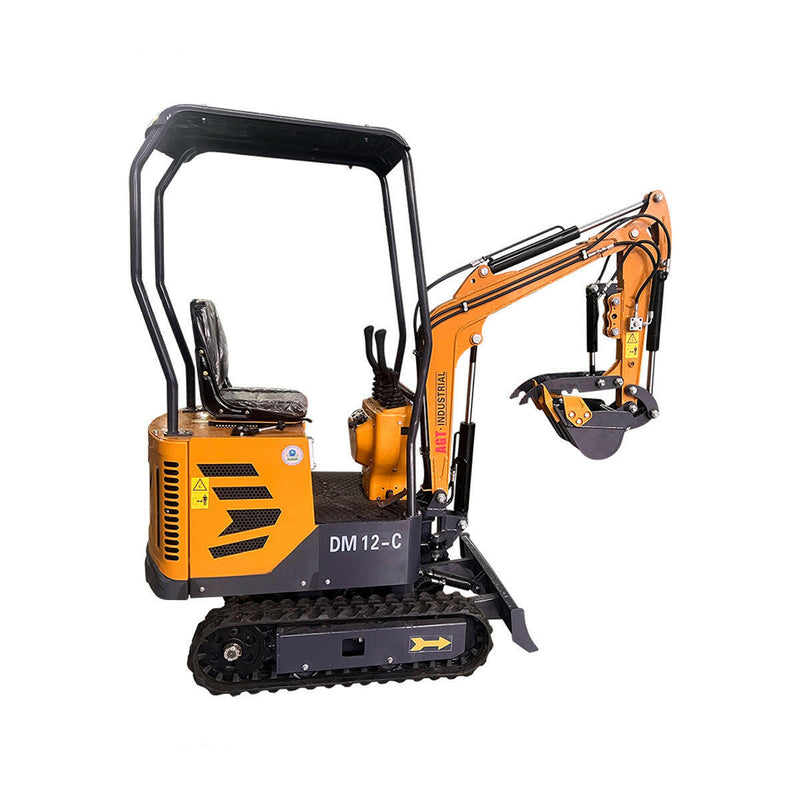

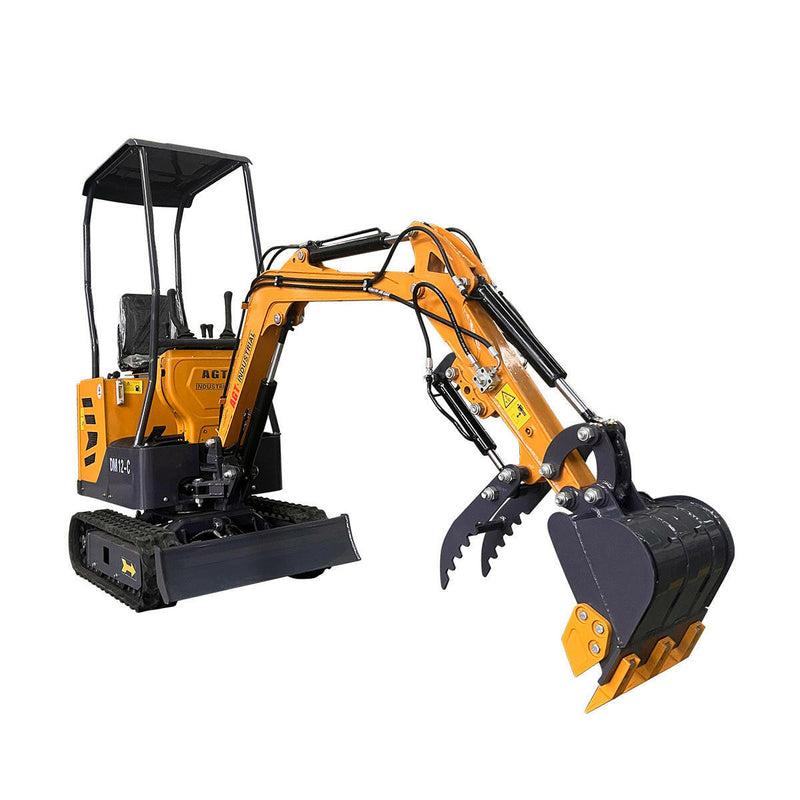

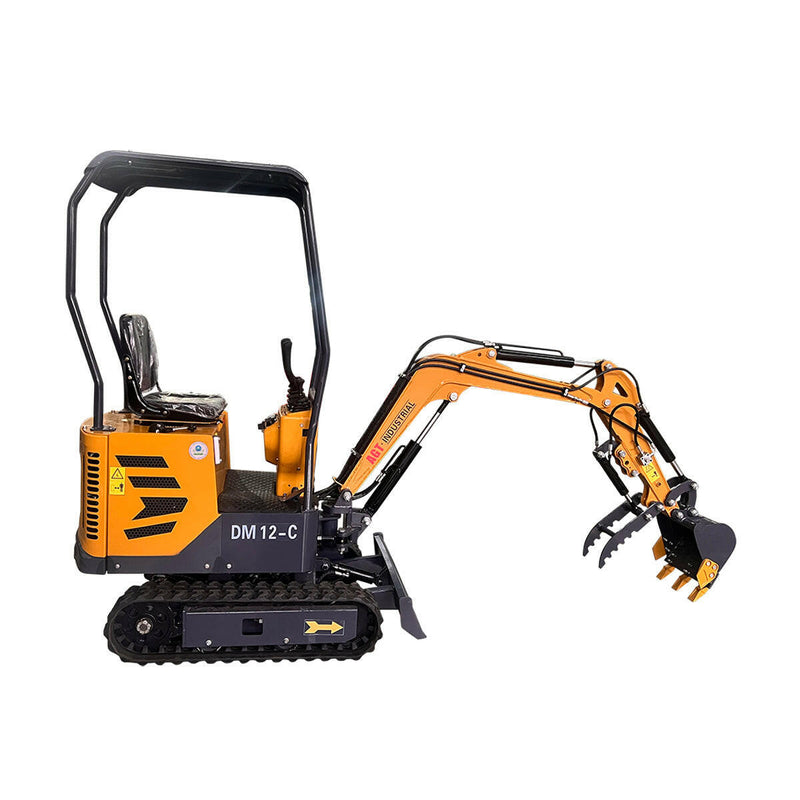

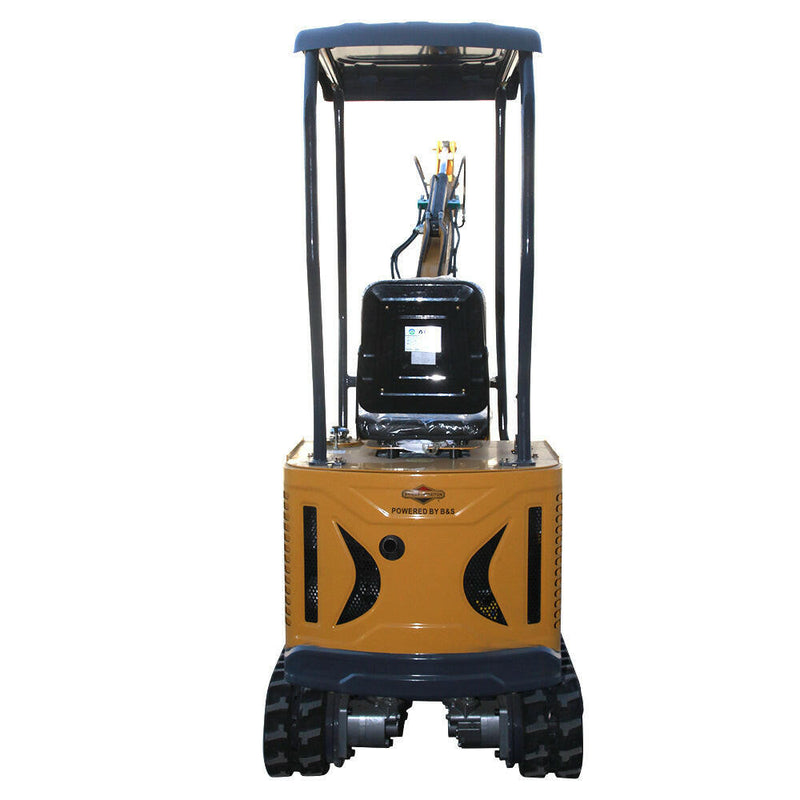

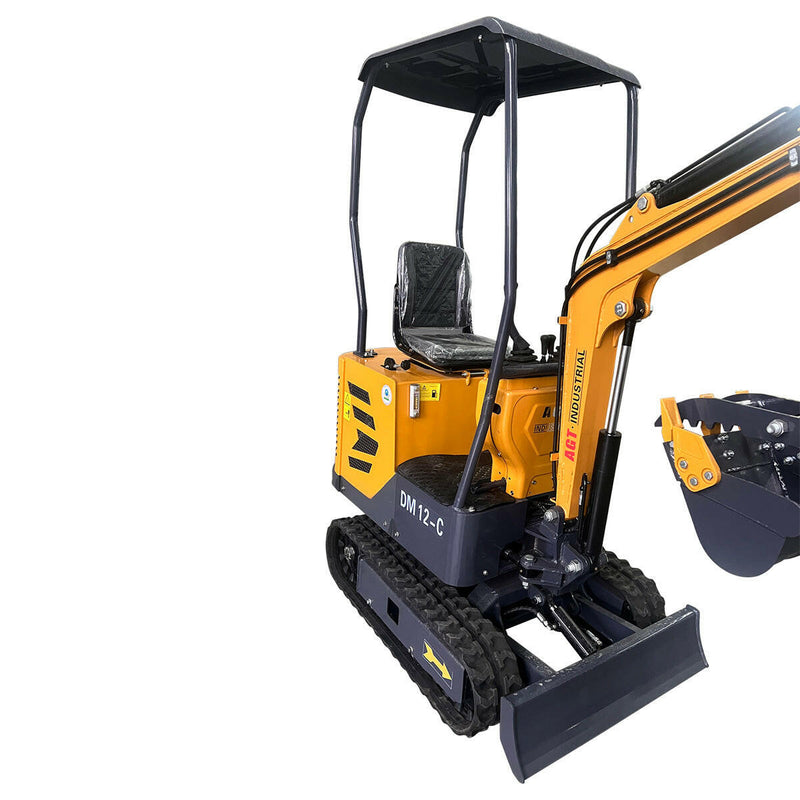

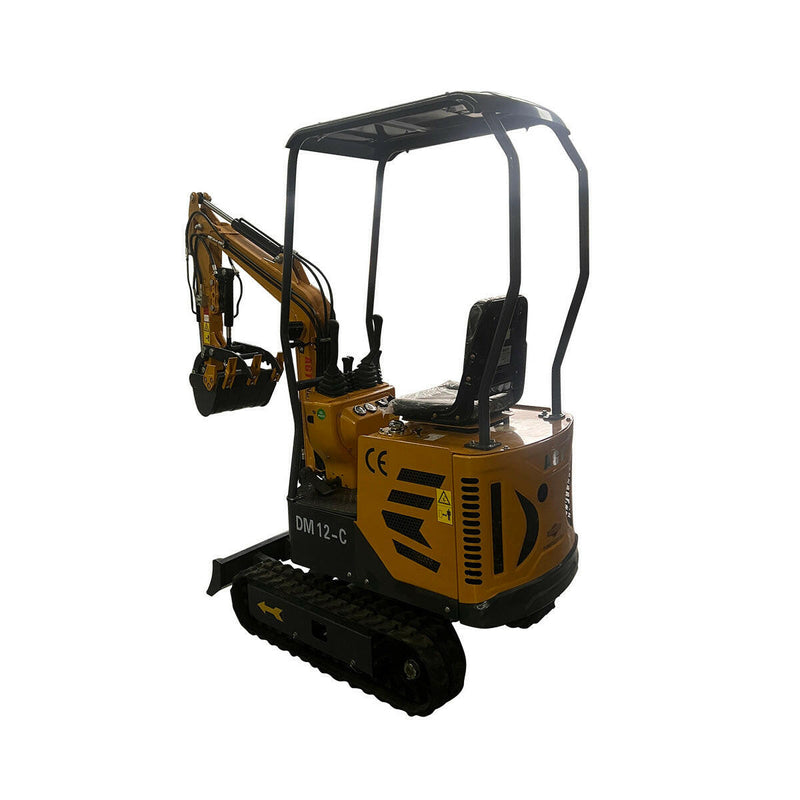

1 Ton 2024 AGT Mini Excavator W/ SIDE SWING BOOM & HYDRAULIC THUMB | AGT DM12-C.
SKU AGT-DM12-C

1 Ton, 13.5 HP Gasoline Engine (B&S) Mini Excavator w/ Hydraulic Thumb & Side Swing Boom | AGT-DM12-C

$0.00 - $0.00
$0.00
$6,899.00
$6,899.00 - $6,899.00
$6,899.00

With a compact design, 1-ton operating weight, and a maximum digging depth of 5.79 feet, AGT's lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces. Equipped with a hydraulic thumb and side swing boom.

Manual

Technical Data:

  • Operation Weight: 0.959 Ton
  • Engine: B&S

  • Max Angle: 30 Degree


Dimension

  • Operating Weight: 0.9 Ton (1,985 lbs)
  • Overall Length: 2,260 mm (89 in)
  • Overall Width: 958 mm (37.7 in)
  • Overall Height: 2,200 mm (86.5 in)
  • Track Size: 180*72*37 (Width*Pitch Length*Link)

Working Range

  • Max Digging Depth: 1,764 mm (69.5 in)
  • Max Digging Height: 2,670 mm (105 in)
  • Max Dumping Height: 1,900 mm (75 in)
  • Max Reach at Ground: 3,400 mm (134 in)
  • Dozer Blade Width: 910 mm (36 in)
  • Dozer Blade Height: 200 mm (8 in)

Features

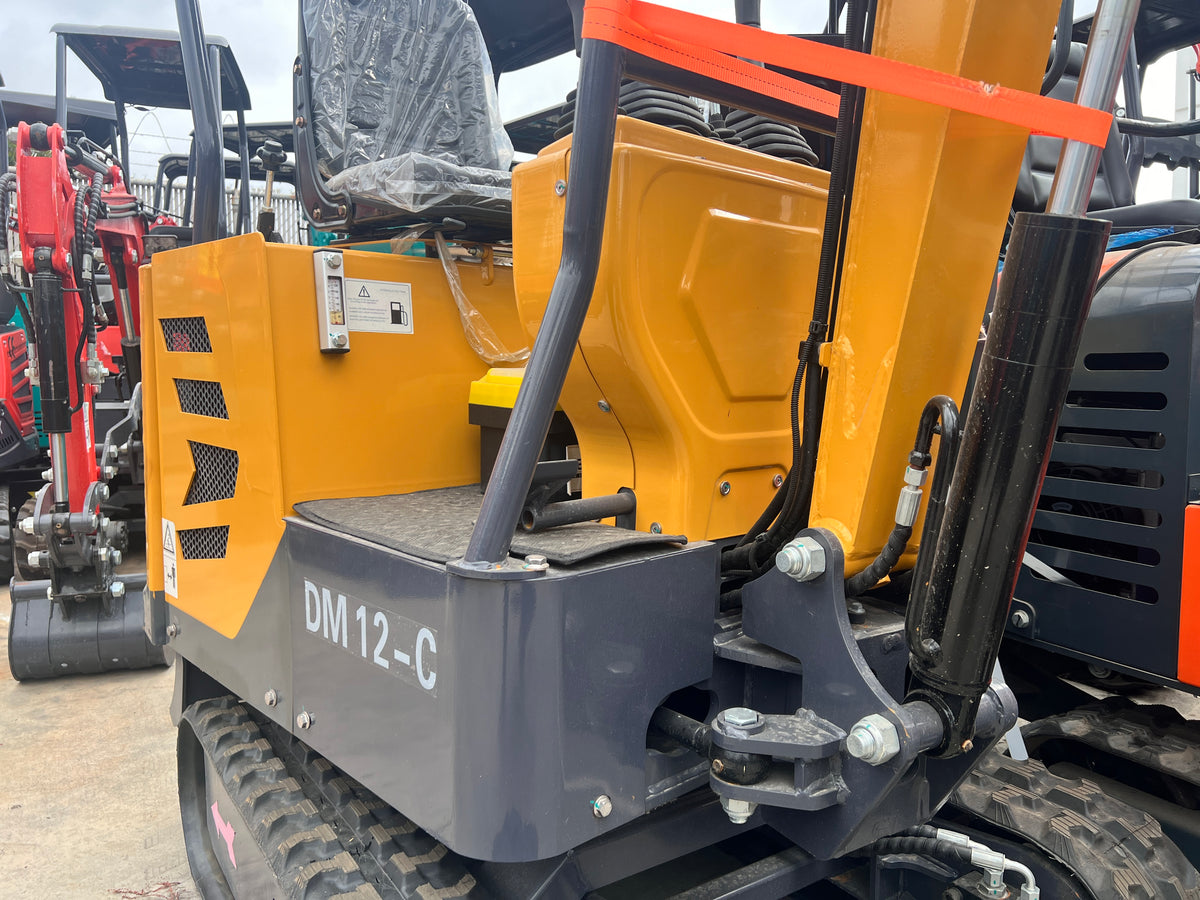

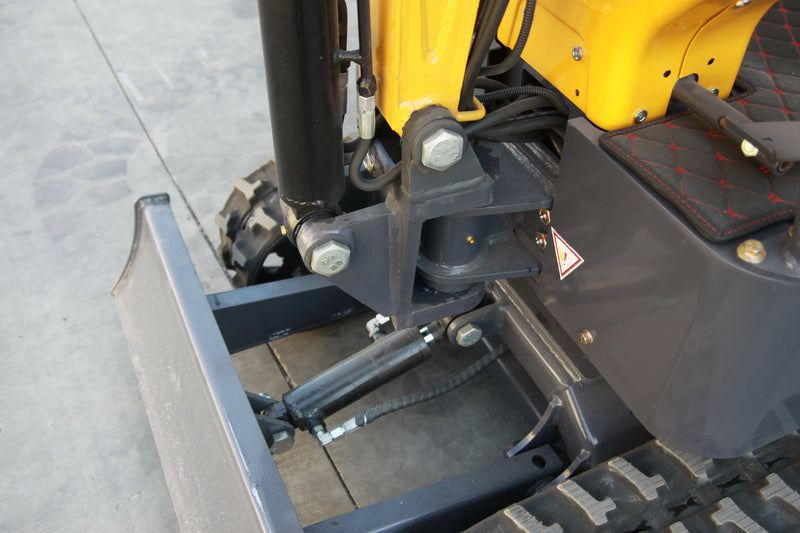

  • Swing Boom

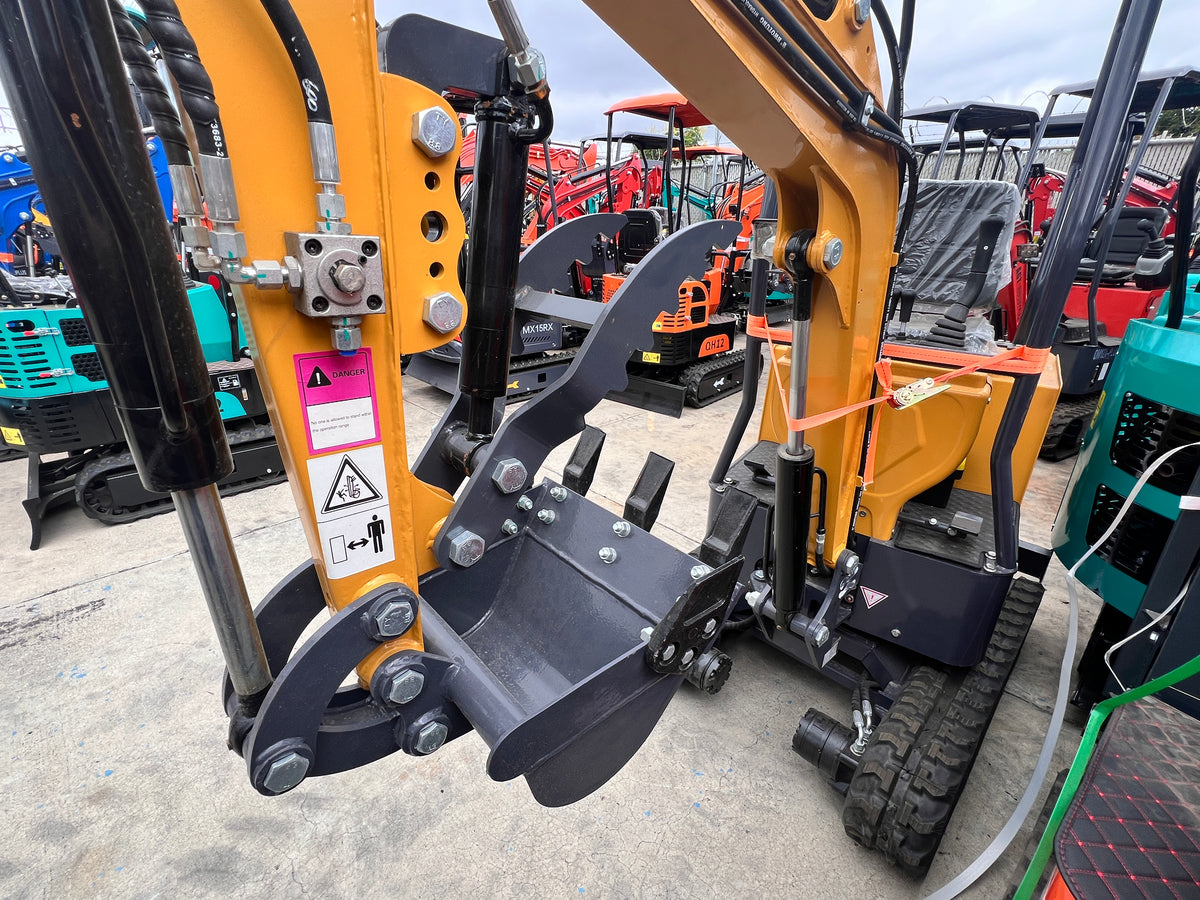

  • Hydraulic Thumb

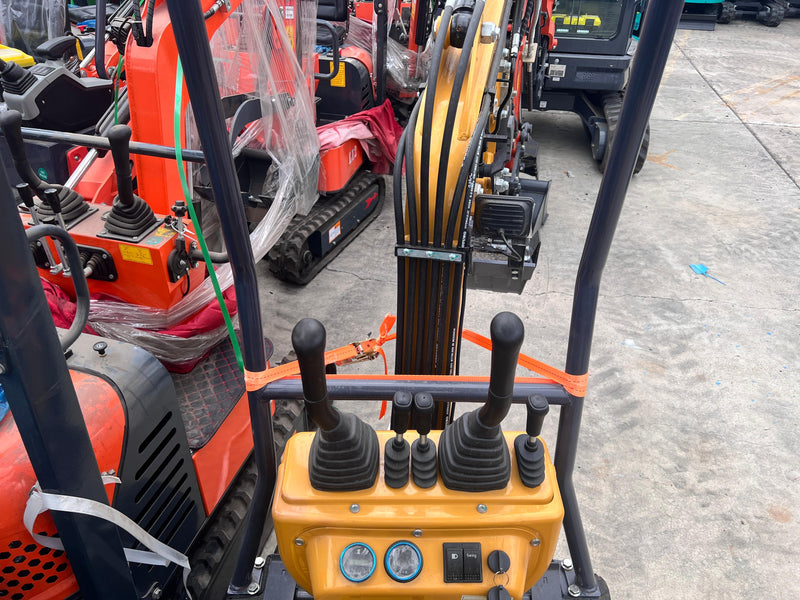

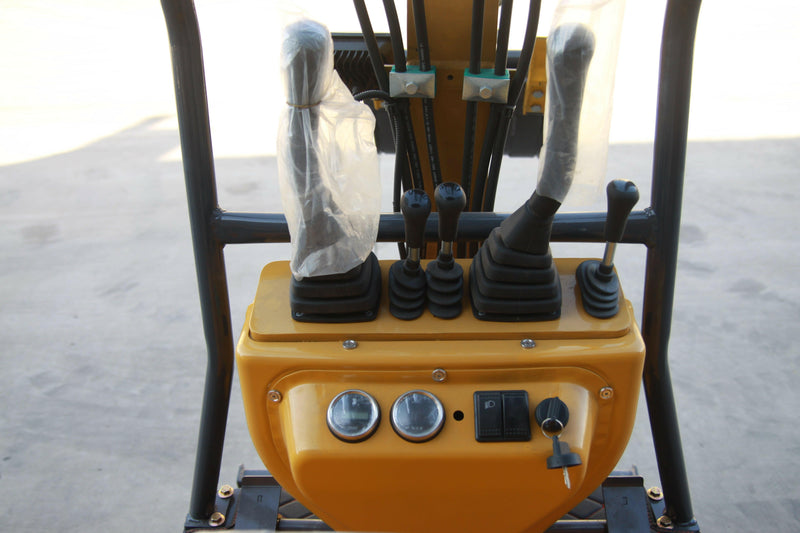

  • Foot Pedal

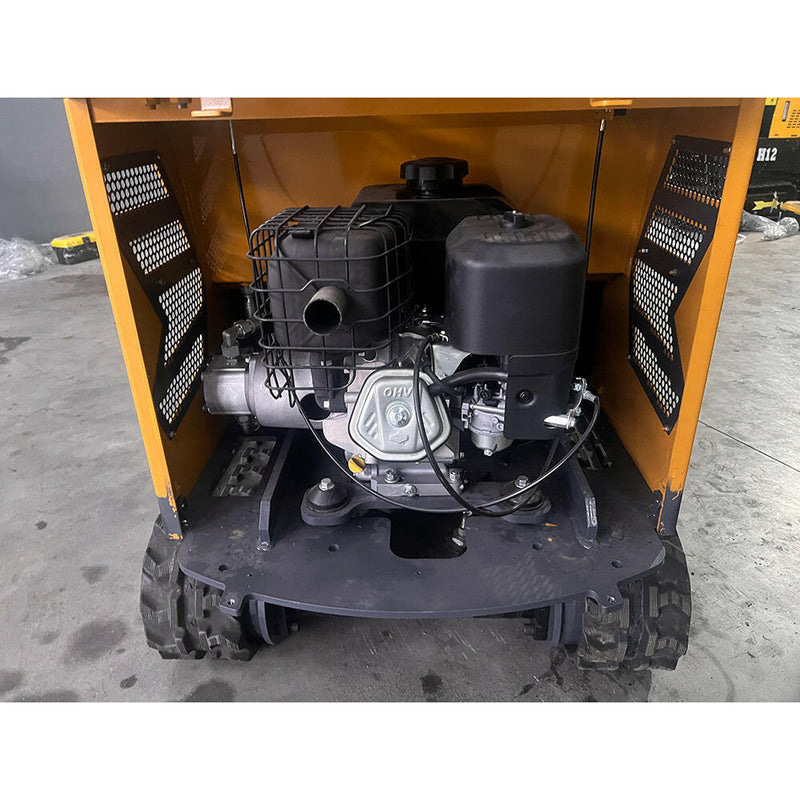

Engine

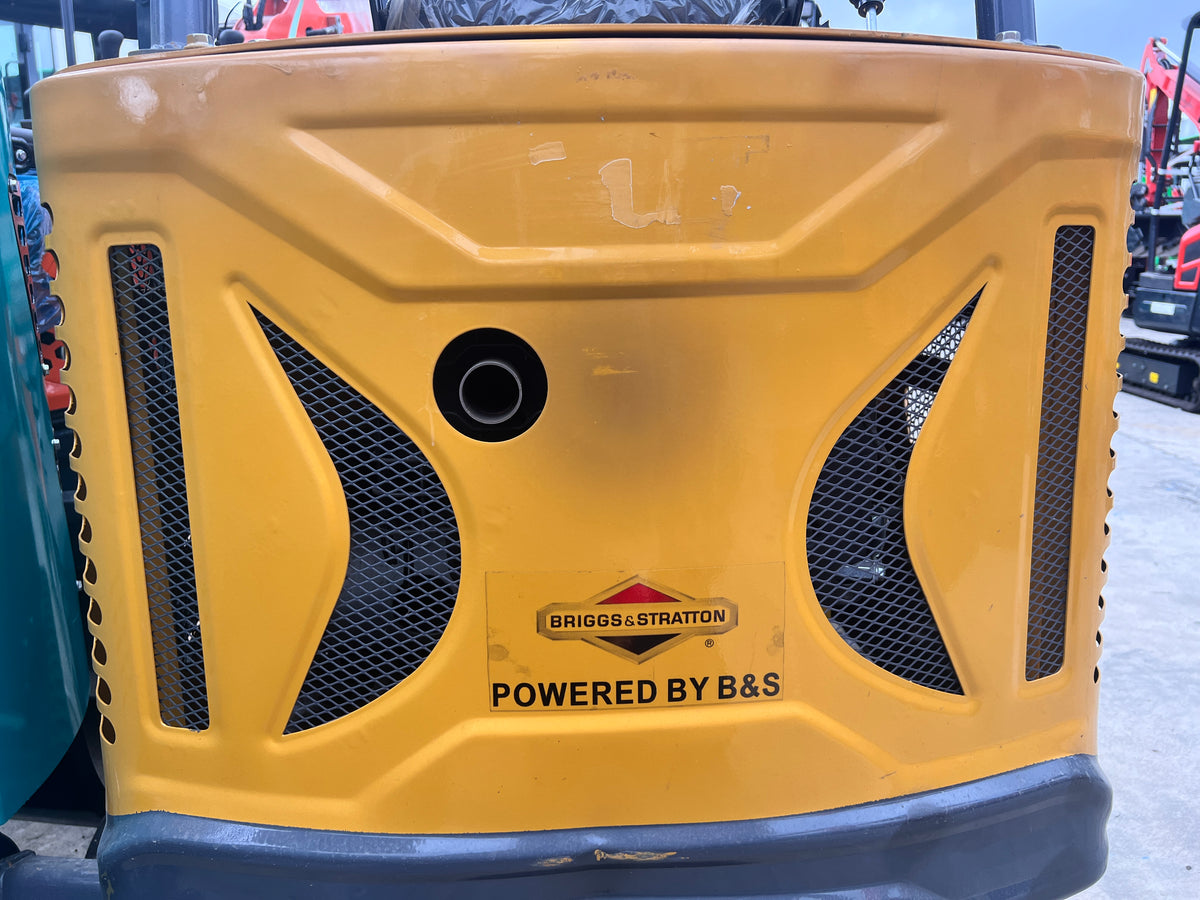

  • Engine Brand: B&S
  • Fuel Type: Gasoline
  • Model: XR
  • Rated Power: 10.5 kW (13.5 HP)
  • Displacement: 420 cc
  • Fuel Capacity: 6.6 L (1.7 gal)
  • Fuel Consumption: 0.5-1.2 L/hr
  • Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
  • Hydraulic Pressure: 16 MPa (2300 PSI)
  • Hydraulic Tank Capacity: 18 L (4.8 gal)
  • Traveling Hydraulic Motor Type: BM6-310
  • Rotary Hydraulic Motor Type: BM2-250
  • Battery: 12V, 45–60Ah

Customer Reviews

Based on 3 reviews
33%
(1)
33%
(1)
0%
(0)
0%
(0)
33%
(1)
W
William Hahn
I've experienced poor customer service/support from AGT.

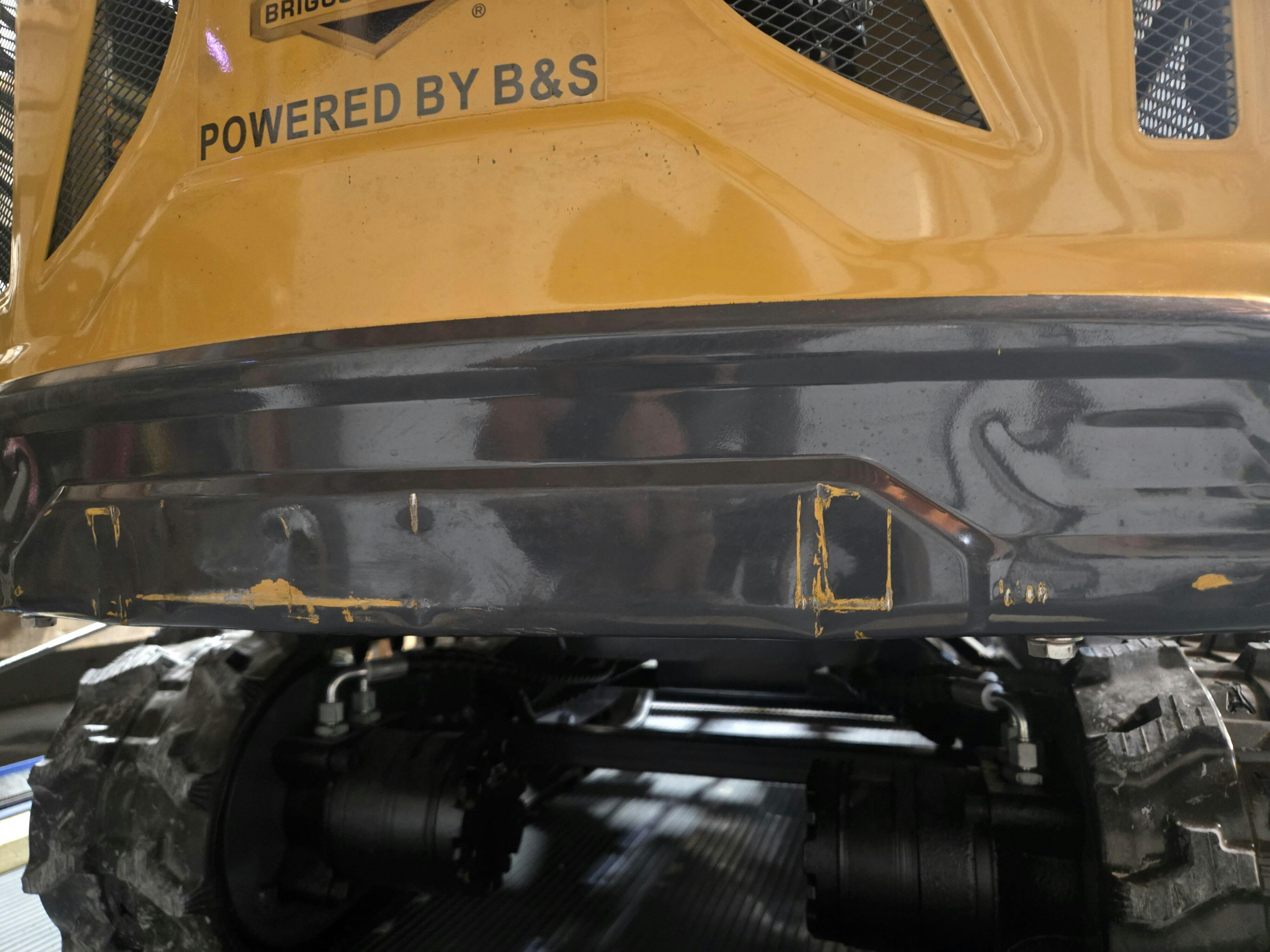

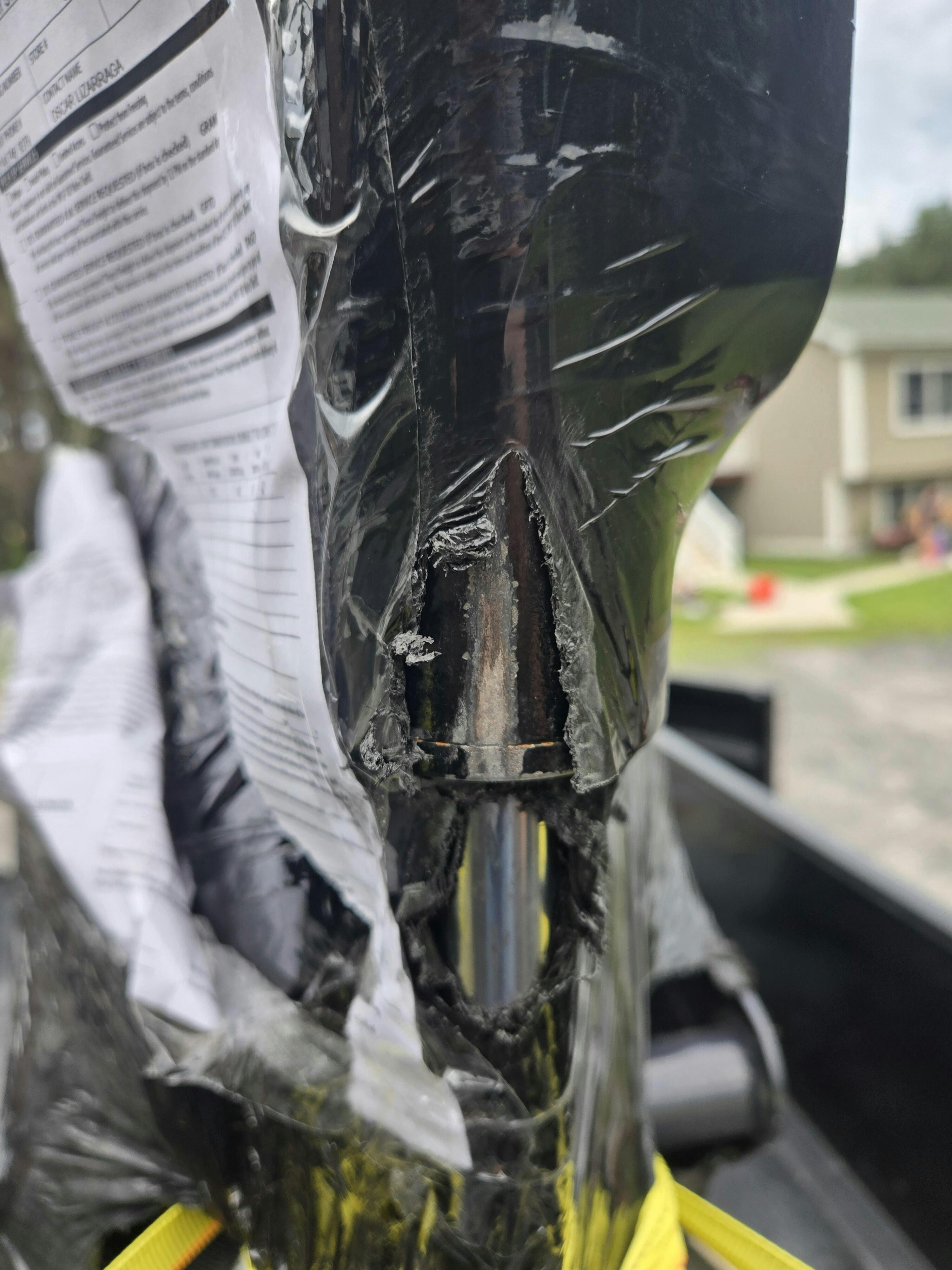

I've experienced poor customer service. The mini excavator arrived with dents and a scratched hydraulic Piston rod. Although I was told the issues would be resolved, I've received no response for two weeks now after sending multiple emails.

User picture User picture User picture User picture User picture
r
roy cowan
Great little machine

I think this machine will work great for what I got it for. The weather has been too bad to try it out since it arrived.

J
John Sutcliffe
So far so good

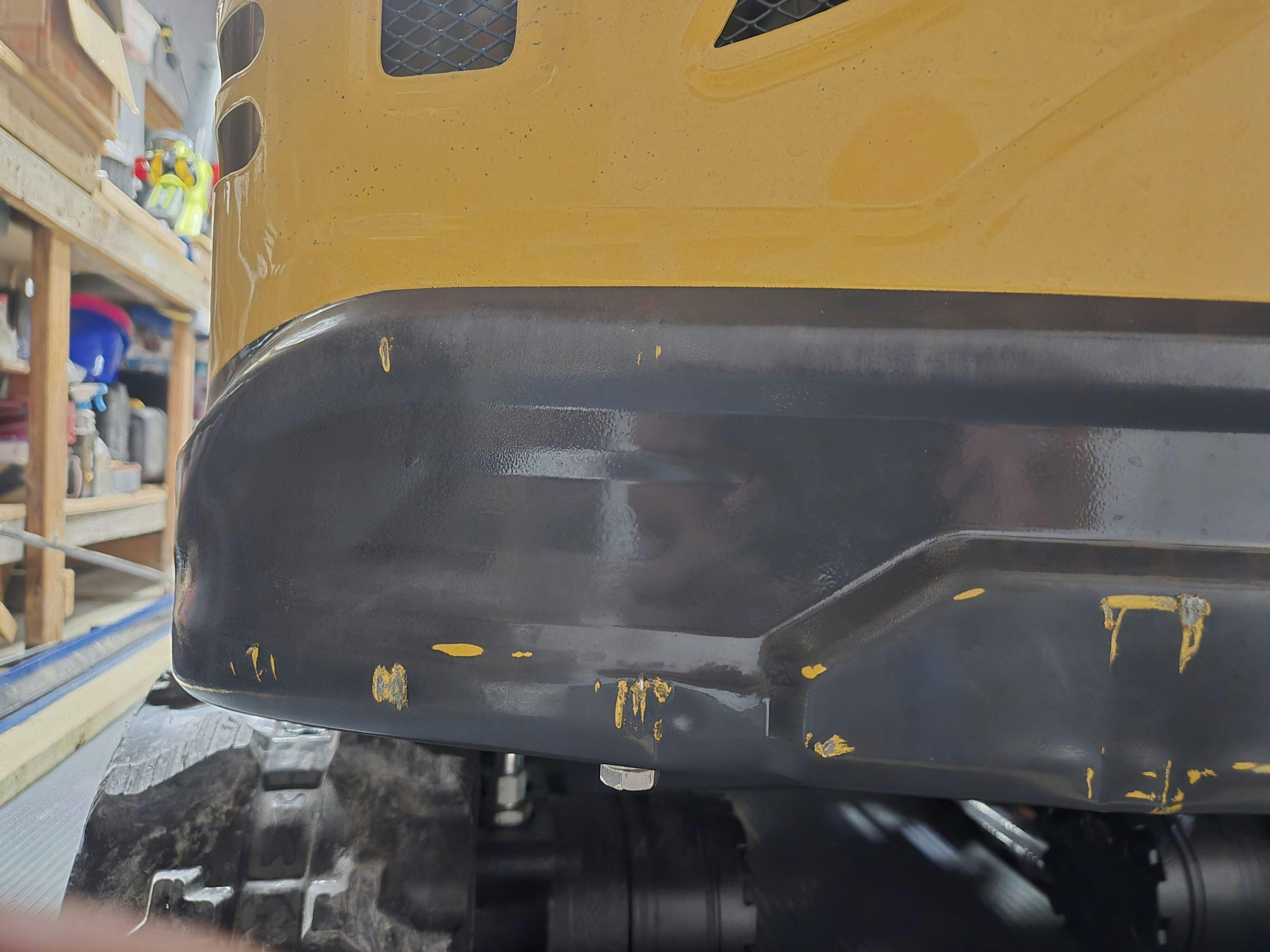

It arrived today. It had a few rub marks on it from the shipper (counterweight was completely scratched to bare metal, the rops on one side was rubbed down to bare metal in 2 spots, and one side panel was rubbed to bare metal) but overall it arrived in working condition. I bought it knowing from other people that I would be adding a hydraulic filter and cooler on it as well as a cooling fan to exhaust the hot air out of the engine compartment. Will also be replacing the grease fittings on the machine as the ones on it are are not standard and a normal grease gun will not work with them. Hopefully by next week I can have the mods done so I can start working with it. For the price I think it’s a great buy and definitely seems to be well built for what it is.
