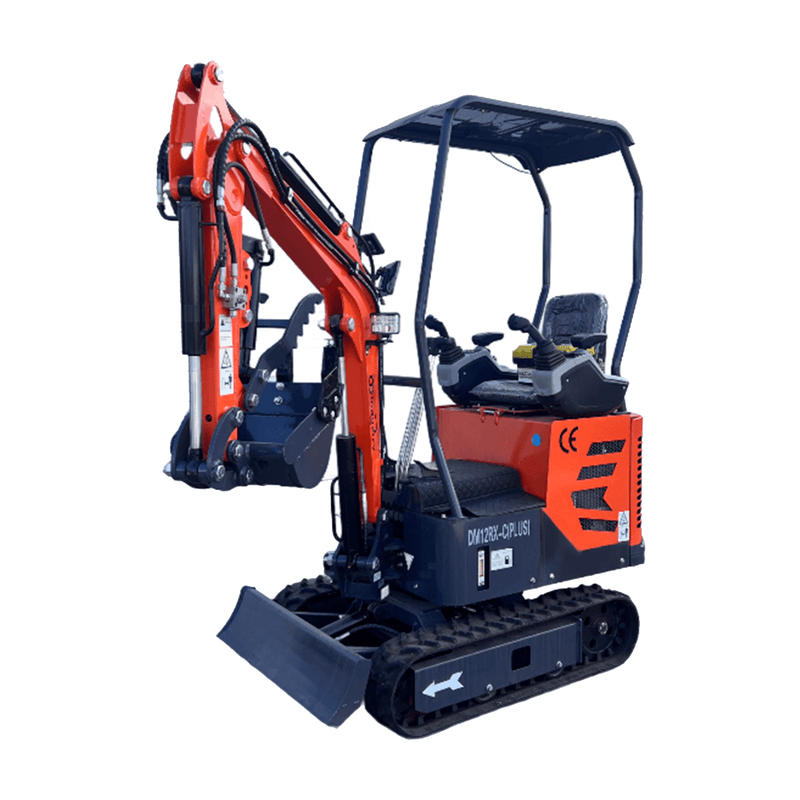

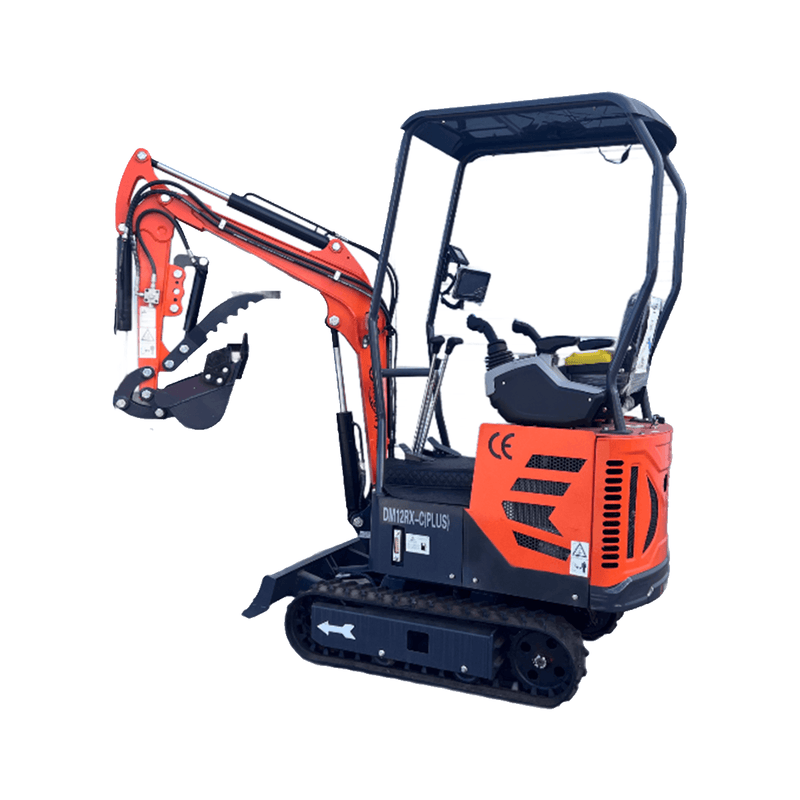

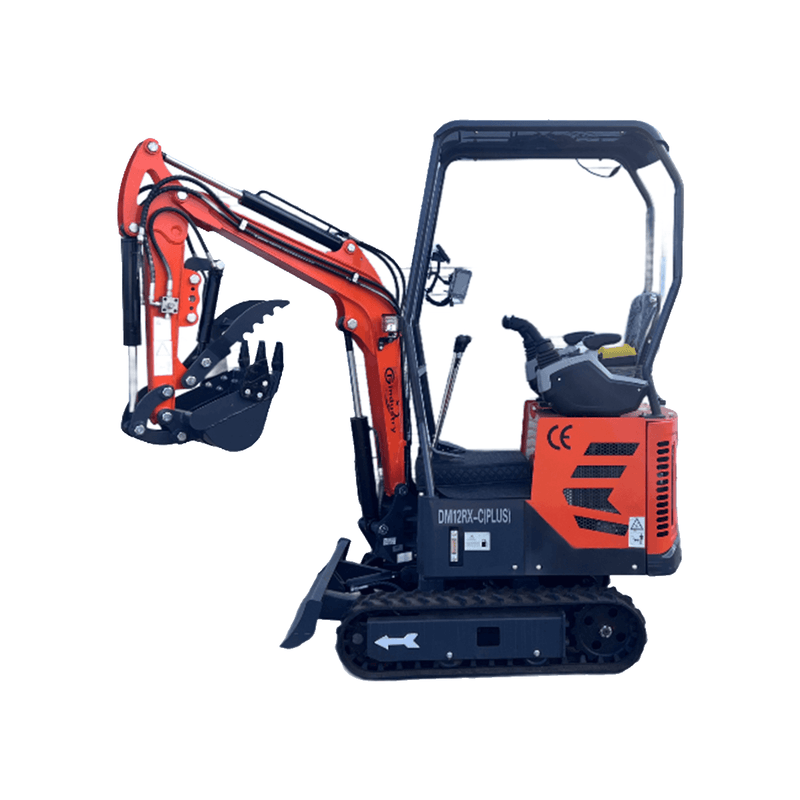

1 Ton, Upgraded Mini Excavator w/ Pilot Control & Swing Boom & Hydraulic Thumb & Features | AGT-DM12X-PLUS
SKU DM12X-PLUS

1 Ton, Upgraded Mini Excavator w/ Pilot Control & Swing Boom & Hydraulic Thumb & Features | AGT-DM12X-PLUS

Sale Sale
$8,599.00
$8,599.00 - $8,599.00
$8,599.00
$7,739.10
$7,739.10 - $7,739.10
$7,739.10

We will need a direct phone number for the carrier to contact you with for final delivery

Start Up Instruction

Walk-Around Video

Technical Data:

  • EFI Electric Fuel Injection Engine Electric Fuel Injection
  • Stainless steel screws for exterior parts

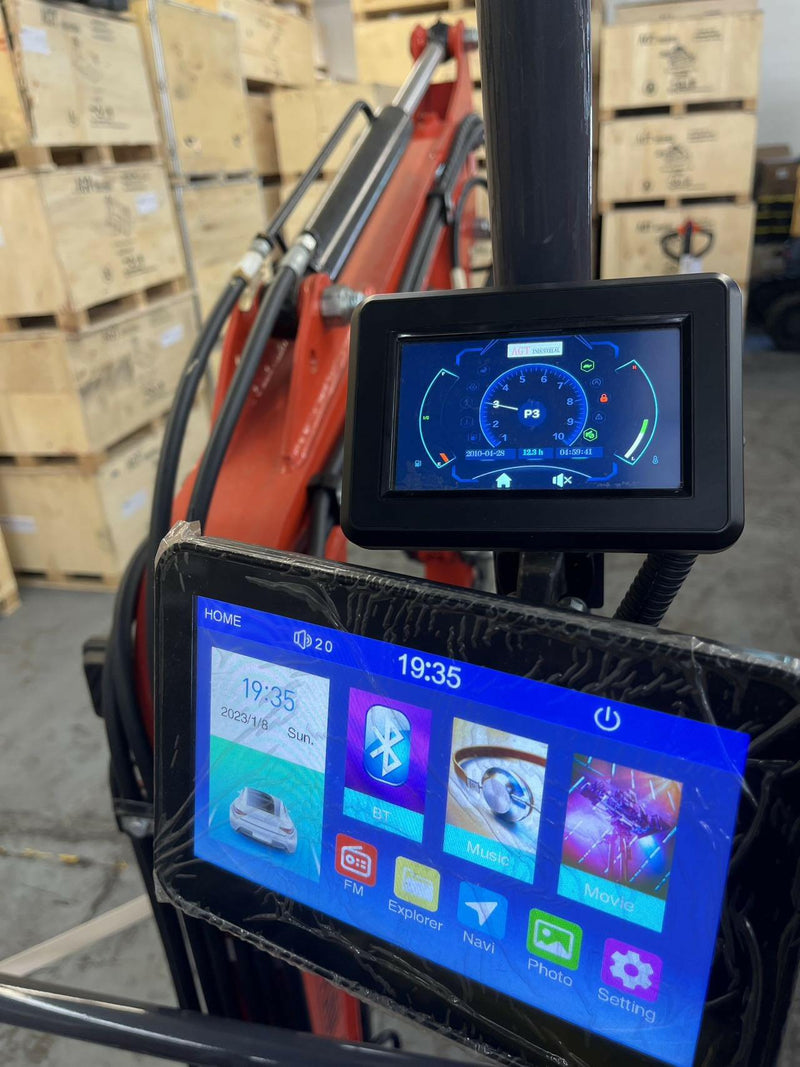

  • Dual display screen (parameter screen, entertainment screen)
  • Front and rear double camera
  • Oil cooling configuration
  • Electric injection engine, adjustable high and low speeds
  • Main Pump Type/Model: Gear pump/06
  • Travel Hydraulic Motor: BM6-310
  • Swing Hydraulic Motor: BM2-250

Dimension

  • Operating Weight: 1.1 Ton (2,425 lbs)
  • Overall Length:  2,560 mm (100 in)
  • Overall Width:  965 mm (38 in)
  • Overall Height:  2,210 mm (87 in)
  • Track Size:  180*72*37 (Width*Pitch Length*Links)

Working Range

  • Max Digging Depth: 1,753 mm (69 in)
  • Max Digging Height:  2,667 mm (105 in)
  • Max Dumping Height:  1,905 mm (75 in)
  • Max Reach at Ground: 3,073 mm (121 in)
  • Blade Width:  900 mm (35 in)
  • Blade Height: 200 mm (8 in)
  • Blade Max Lifting Height: 380 mm (15 in)
  • Blade Max Drop Depth: 170 mm (6.7 in)

Engine

  • Engine Brand: B&S
  • Fuel Type: Gasoline (Direct Fuel injection)
  • Rated Power: 10 kW (13.3 HP)
  • Displacement: 420 cc
  • Fuel Capacity: 6.6 L (1.7 gal)
  • Hydraulic Flow Rate: 45 L/min (11.9 GPM)
  • Hydraulic Pressure: 16 MPa (2320 PSI)
  • Hydraulic Tank Capacity: 18 L (4.7 gal)
  • Battery: 12V, 45–60Ah

Features

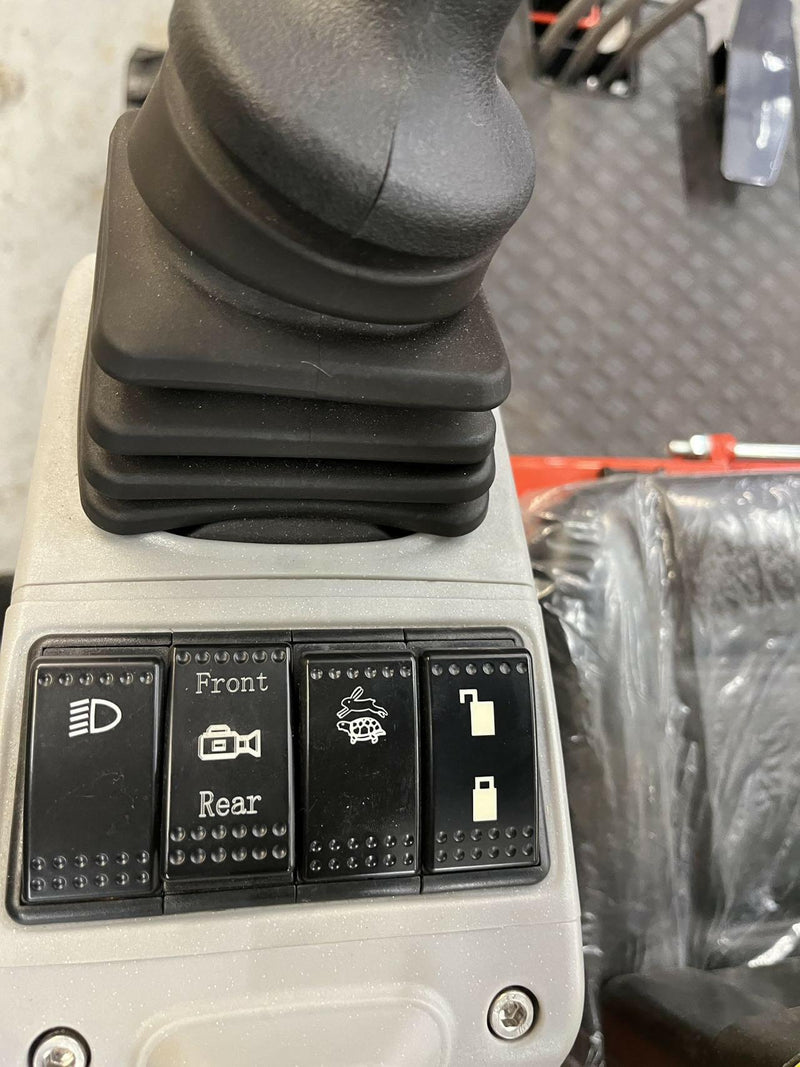

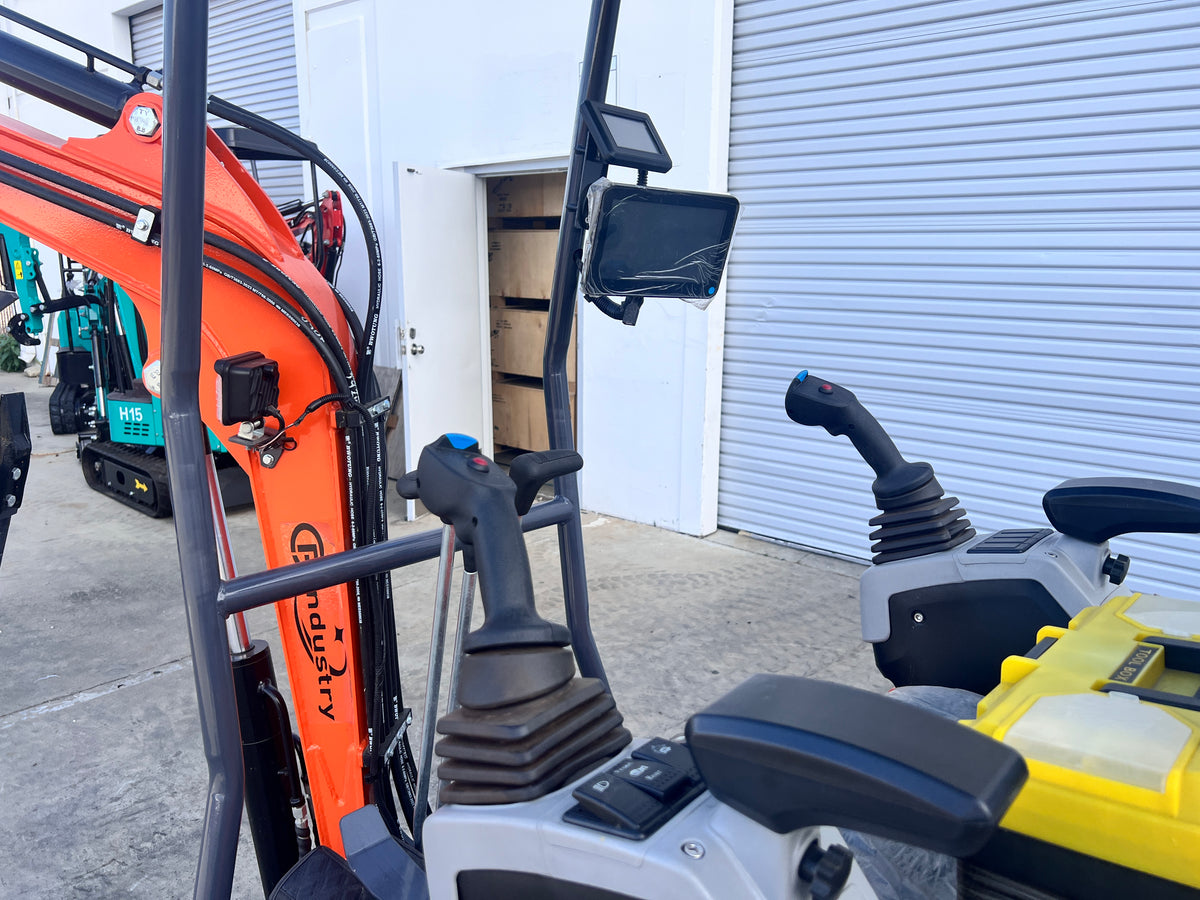

  • Pilot Control
  • Electric Fuel Injection
  • Dual Display
  • Front & Rear Camera

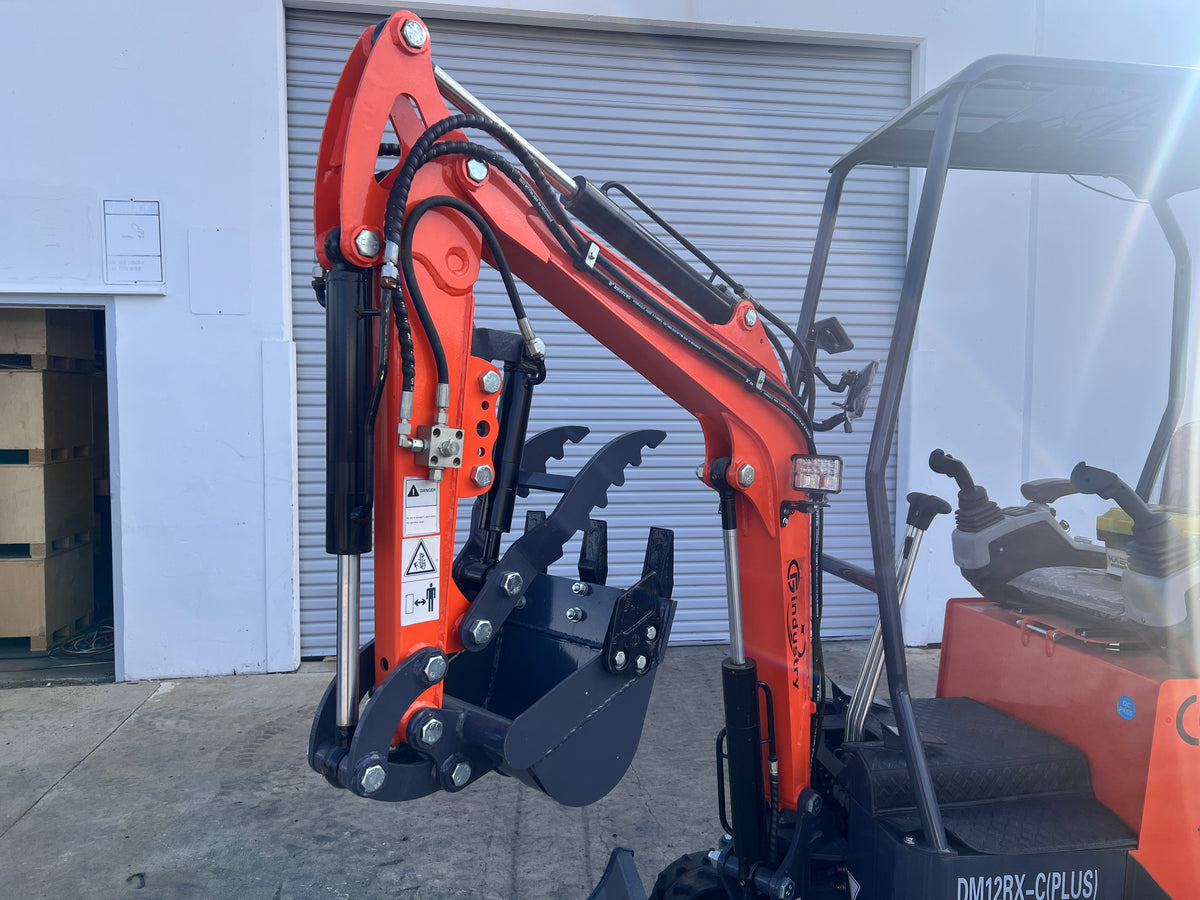

  • Hydraulic Thumb
  • Swing Boom
