SKU MX12-CRPLUS

1 Ton, Fuel Injection Engine Mini Excavator w/ Side Swing Boom and Pilot Control | MX12-CRPLUS

Name: 1 Ton, Fuel Injection Engine Mini Excavator w/ Side Swing Boom and Pilot Control | MX12-CRPLUS
Brand: AGT Equipment
SKU: MX12-CRPLUS
Price: 5666.57 USD
Availability: InStock

$5,666.57 - $5,666.57

$5,666.57

$5,666.57 - $5,666.57

$5,666.57

Quantity

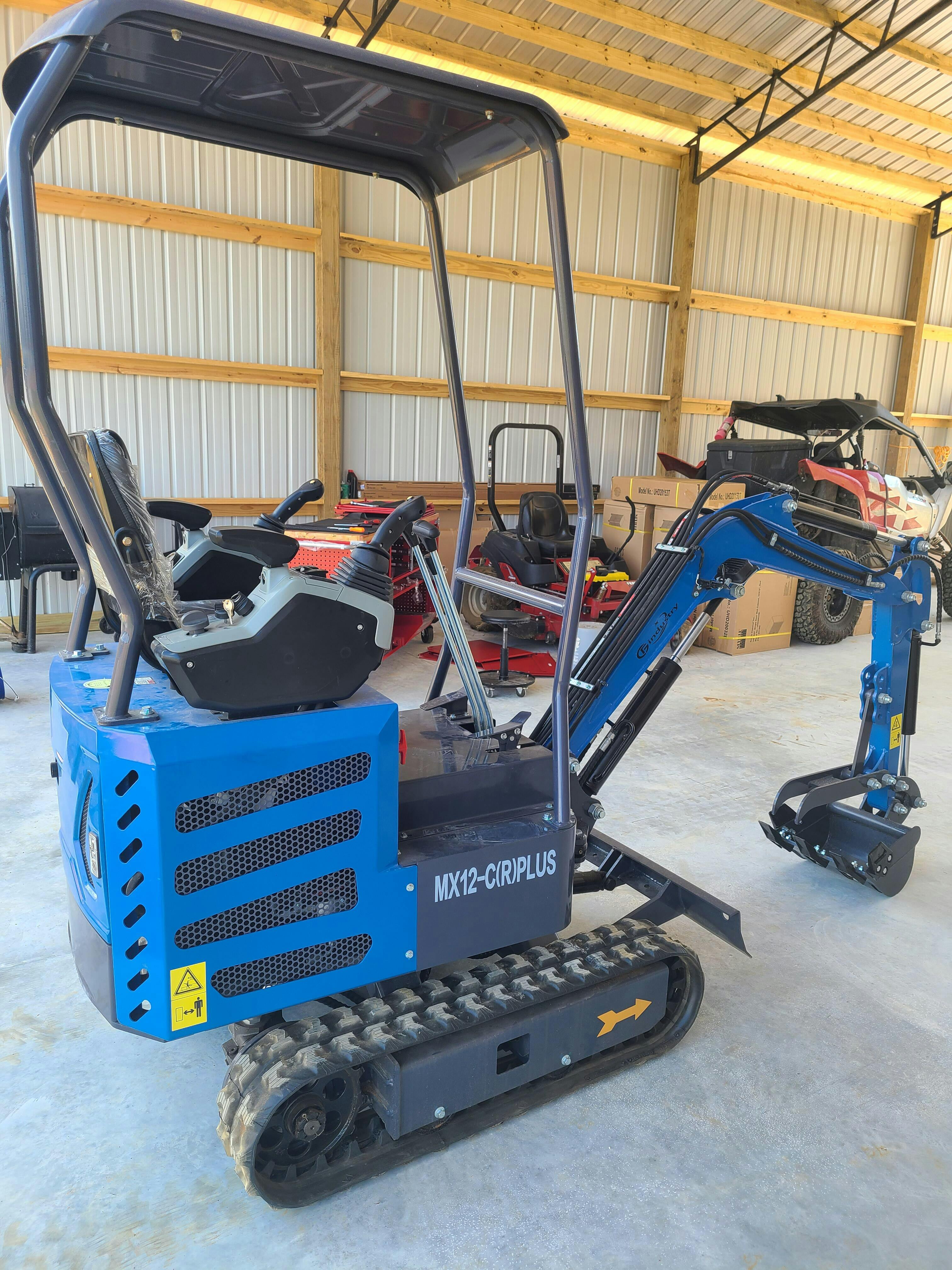

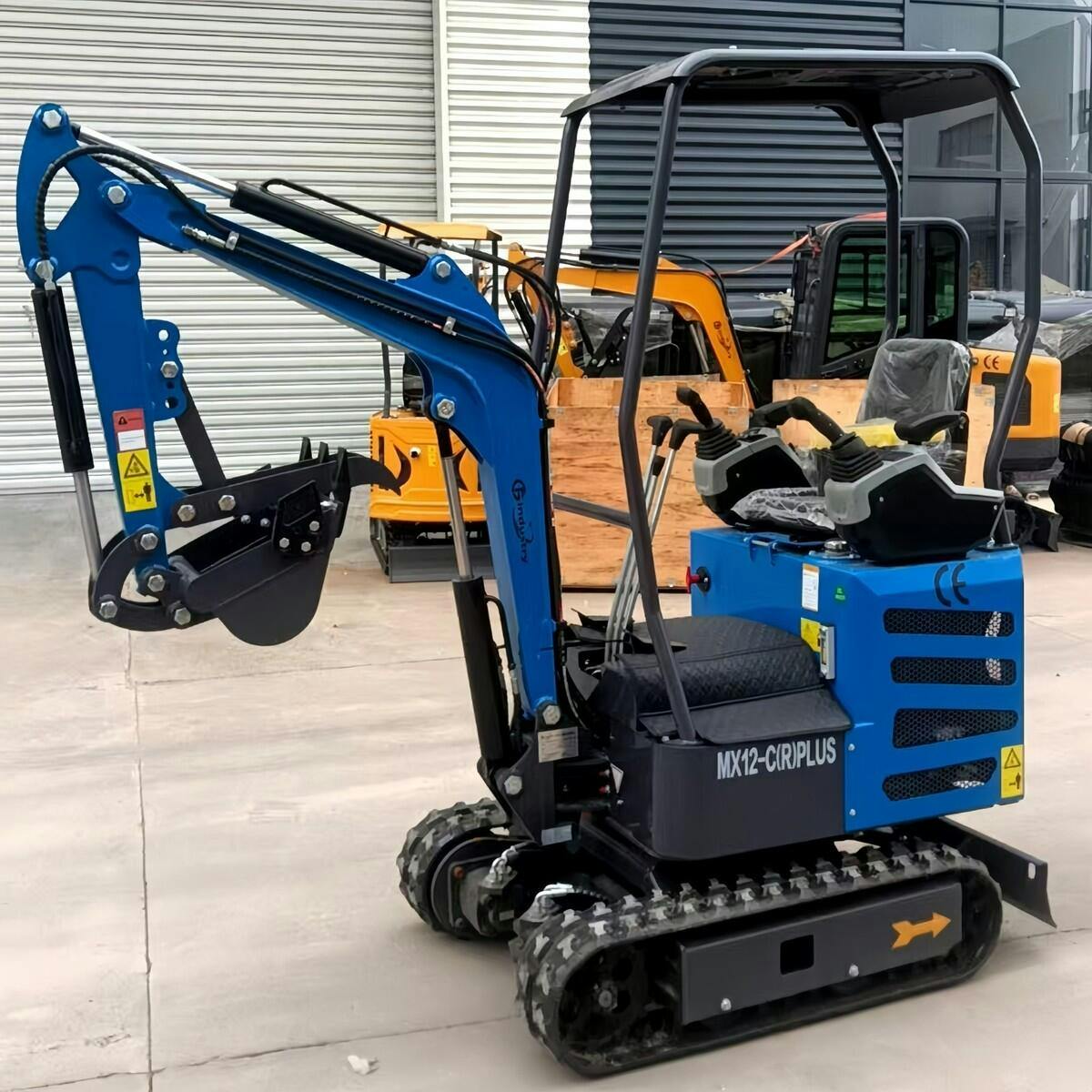

The MX12-CRPLUS is a compact crawler mini excavator designed for light construction, landscaping, and utility work. With its efficient engine, hydraulic system, and reinforced structure, it delivers dependable performance while remaining highly maneuverable. Its retractable undercarriage allows access to narrow job sites, making it ideal for urban and residential applications.

Dimension

Operating Weight: 0.8 Ton (1,600 lbs)
Overall Length: 2,800 mm (110 in)
Overall Width: 965 mm (38 in)
Overall Height: 2,210 mm (87 in)
Track Size: 180*72*37 (Width*Pitch Length*Links)

Working Range

Max Digging Depth: 1,760 mm (69 in)
Max Digging Height: 2,590 mm (102 in)
Max Dumping Height: 1,790 mm (70.5 in)
Max Reach at Ground: 2,600 mm (102.5 in)
Blade Width: 900 mm (35 in)
Blade Height: 180 mm (7 in)
Blade Max Lifting Height: 380 mm (15 in)
Blade Max Drop Depth: 170 mm ( in)

Features

Side Swing Boom
Pilot Control
Direct Fuel Injection Engine
LED Work Light

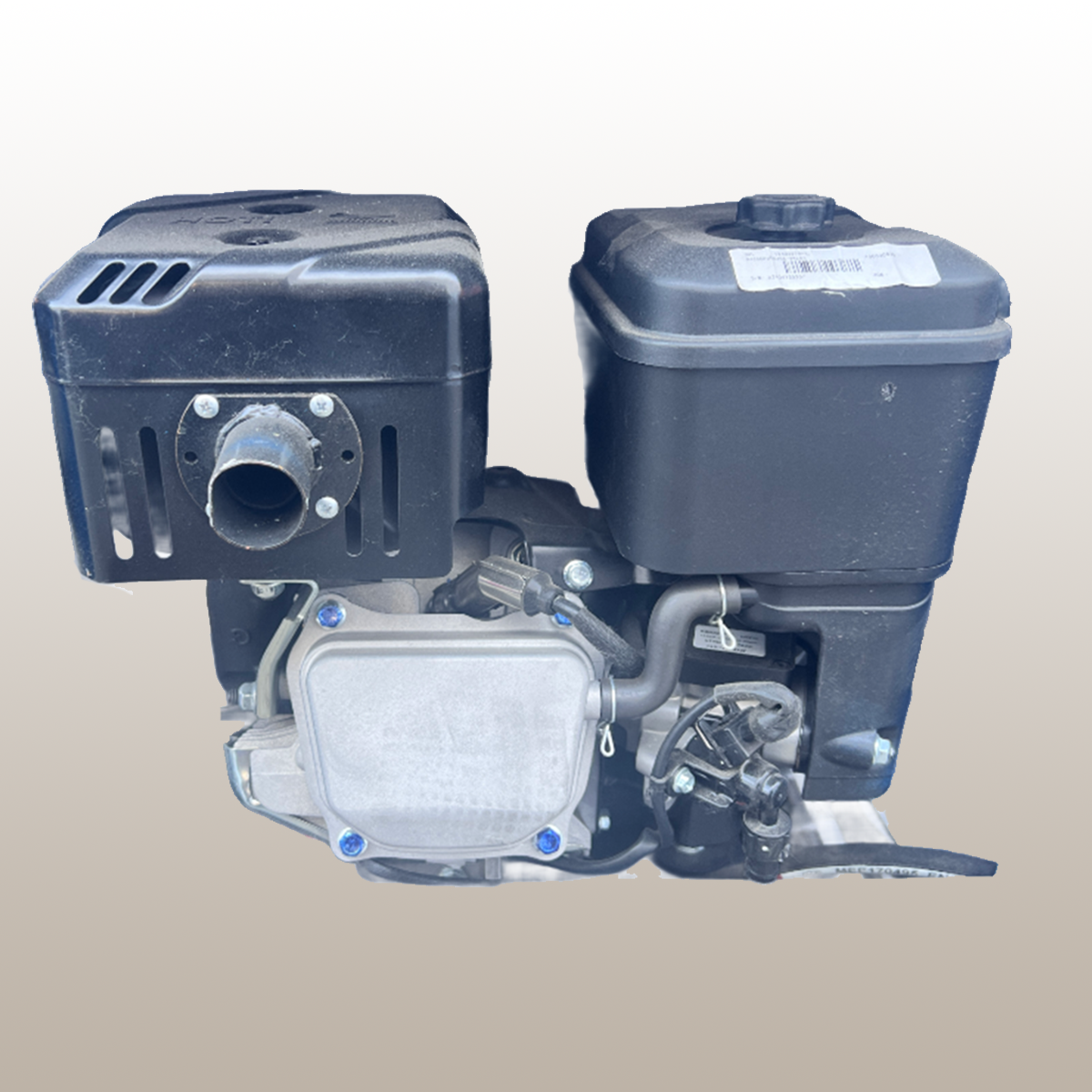

Engine

Engine Brand: Rato
Fuel Type: Gasoline
Model: R420D
Rated Power: 10.5 kW (13.5 HP)
Displacement: 420 cc
Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
Hydraulic Pressure: 16 MPa (2,320 PSI)
Hydraulic Tank Capacity: 18 L (3.7 gal)

FEATURES

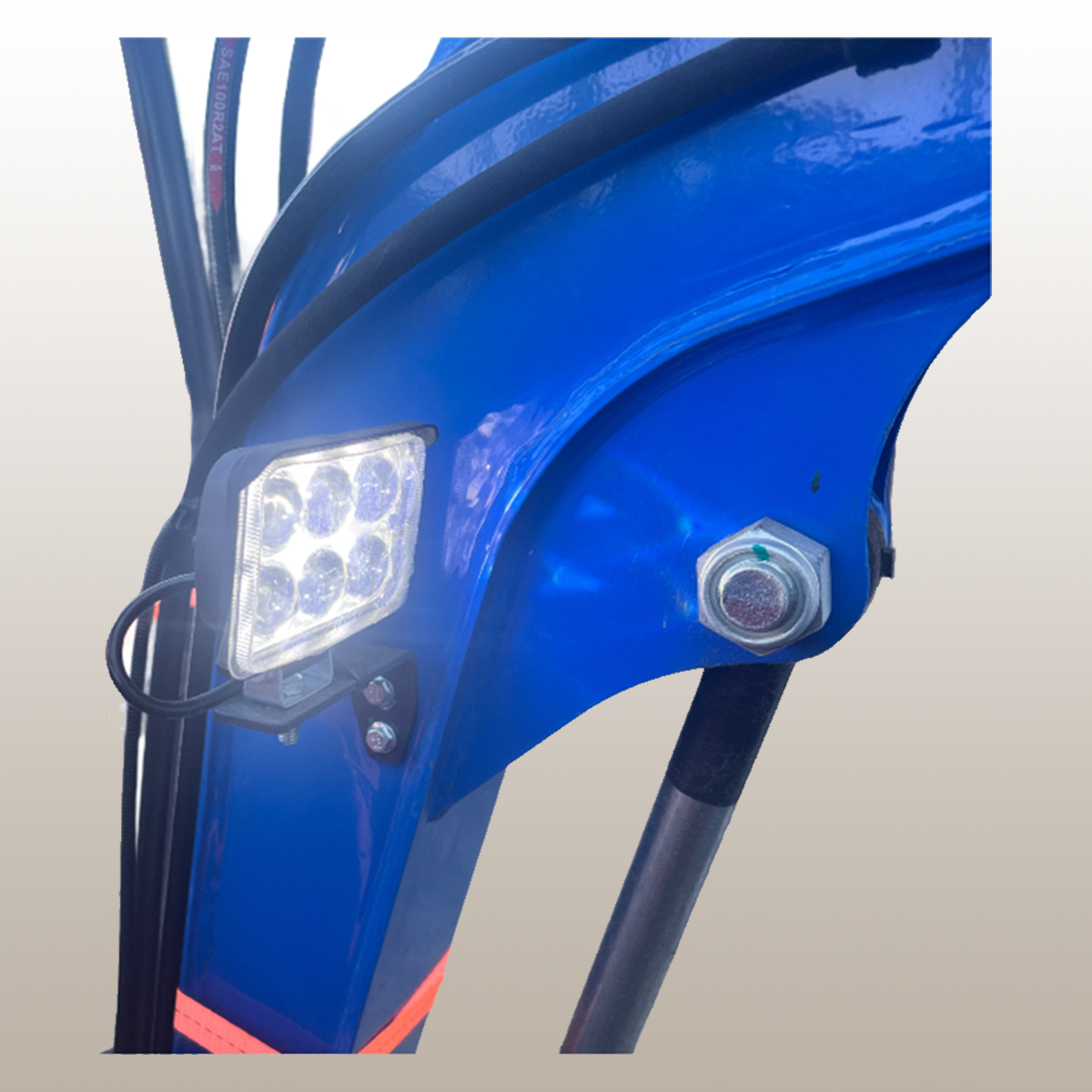

Lights

Bright, mounted work lights keep you productive even after dark.

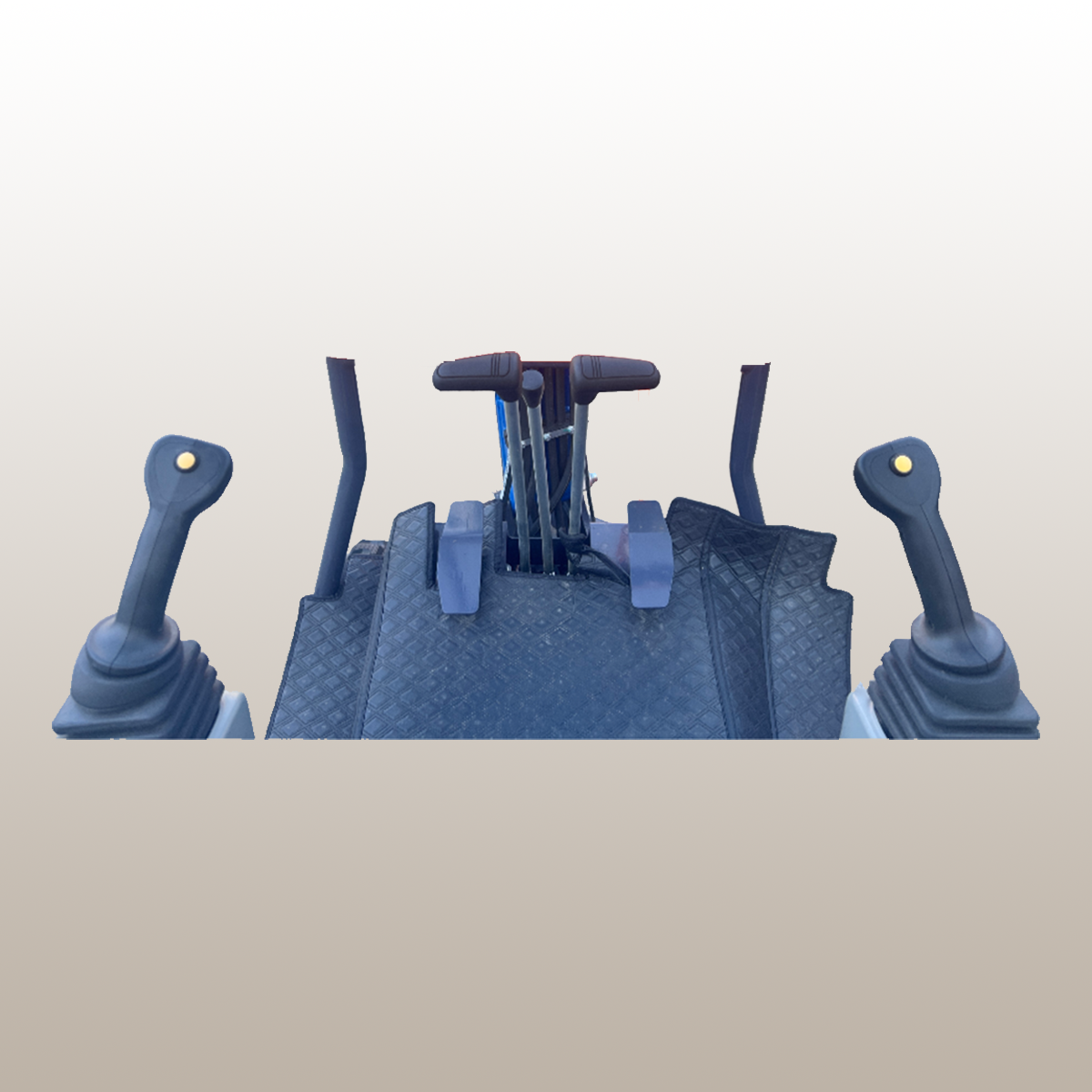

Pilot Control

Smooth, precise joystick operation for easier handling and less operator fatigue.

Direct Fuel Injection Engine

Delivers stronger power, better fuel efficiency, and reliable cold starts.

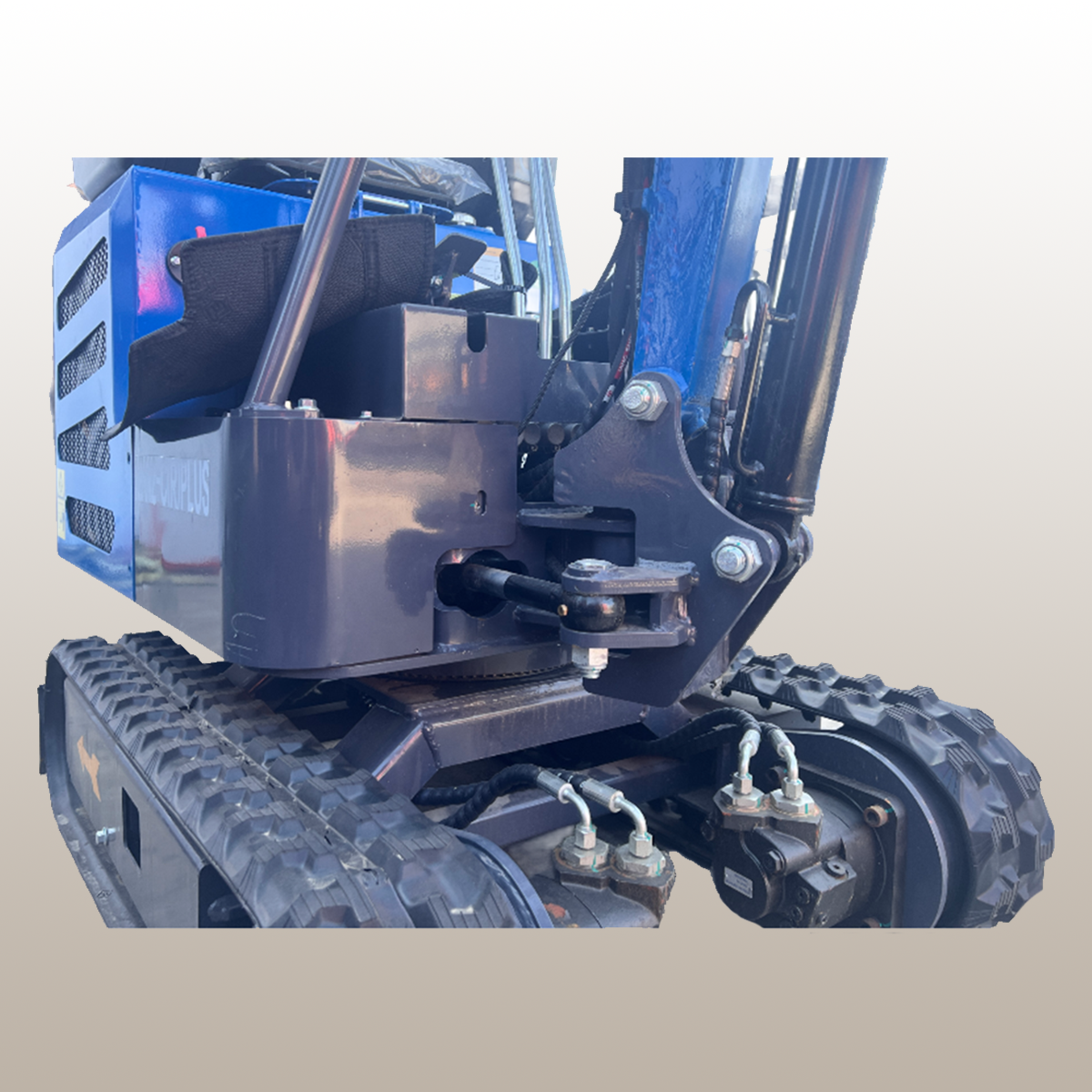

Side Swing Boom

Works tight against walls and obstacles for maximum versatility on the jobsite.
