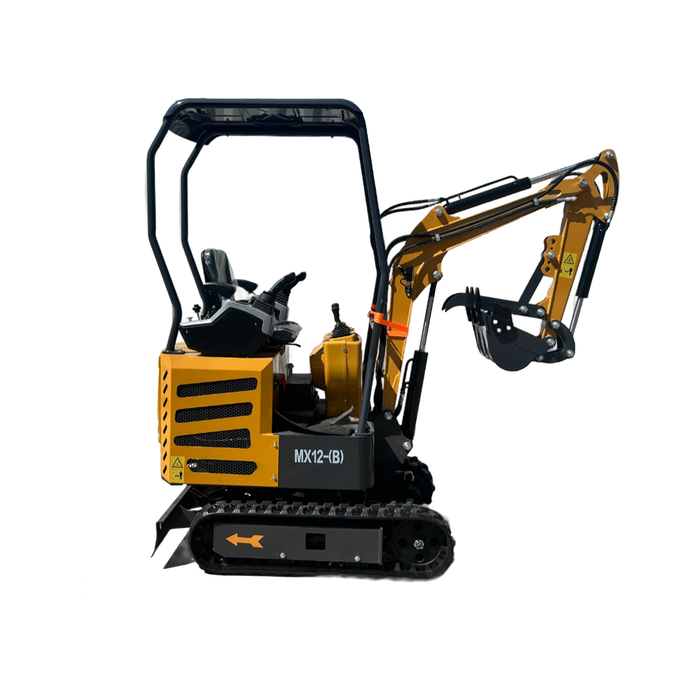

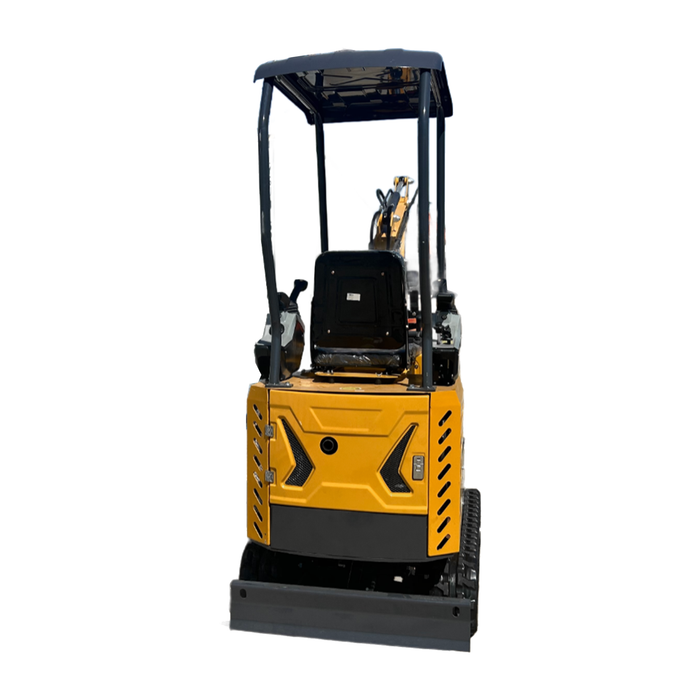

1 Ton, B&S Engine Mini Excavator | MX12-B

The AGT MX12-B is a lightweight, gasoline-powered mini excavator designed for tight-access applications like trenching, landscaping, and small property projects. It features a Briggs & Stratton XR2100 engine, fan cooling, and simplified operation with no side swing or undercarriage expansion. Despite its compact footprint, the MX12-B offers impressive reach, digging depth, and a 30% climbing ability, making it a practical choice for residential and light commercial use.

Technical Data

• Working Weight 840 kg

• Bucket Capacity 0.025 m³

• Travel Speed 0–2 km/h

• Climbing Ability 30%

• Maximum Digging Height 2589 mm

• Maximum Unloading Height 1789 mm

• Maximum Digging Depth 1764 mm

• Maximum Vertical Digging Depth 1280 mm

• Maximum Digging Radius 2605 mm

• Minimum Turning Radius 1395 mm

• Tail Minimum Turning Radius 813 mm

• Maximum Lifting Height of Bulldozer 383 mm

• Maximum Digging Height of Bulldozer 176 mm

• Side Swing No

• Side Swing Angle (L/R) No

• Undercarriage Expansion No

• Engine Brand Briggs & Stratton XR2100

• Maximum Power 9.8 kW

• Cooling Method Fan Cooling

• Fuel Type Gasoline
• Rated Set Pressure 16 MPa

• Main Pump Maximum Flow 21.6 L/min

• Overall Length 2802 mm

• Overall Width 962 mm

• Overall Height 2212 mm

• Wheelbase 900 mm

• Track Gauge 562 mm

• Bulldozer Width 900 mm

• Bulldozer Height 170 mm
