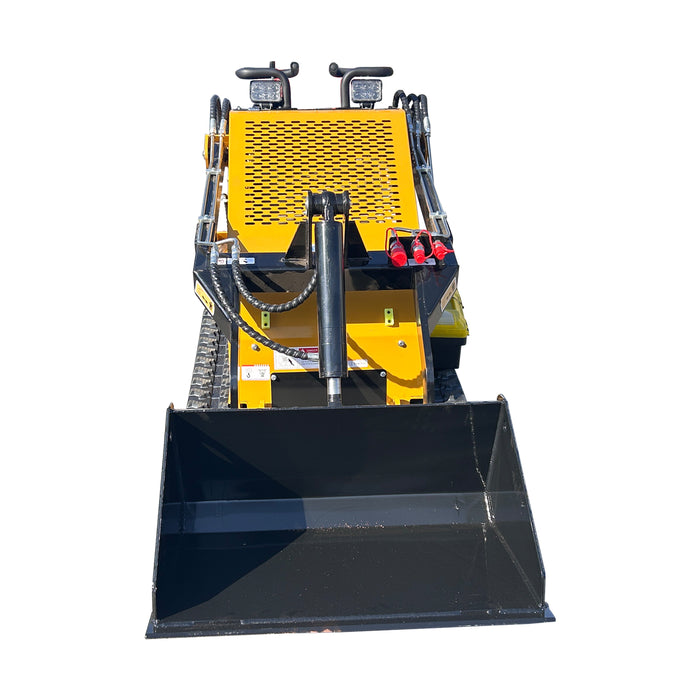

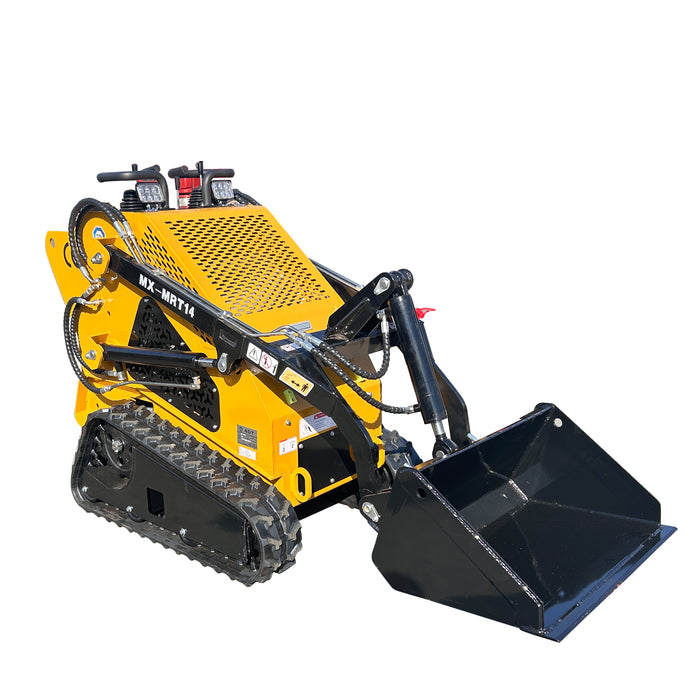

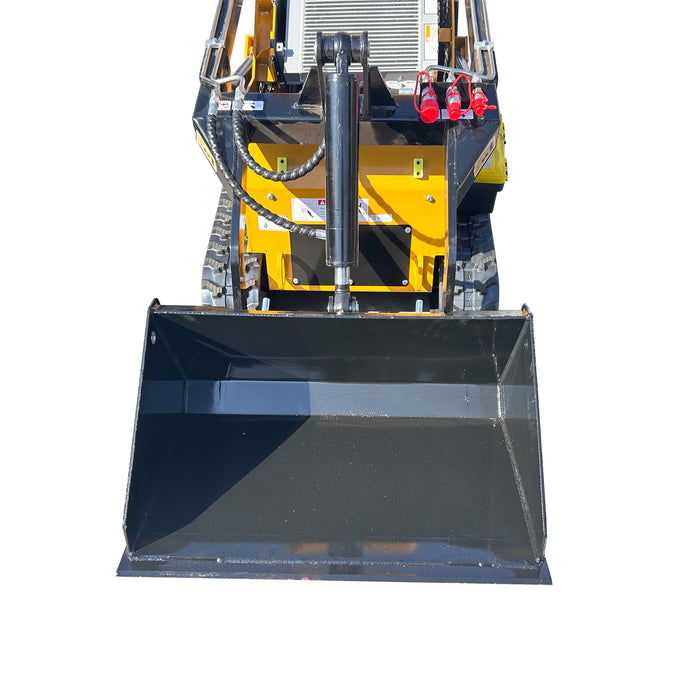

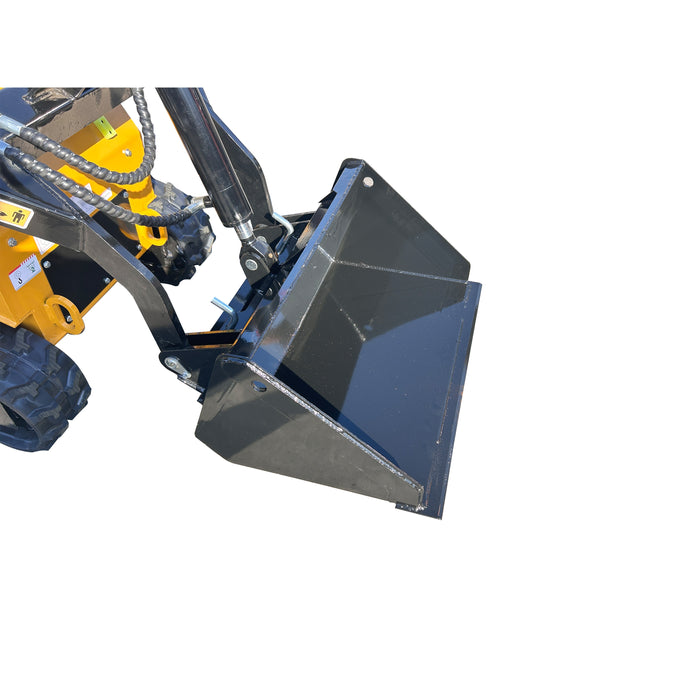

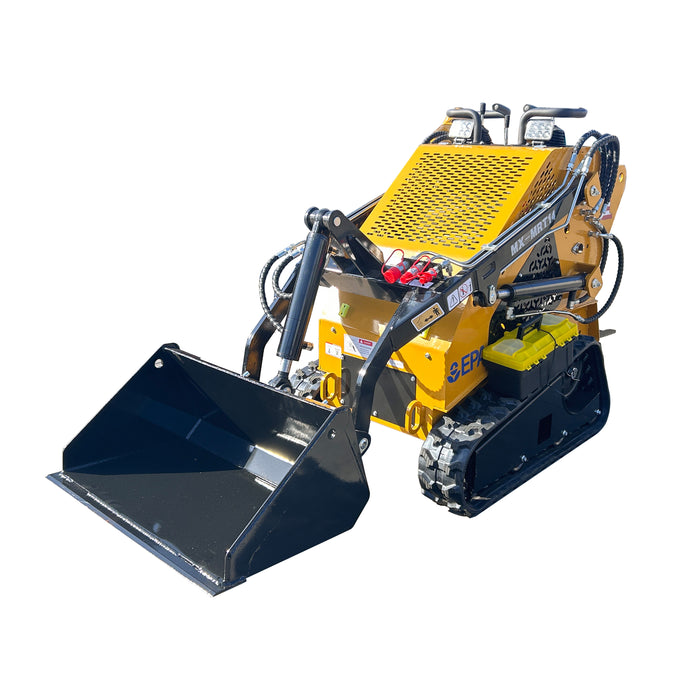

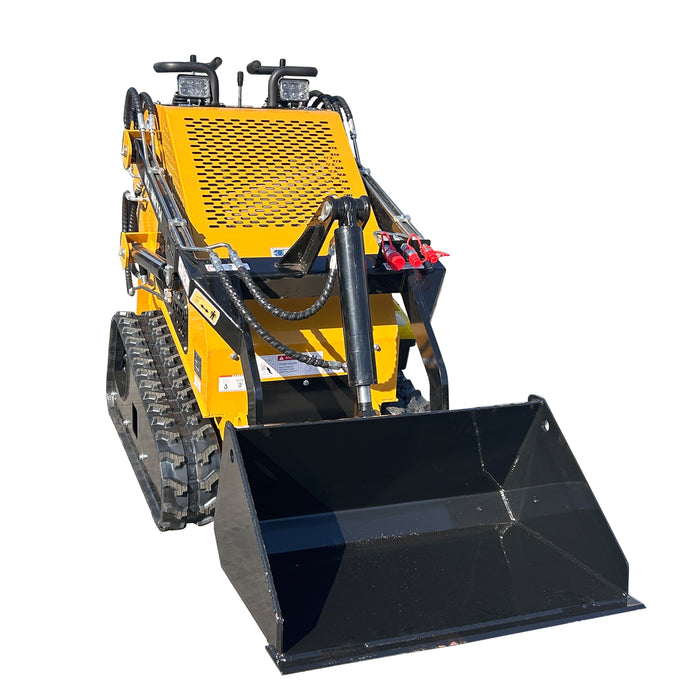

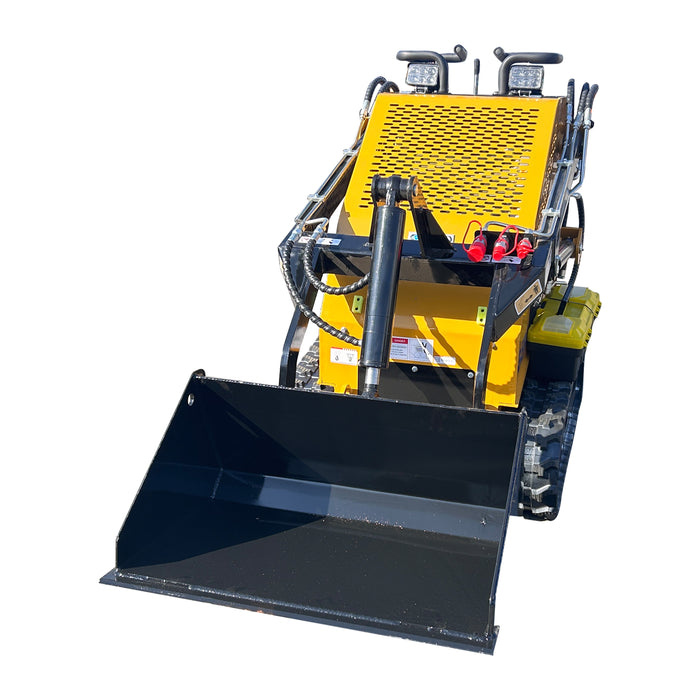

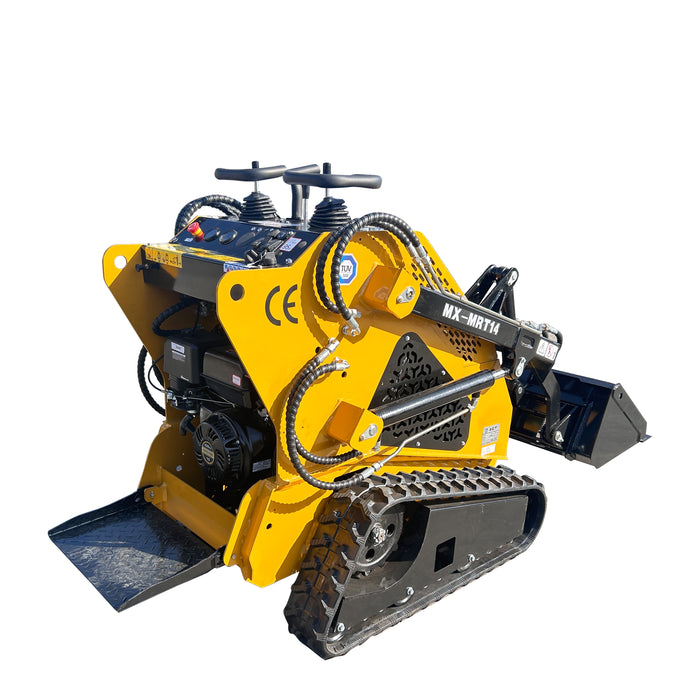

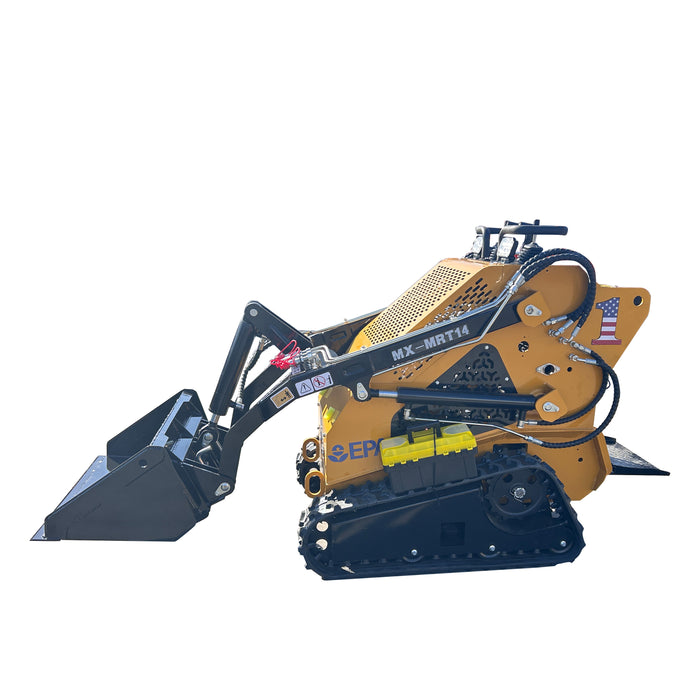

1 Ton, RATO Engine Mini Skid Steer | MX-MRT14

The MX-MRT14 is a lightweight and compact loader designed for efficient operation in small construction sites, farms, and landscaping projects. Despite its compact profile, it delivers reliable performance with a 700 kg working weight and a maximum lifting force of 200 kg, making it ideal for light-duty material handling and confined workspaces.

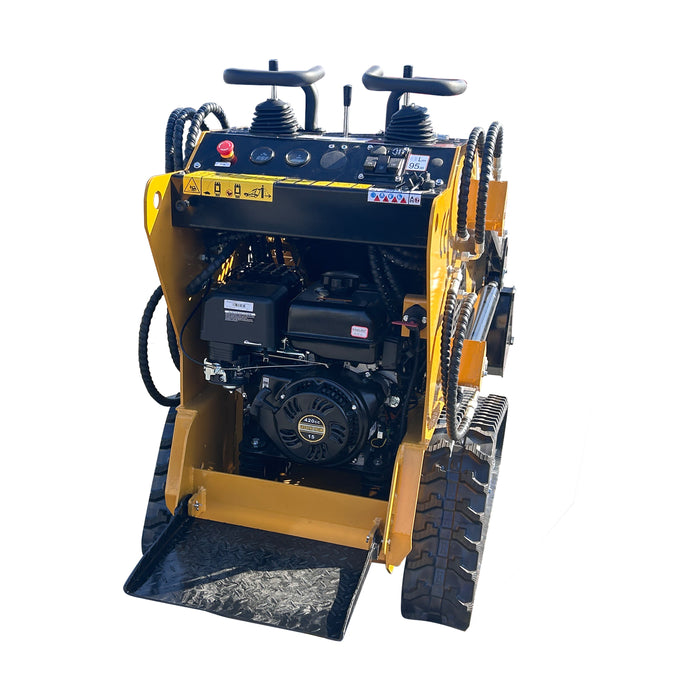

Equipped with a Rato R420D gasoline engine, this model produces 13.5 HP and features fan cooling for consistent operation. Its 0.1 m³ bucket capacity, 4 km/h travel speed, and 23° bucket discharge angle offer excellent control and versatility for various loading tasks.

Technical Data
Operating Weight 700 kg
Bucket Capacity 0.1 m³
Travel Speed Up to 4 km/h
Max Lifting Force 200 kg
Max Working Height 2285 mm
Max Pin Height 1967 mm
Max Unloading Height 1575 mm
Loading Distance at Max Height 661 mm
Wheelbase 905 mm
Ground Clearance 163 mm
Bucket Discharge Angle 23°

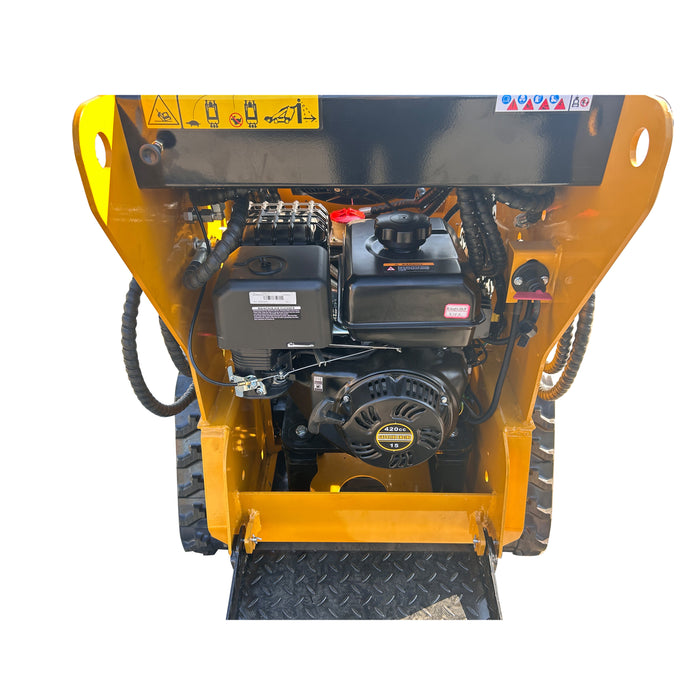

Engine
Engine Brand Rato
Engine Model R420D
Max Horsepower 13.5 HP
Max Power 9.8 kW
Max Speed 3600 rpm
Cylinders 1
Cooling Method Fan cooling
Fuel Type Gasoline
Fuel Grade 92#
Engine Oil Capacity 1.1 L

Tracks
Rubber Tracks 1807237 (△ Optional)

Fuel & Hydraulics
Fuel Tank Capacity 6.6 L
Hydraulic Oil Tank 33 L

Dimensions
Overall Length 2135/2432 mm
Overall Width 904 mm
Overall Height 1364 mm
Bucket Width 1120 mm
Body Width 810 mm
Slewing Radius 1493 mm
