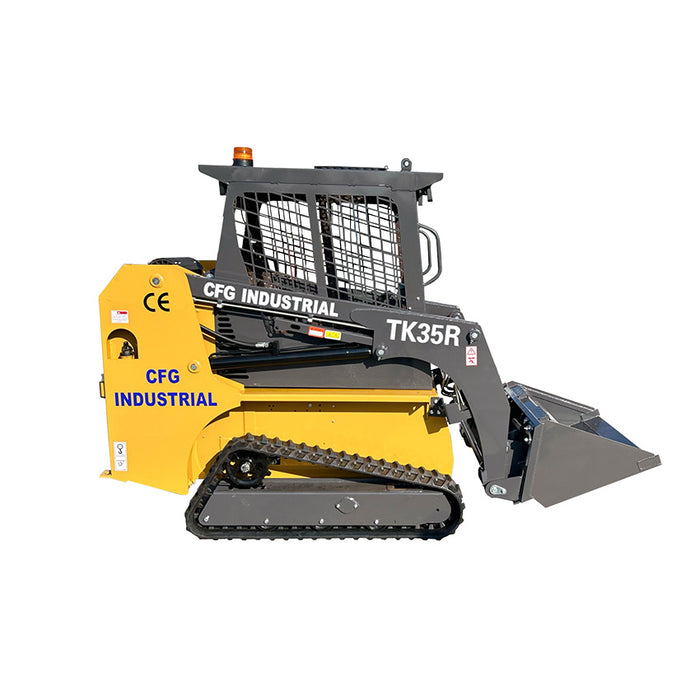

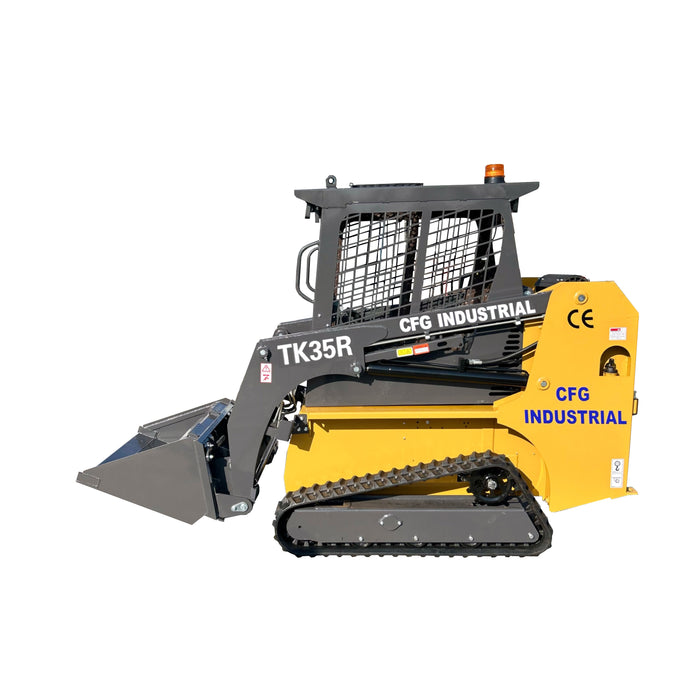

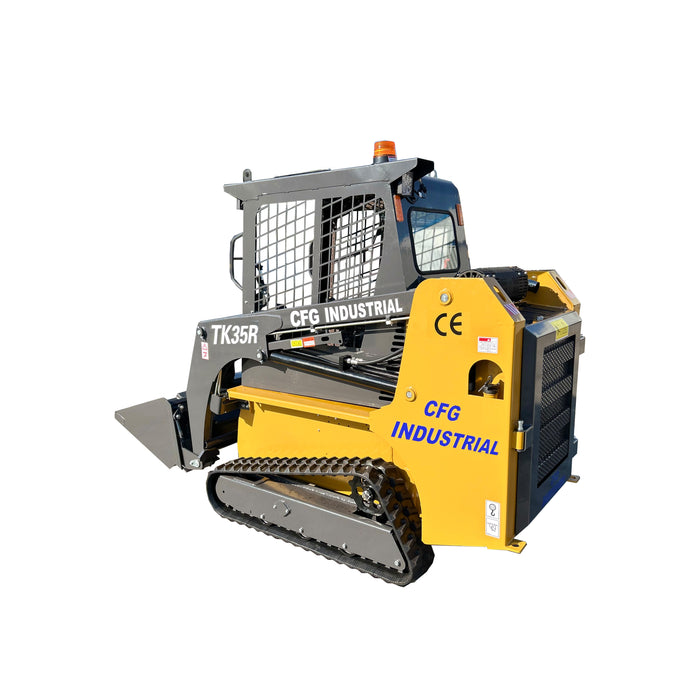

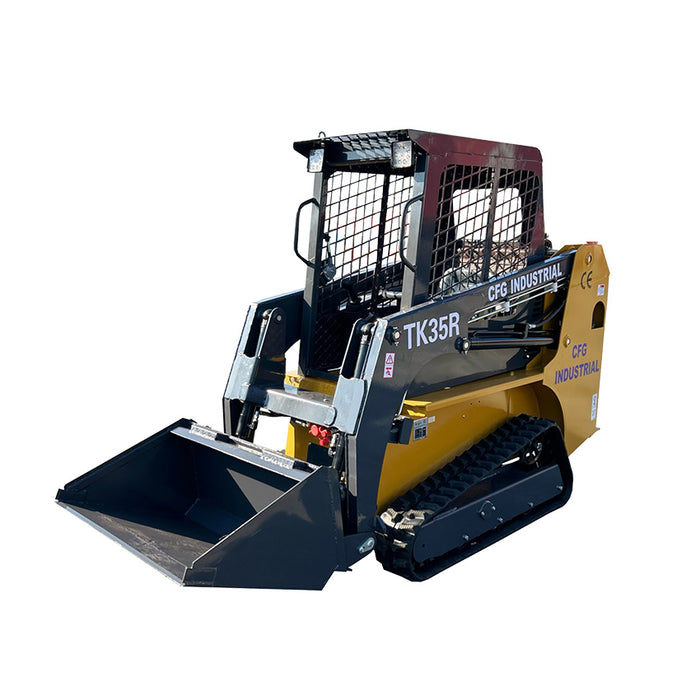

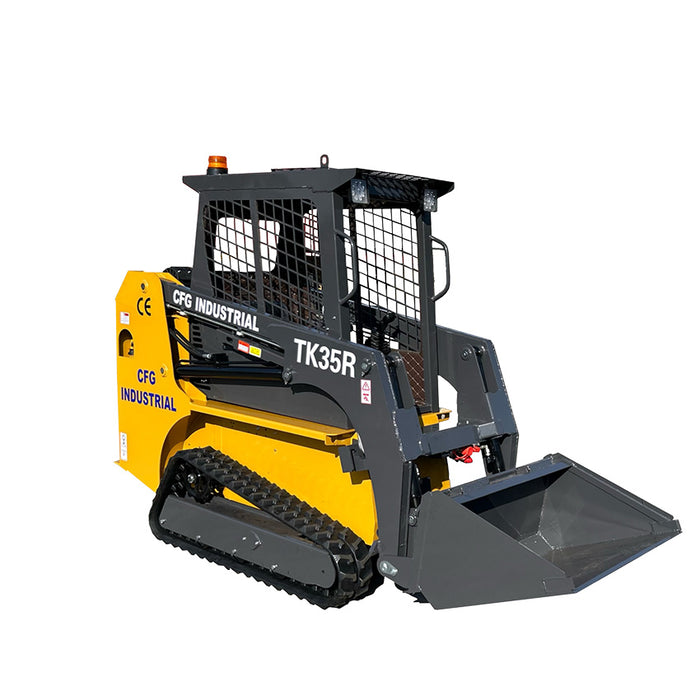

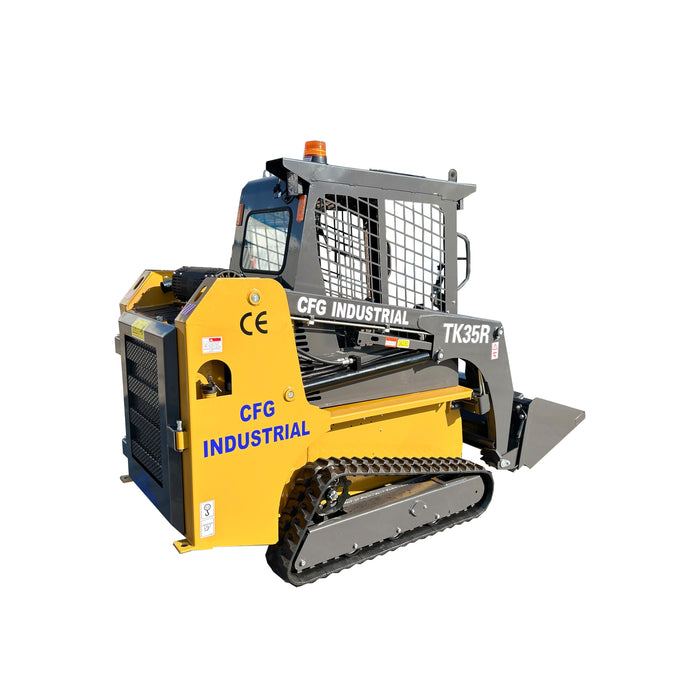

1.5 Ton, RATO Engine Skid Steer | CFG-TK35R
SKU CFG-TK35R

1.5 Ton, RATO Engine Skid Steer | CFG-TK35R

Sale Sale
$13,400.00
$13,400.00 - $13,400.00
$13,400.00
$12,730.00
$12,730.00 - $12,730.00
$12,730.00

The AGT TK35R is a compact and powerful skid steer loader engineered for tight job sites and versatile operations. With a 1550 kg operating weight, 380 kg lift force, and a 0.16 m³ bucket, it’s ideal for landscaping, site prep, and farm use. The TK35R features a high-discharge bucket with a 40° tipping angle, making it efficient for loading and dumping.

Technical Data:

  • Bucket Capacity: 0.16 m³
  • Max Lifting Force: 380 kg
  • Max Working Height: 3686 mm
  • Max Unloading Height: 1933 mm
  • Reach at Max Unloading Height: 650 mm
  • Wheelbase: 1127 mm
  • Ground Clearance: 145 mm
  • Bucket Discharge Angle: 40°

Dimension

  • Operating Weight: 1.5 Ton ( 3,307 lb)
  • Overall Length: 2,911 mm (114.5 in)
  • Overall Width: 912 mm (36 in)
  • Overall Height: 910 mm (36 in)
  • Bucket Width: 914 mm (36 in)
  • Bucket Capacity: 0.16 m³ (0.2 yd³)
  • Tracks Size: 200*72*45(W*P*L)

Working Range

  • Max Working Height: 3,686 mm (145 in)
  • Max Unloading Height: 1,933 mm (76 in)
  • Max Lifting Force: 380 kg (838 lb)
  • Max Travel Speed: 9 km/h (5.6 mph)

Engine

  • Brand / Model: Rato 999D
  • Fuel Type: Gasoline
  • Max Power: 18.2 kW (24.4 HP)
  • Displacement: 999 cc
  • Fuel Tank: 28 L (7.4 gal)
  • Hydraulic Tank Capacity:  40 L (10.5 gal)
