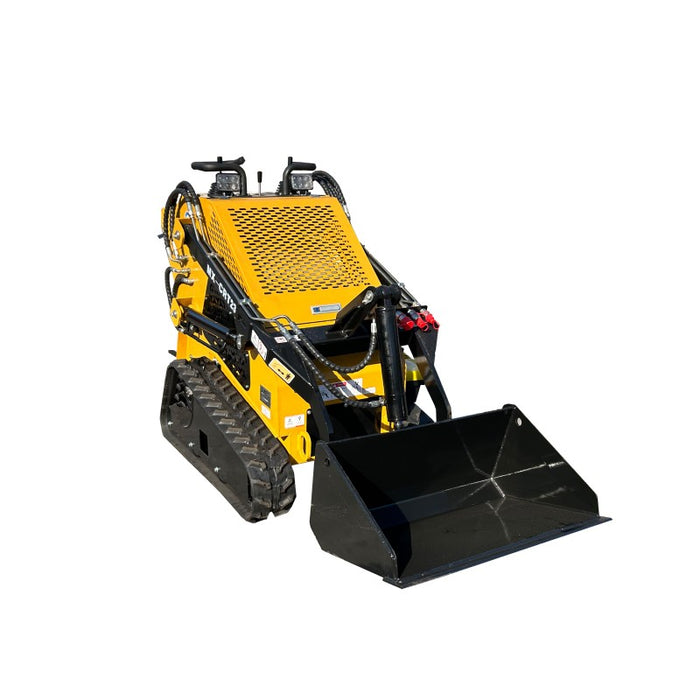

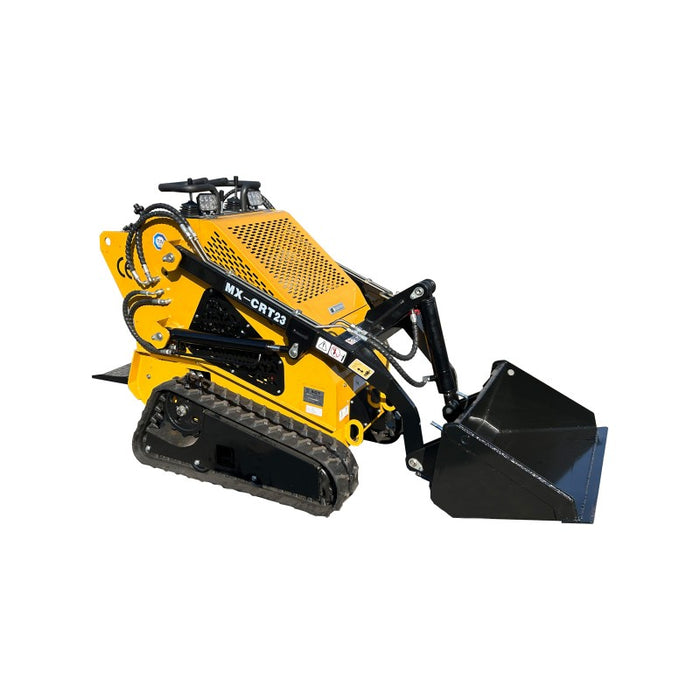

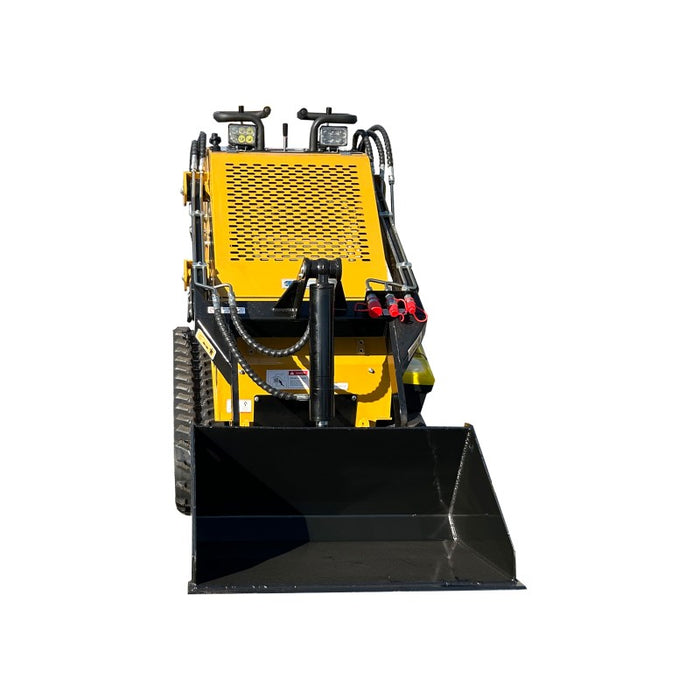

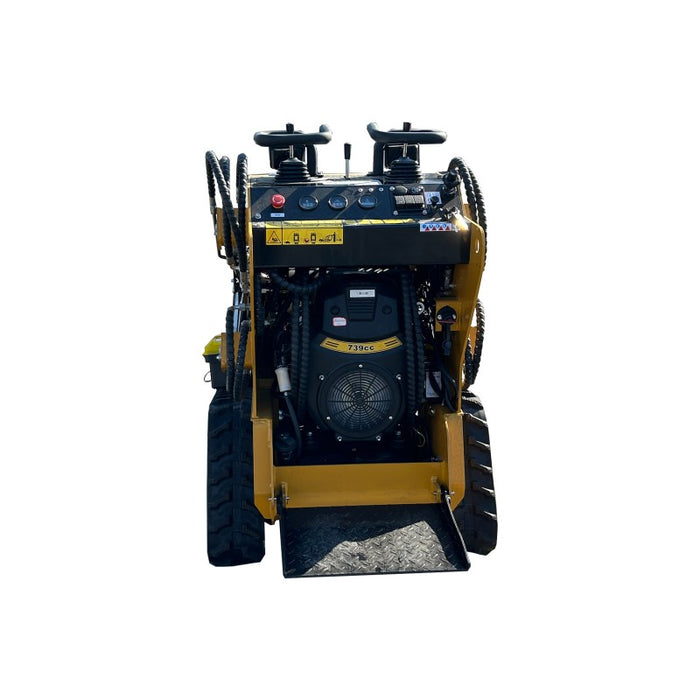

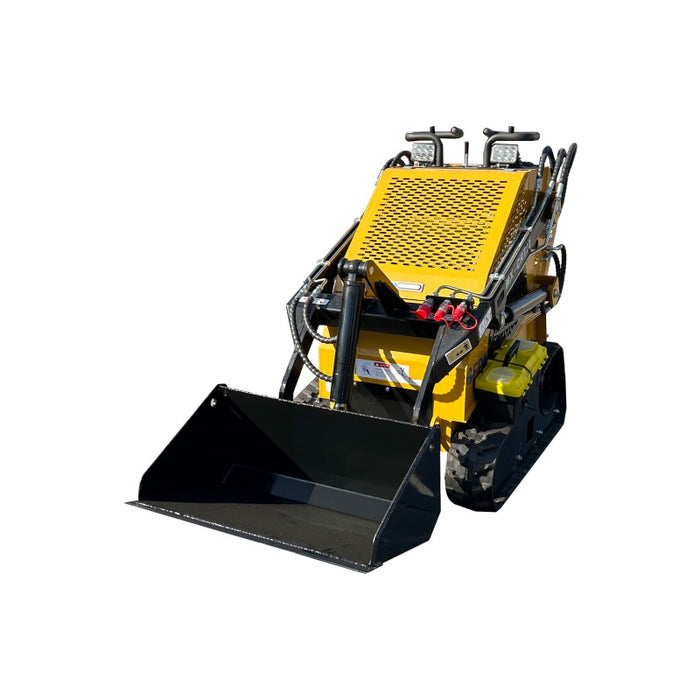

1 ton, RATO engine Mini Skid Steer | MX-CRT23

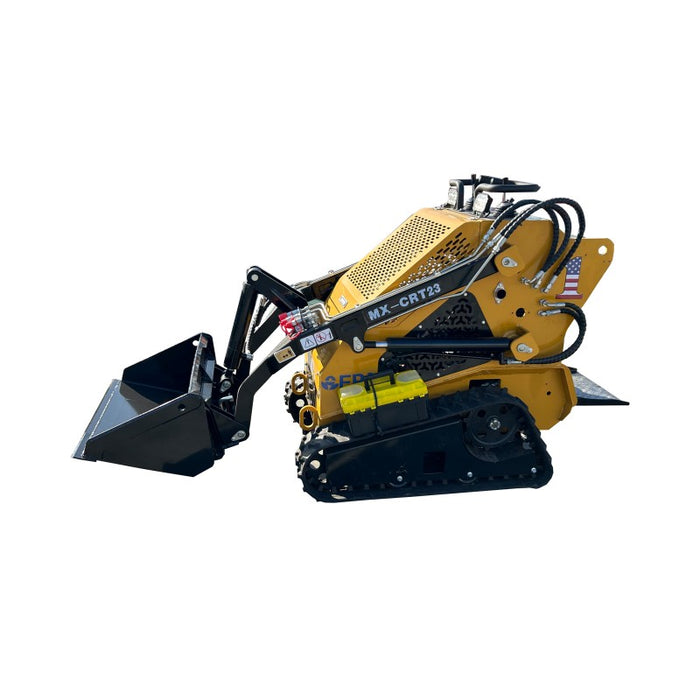

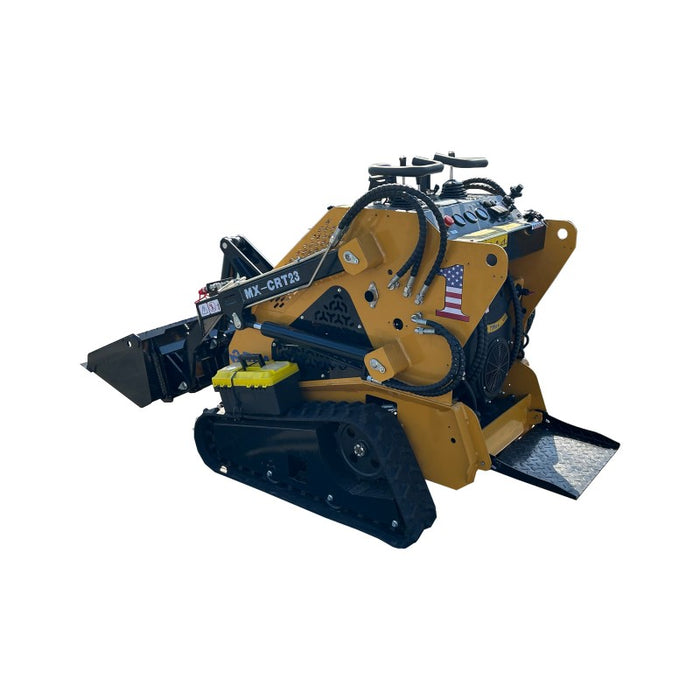

The AGT MX-CRT23 is a compact tracked loader built for light-duty material handling, landscaping, and site prep. With a 685 kg operating weight and 200 kg lift force, it’s ideal for tight-access applications that require maneuverability and control. The rubber-tracked undercarriage and 23° bucket discharge angle provide stability during unloading tasks.

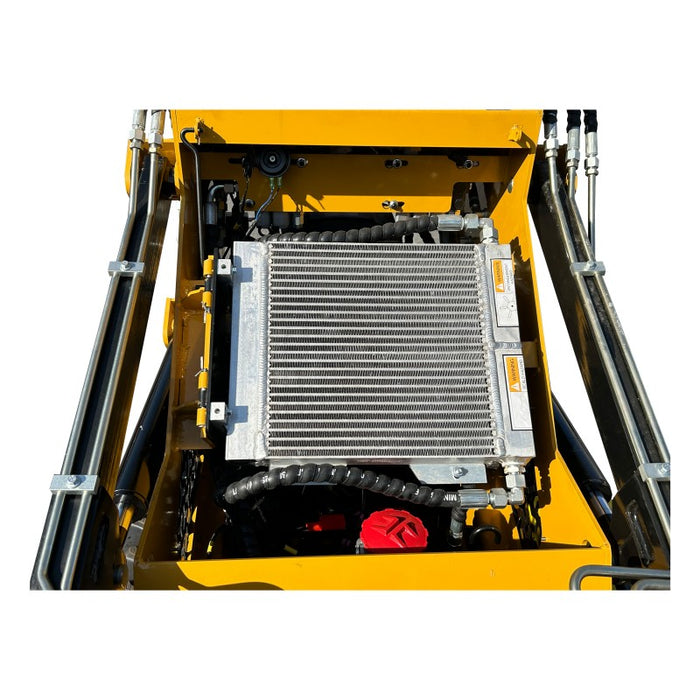

Powered by a fan-cooled Rato R740D gasoline engine, the MX-CRT23 delivers reliable performance and simplified maintenance, all in a space-saving footprint.

Technical Data:

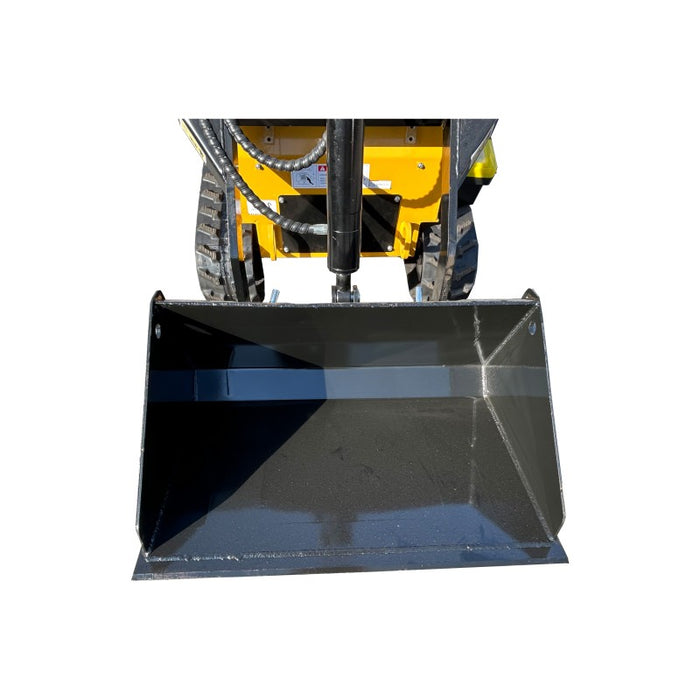

• Bucket Capacity: 0.1 m³

• Travel Speed: 4 km/h

• Max Lifting Force: 200 kg

• Max Working Height: 2285 mm

• Max Pin Height: 1967 mm

• Max Unloading Height: 1575 mm

• Reach at Max Unloading Height: 661 mm

• Wheelbase: 905 mm

• Ground Clearance: 163 mm

• Bucket Discharge Angle: 23°

Engine:

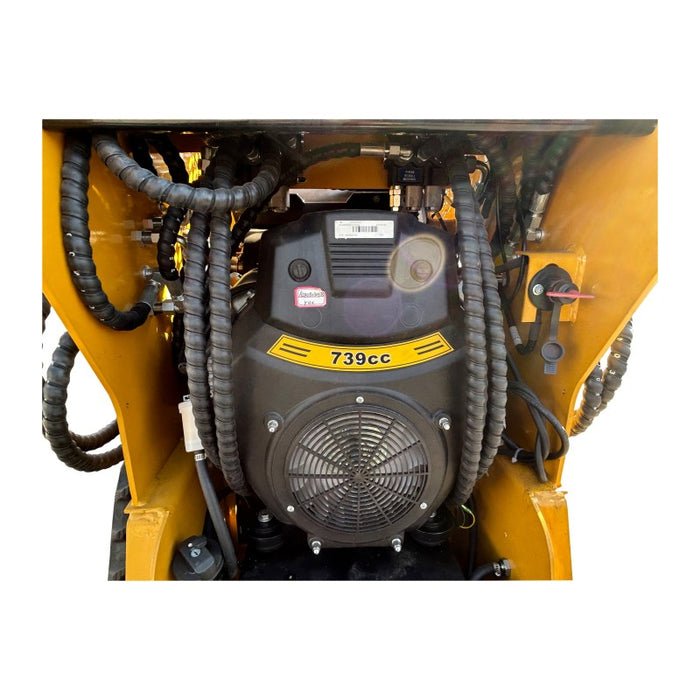

• Rato R740D (2-cylinder, fan-cooled gasoline)

• Max Horsepower: 24 ps

• Max Power: 17 kW @ 3600 rpm

• Fuel Type: 92# Gasoline

• Fuel Tank: 19.6 L

• Engine Oil Capacity: 1.6 L

Tracks:

• Rubber Tracks – 180 mm * 72 pitch * 37 sections

Dimensions:

• Bucket Width: 1120 mm

• Overall Length: 2135 / 2432 mm

• Overall Width: 904 mm

• Overall Height: 1364 mm

• Body Width: 810 mm

• Slewing Radius: 1493 mm

• Hydraulic Tank: 33 L
