1.8 Ton, Kubota Engine Mini Excavator | KU18EC
SKU KU18EC

1.8 Ton, Kubota Engine Mini Excavator | KU18EC

Sold out
$12,500.00 - $12,500.00
$12,500.00
$12,500.00 - $12,500.00
$12,500.00

The KU-18E Mini Excavator, powered by a Kubota engine and weighing 1.8 tons, delivers robust performance, precision, and durability for construction, landscaping, and utility projects, with ergonomic controls for maximum efficiency.

Technical Data:

  • Operation Weight: 1.8 Ton
  • Engine: Kubota Engine
  • Horse Power: 13.5

Specific Data:

Engine:

  • Brand: Kubota
  • Horsepower: 13.5 HP
  • Cooling Method: Liquid Cooling
  • Number of Cylinders: 3
  • Maximum Speed: 3,600 RPM
  • Fuel Type: Diesel

Dimensions:

  • Total Length: 2,925 mm
  • Overall Width: 958 mm
  • Total Height: 2,422 mm
  • Operating Specifications:
  • Operating Weight: 1.8 tons
  • Bucket Capacity: 0.04 m³
  • Maximum Digging Depth: 2,120 mm
  • Maximum Digging Height: 3,310 mm
  • Maximum Unloading Height: 2,370 mm
  • Maximum Digging Radius: 3,640 mm
  • Climbing Ability: 30%
  • Swing Speed: 9 RPM
  • Side Swing Angle (Left/Right): 60°/50°

Hydraulic System:

  • Rated Set Pressure: 25 MPa
  • Main Pump Type: GP510803
  • Maximum Flow Rate of Main Pump: 21.6 L/min
  • Multi-Circuit Valve: 4 mechanical + 4 hydraulic
  • Rotary Hydraulic Motor Type: BM2-315
  • Traveling Hydraulic Motor Type: BM6-315

Capacities:

  • Tensioning Form: Hydraulic Tensioning

Dimension

  • Operating Weight: 1.8Ton (3,968 lbs)
  • Overall Length: 2,925 mm (115 in)
  • Overall Width: 958 mm (38 in)
  • Overall Height: 2,422 mm (95 in)
  • Track Size: 220*72*42 (Width*Pitch Length*Links)

Working Range

  • Max Digging Depth: 2,120 mm (83 in)
  • Max Digging Height: 3,310 mm (130 in)
  • Max Dumping Height: 2,370 mm (93 in)
  • Max Reach at Ground:  mm ( in)
  • Blade Width:  mm ( in)
  • Blade Height: mm ( in)
  • Blade Max Lifting Height: mm ( in)
  • Blade Max Drop Depth: mm ( in)

Engine

  • Engine Brand: Kubota
  • Fuel Type: Diesel
  • Model: D722-EF18
  • Rated Power: 10 kW (13.5 HP)
  • Displacement: 720 cc
  • Fuel Capacity: L ( gal)
  • Fuel Consumption: L/hr
  • Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
  • Hydraulic Pressure: 25 MPa (3,626 PSI)
  • Hydraulic Tank Capacity: L ( gal)

Features

  • Hydraulic Tensioning
  • LED Light
  • Pilot Control

FEATURES

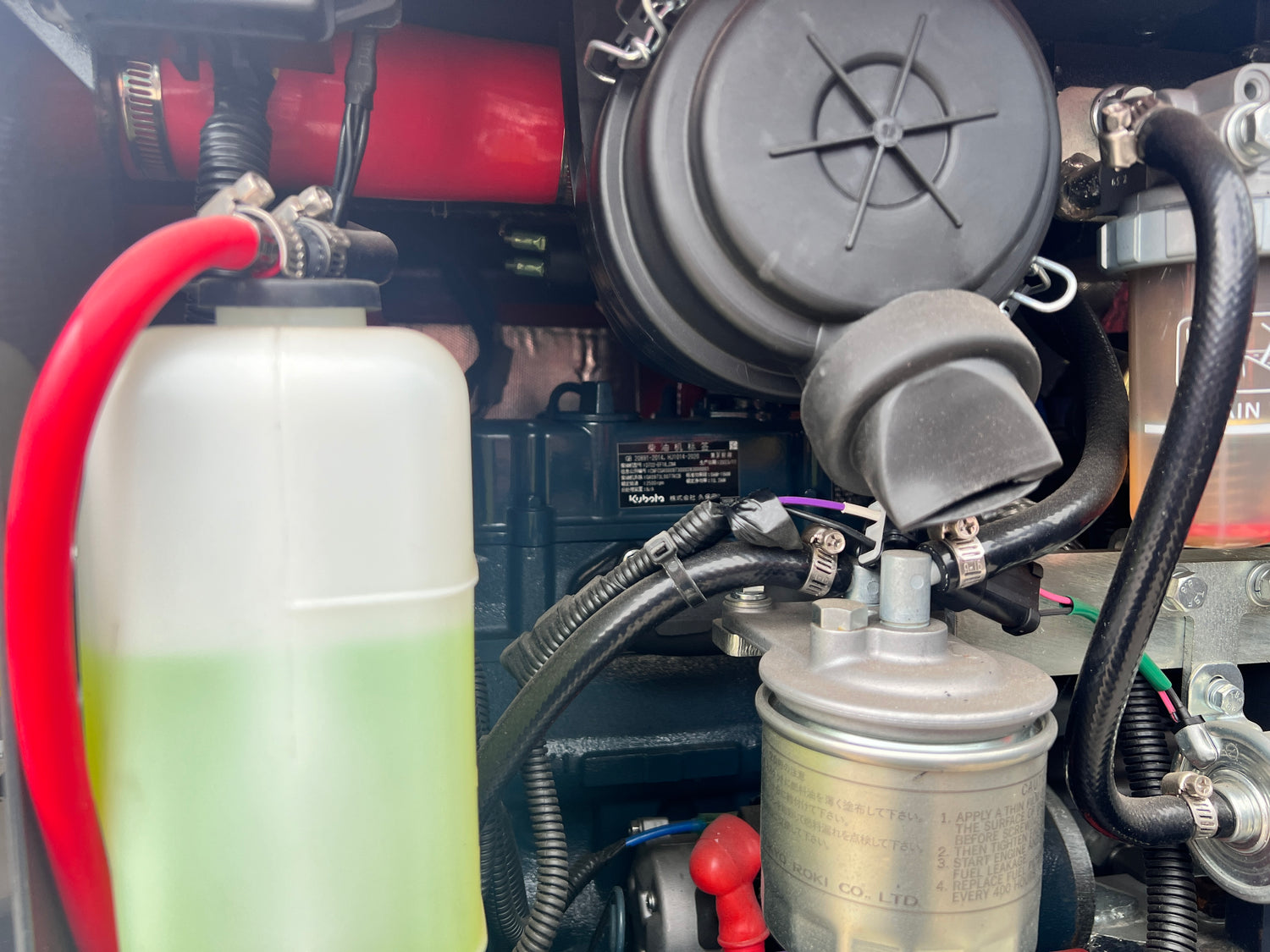

Kubota D722 Diesel Engine

Kubota D722 Diesel Engine

Powered by Kubota engine with 720 cc displacement and 14 HP

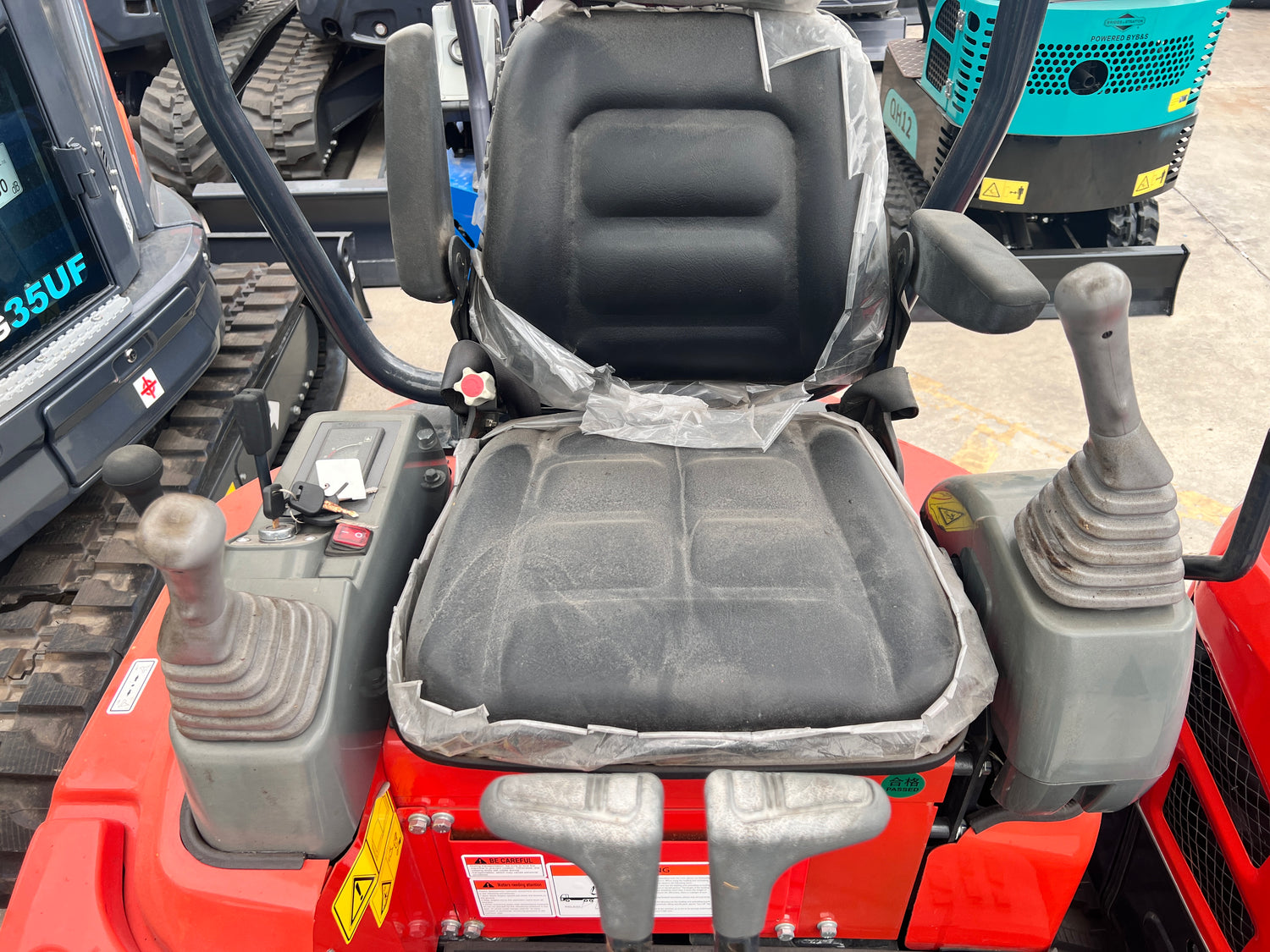

Pilot Control

Pilot Control

Enables relaxed operations without having to reach the controls in the front.

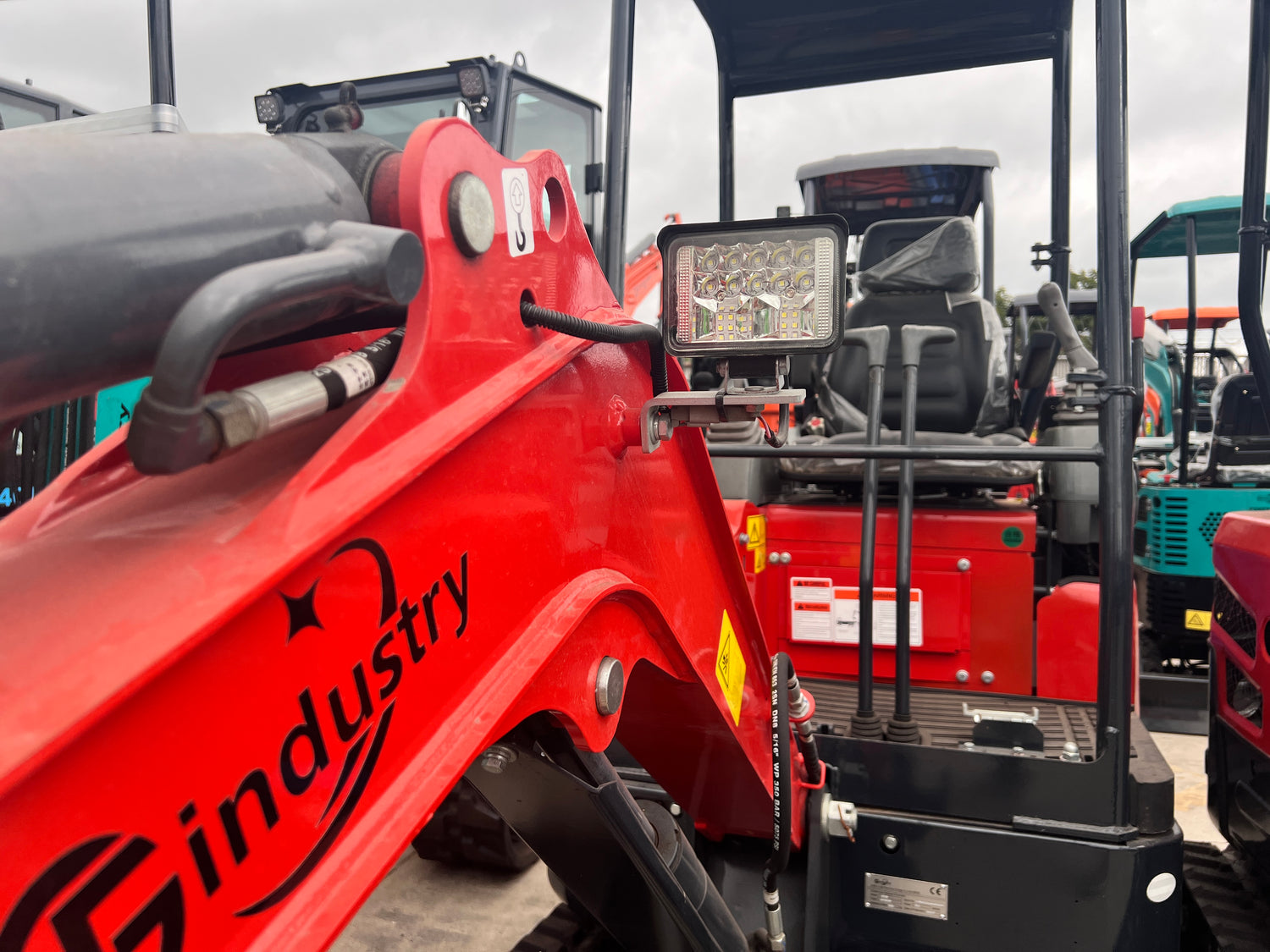

LED Light

LED Light

Equipped to enhance your visibility

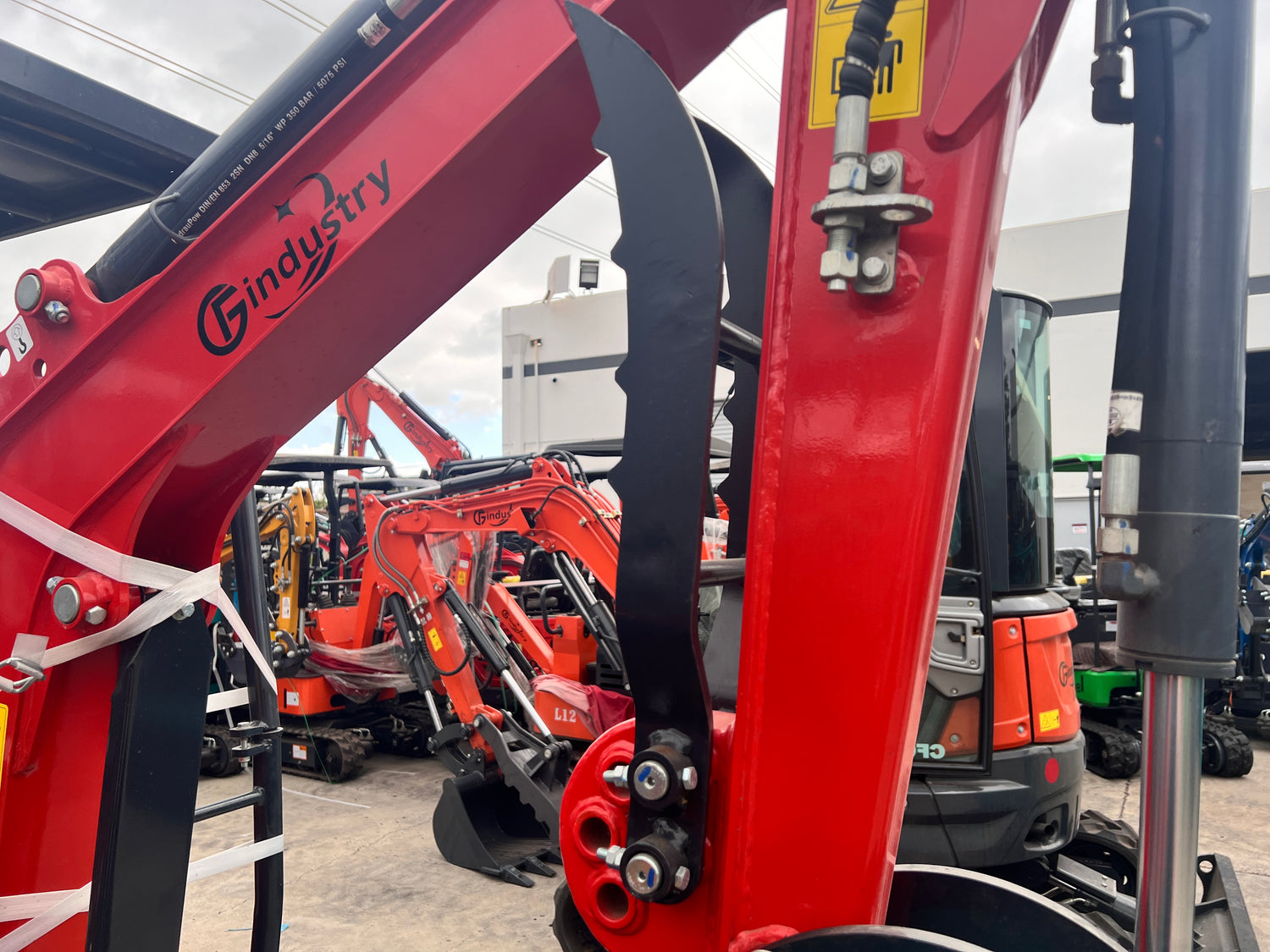

Mechanical Thumb

Mechanical Thumb

Hold various objects firmly for easier handling with the excavator
