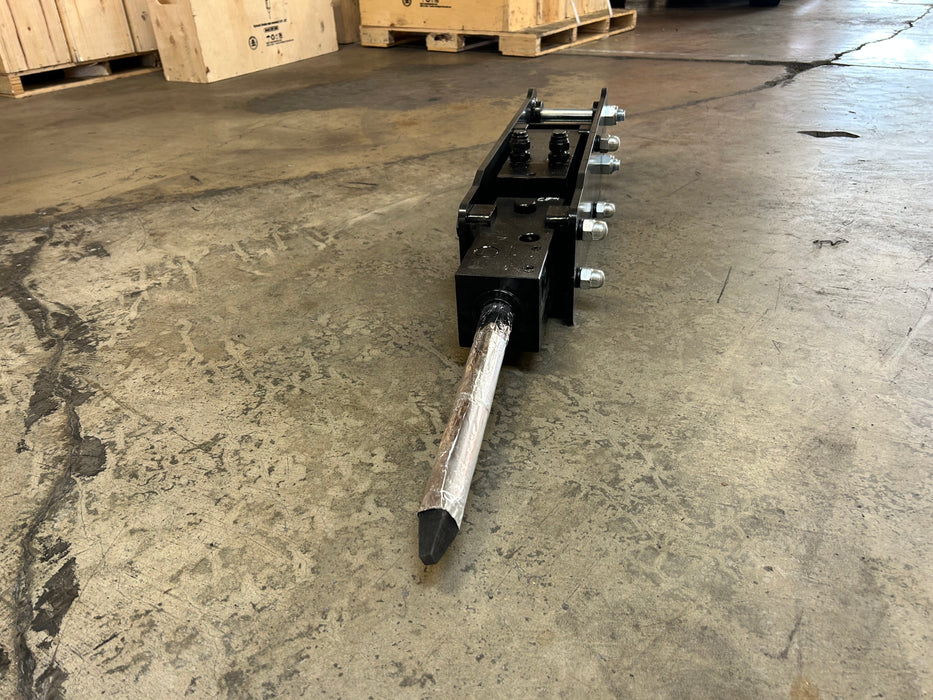

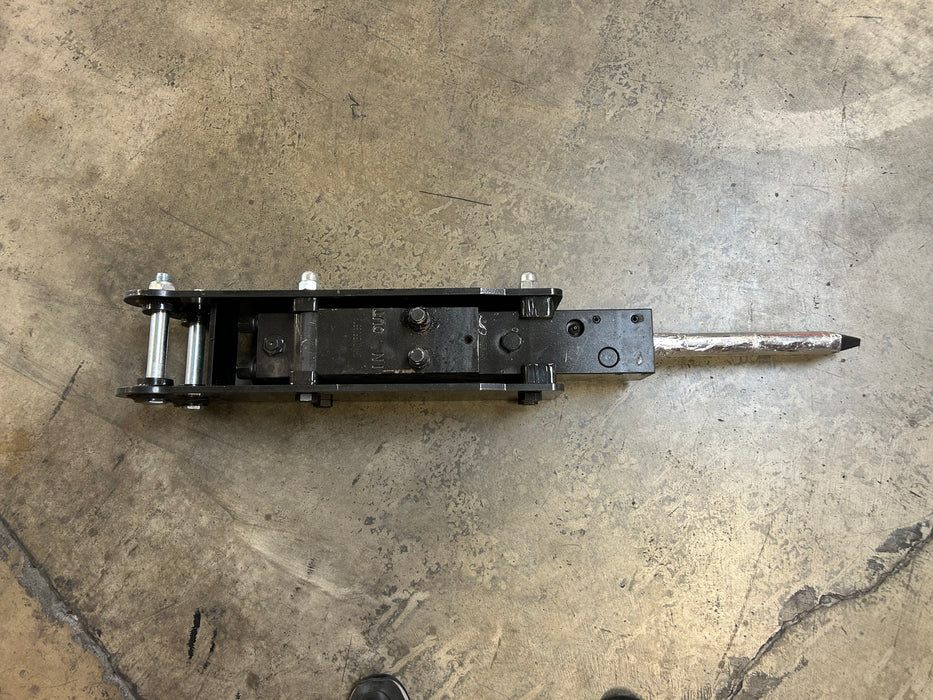

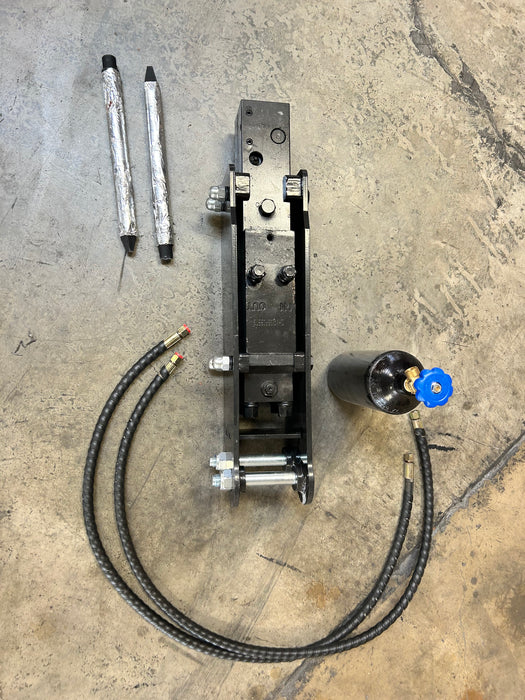

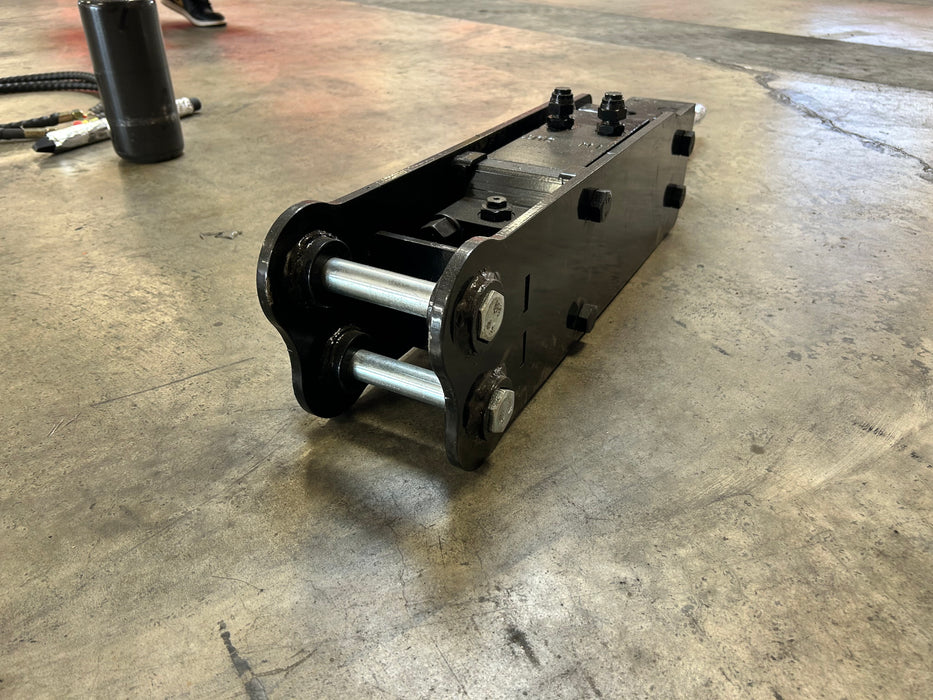

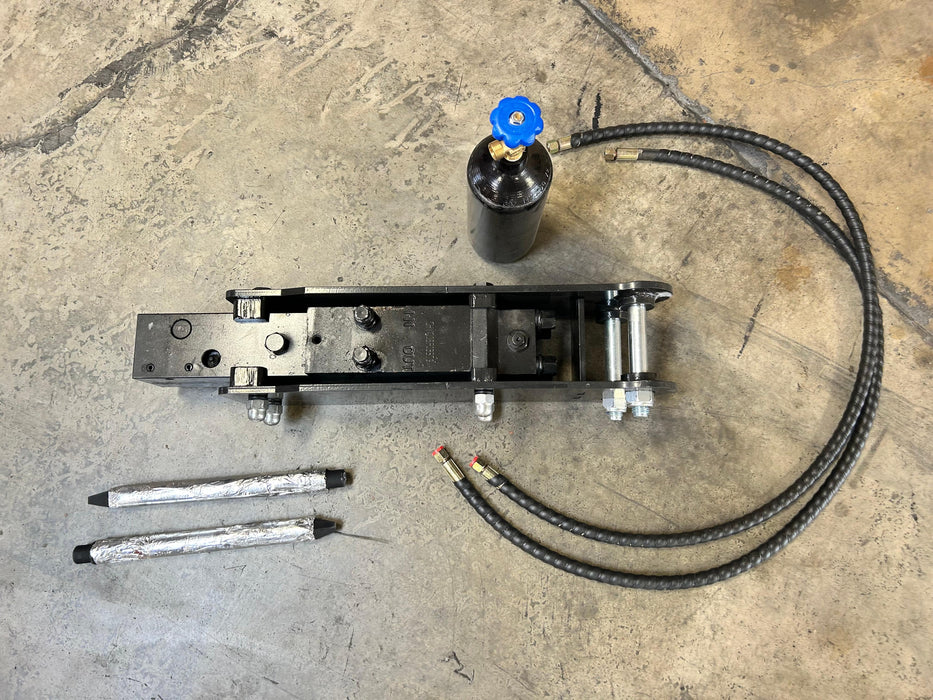

Break concrete, asphalt, stone, and hard ground with this hydraulic breaker for compatible 1–2 ton mini excavators. Its compact steel housing and hardened chisel support demolition work in confined areas.

• Model: 12EX-HMR35ZJPSCB

• Carrier class: Compatible 1–2 ton mini excavators

• Weight: 172.3 lb (78.2 kg)

• Chisel length: 15 inches (381 mm)

• Listed impact energy: 28 kgf·m (approximately 275 J / 203 ft·lb)

• Hydraulic pressure: 1,160–1,740 psi (approximately 8–12 MPa)

• Hydraulic flow: 4–6.6 GPM (approximately 15.1–25 L/min)

• Dimensions excluding chisel: 31.9 × 16.6 × 9.5 inches

• Mounting pinhole diameter: 25 mm (0.98 in)

• Ear-to-ear spacing: 95 mm (3.74 in)

• Pin center spacing: 90 mm (3.54 in)

Before ordering: Confirm mounting dimensions, carrier suitability, auxiliary hydraulic flow, pressure, and return-line requirements.
