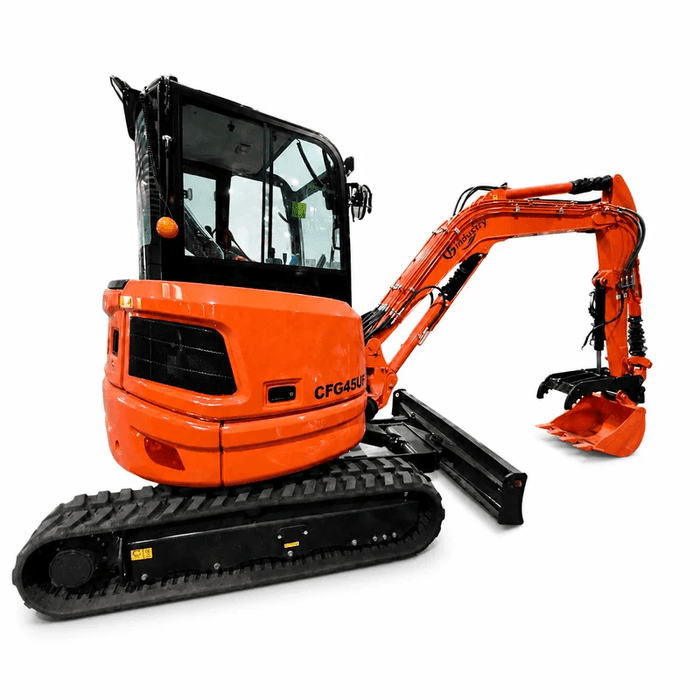

Operating Weight: 3.85 Ton (8,488 lbs)
Overall Length: 4,890 mm (192.5 in)
Overall Width: 1,700 mm (67 in)
Overall Height: 2,555 mm (100.5 in)
Track Size: 300*55*84 (Width*Pitch Length*Links) (mm*mm*# of links)

• Max Digging Depth: 3,120 mm (122.8 in)
• Max Digging Height: 4,925 mm (193.9 in)
• Max Dumping Height: 3,400 mm (133.9 in)
• Max Reach at Ground: 5,390 mm (212.2 in)
• Blade Width: 1,700 mm (67 in)
• Blade Height: 366 mm (14.4 in)
• Blade Max Lifting Height: 337 mm (13.3 in)
• Blade Max Drop Depth: 376 mm (14.8 in)

Engine Brand: Kubota
Fuel Type: Diesel
Model: D1703
Rated Power: 18.8 kW (24.4 HP) @ 2,200 RPM
Displacement: 1,647 cc
Fuel Capacity: 40 L (10.6 gal)
Hydraulic Flow Rate: 88 L/min (23.2 GPM)
Hydraulic Pressure: 24.5 MPa (3,553 PSI)
Hydraulic Tank Capacity: 41 L (10.8 gal)

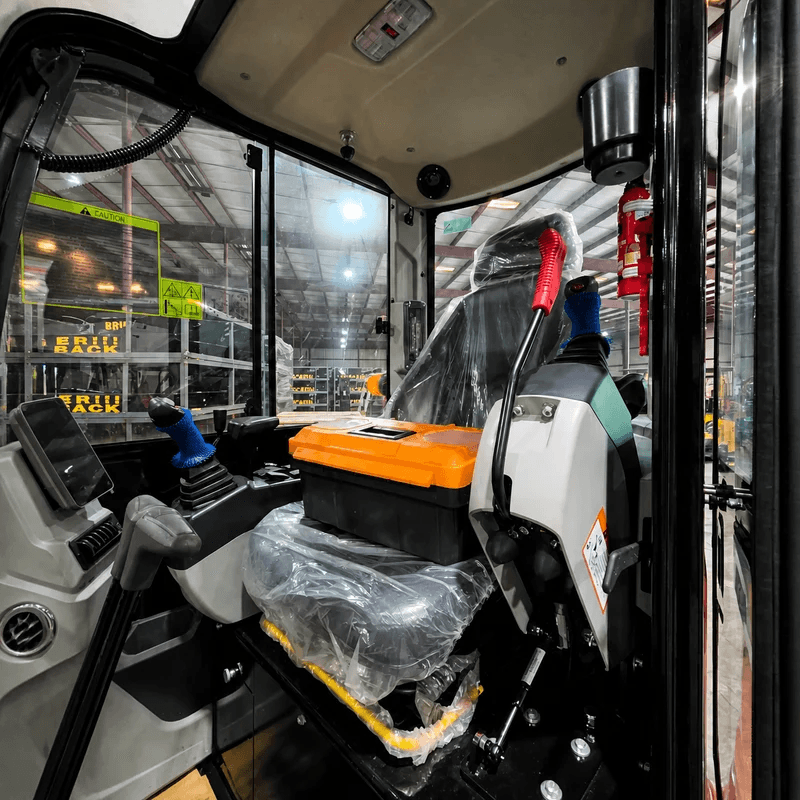

• Enclosed Cab

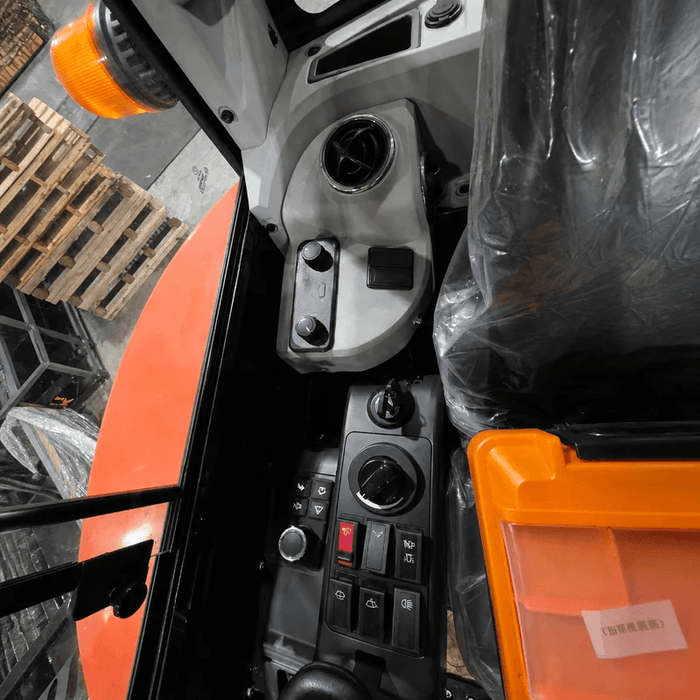

• Air Conditioning / Heater

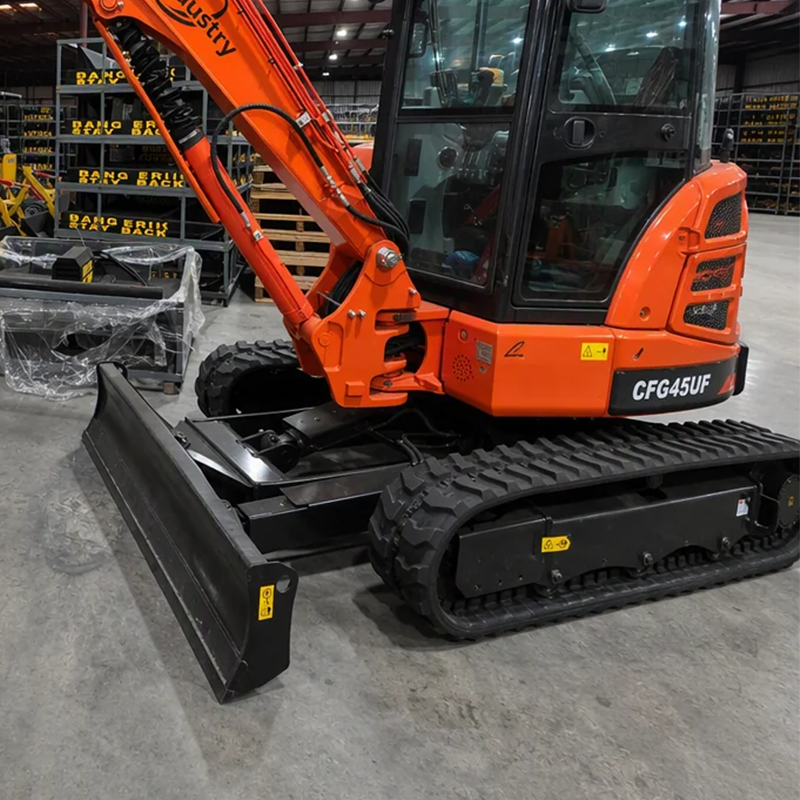

• 4-Way Dozer Blade

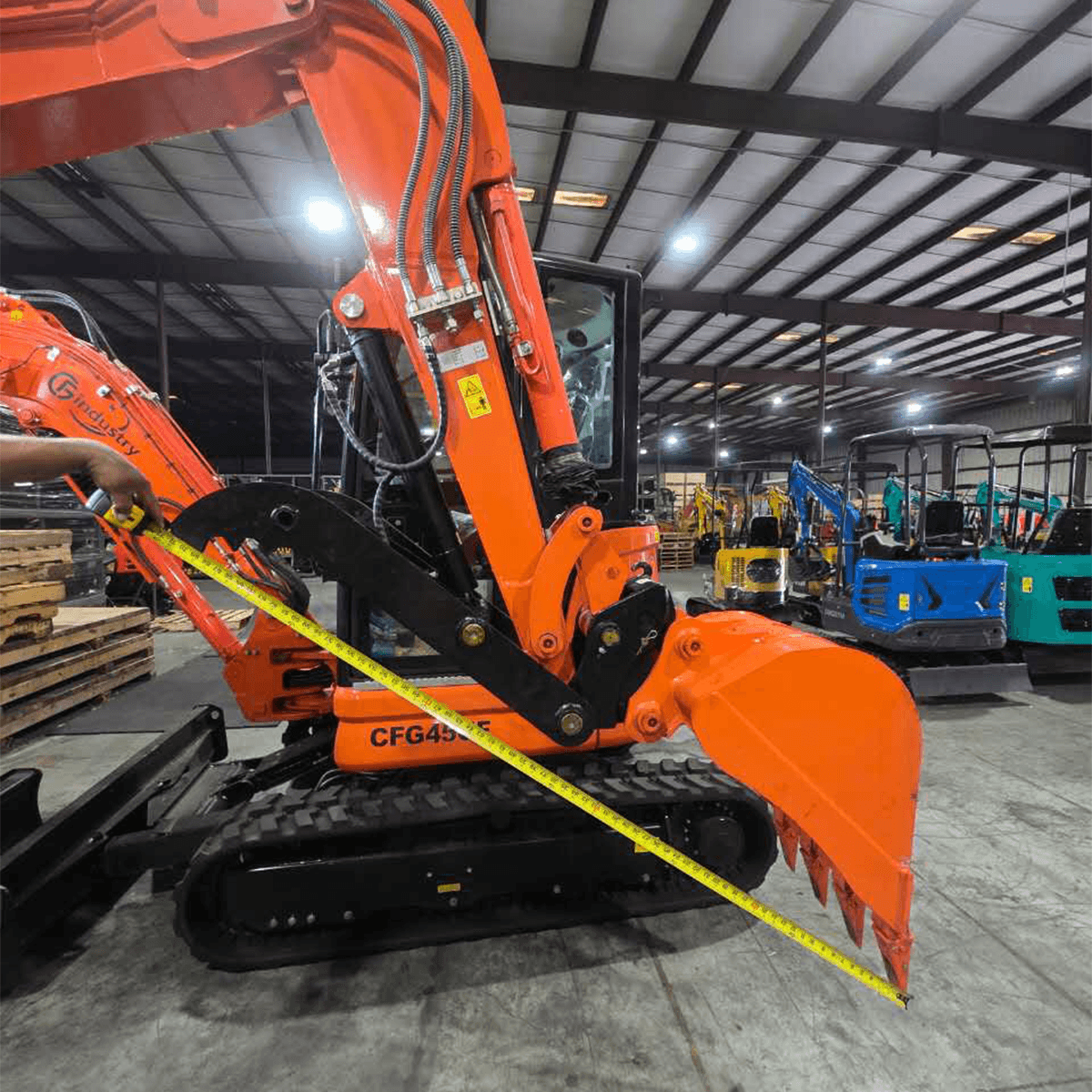

• Hydraulic Thumb

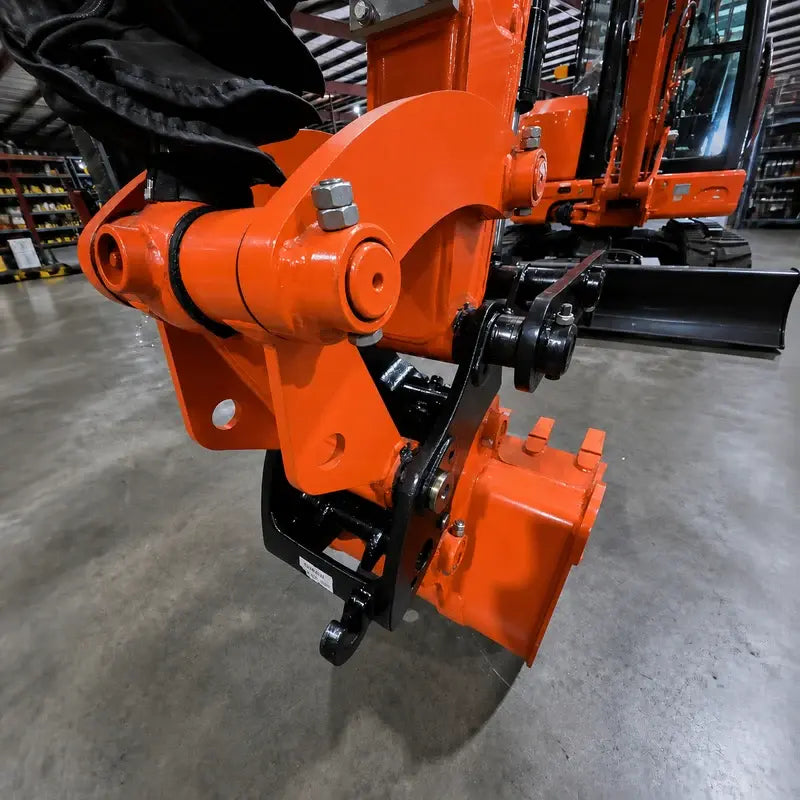

• Quick Attach
• LED Work Lights
• Pilot Control
• Side Swing Boom
• AM / FM Radio
